Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers.
Highlights
Product Details

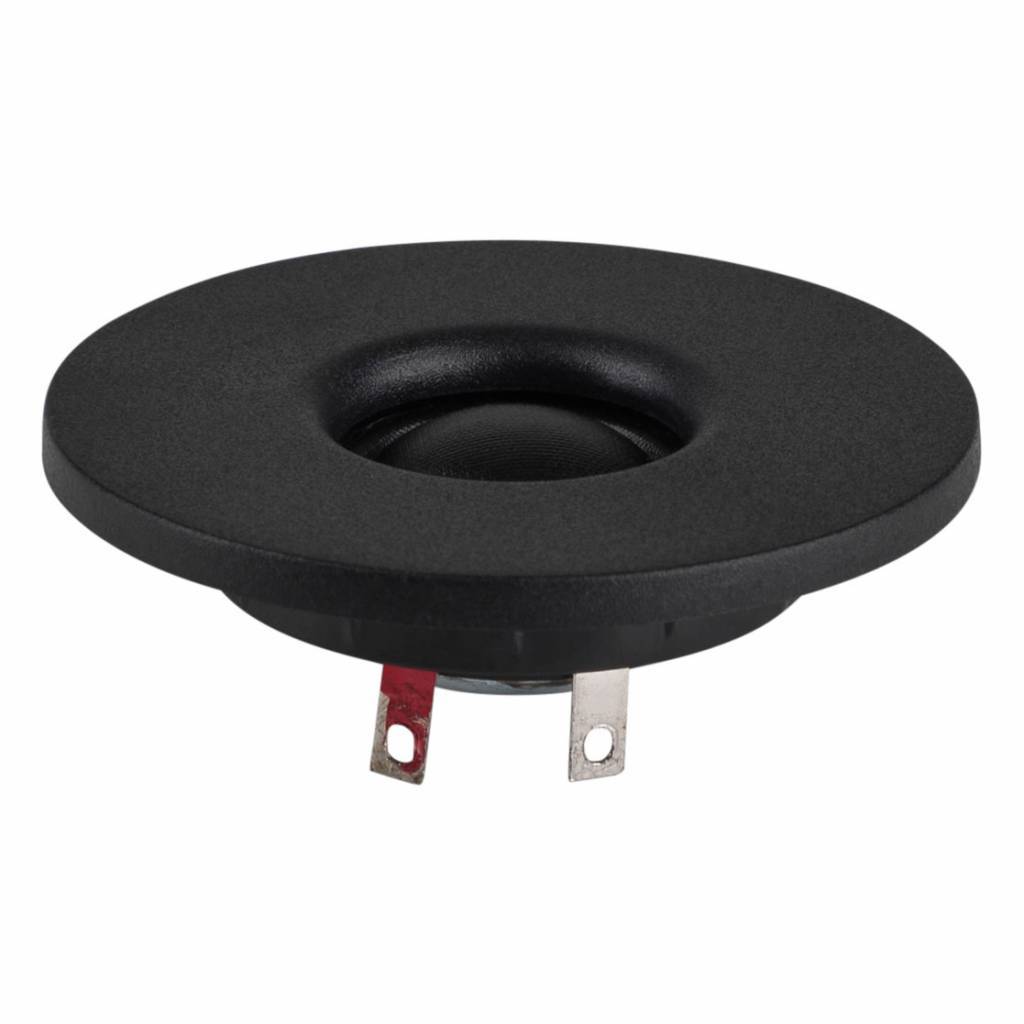

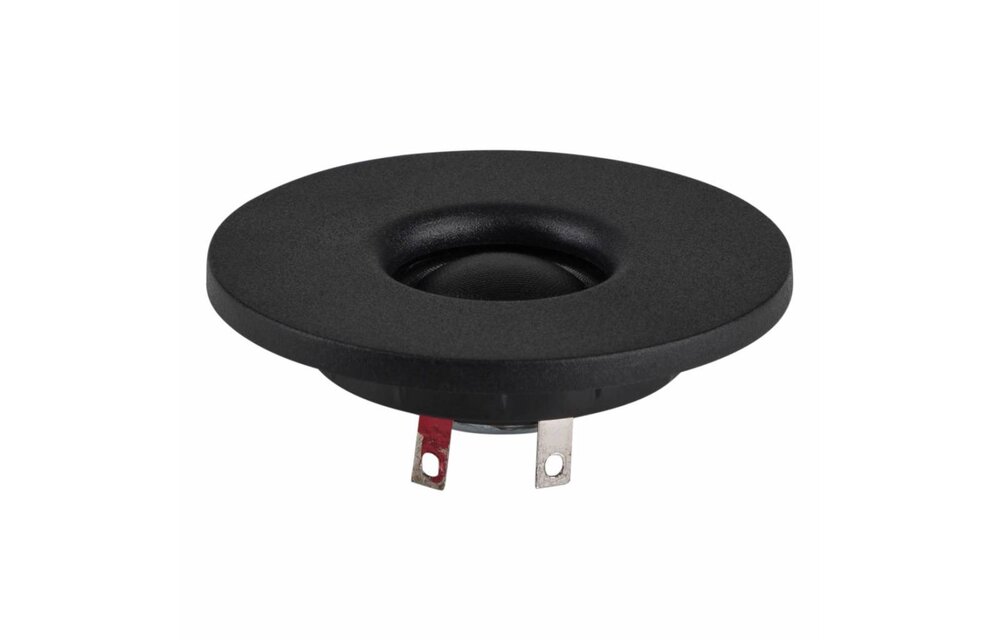

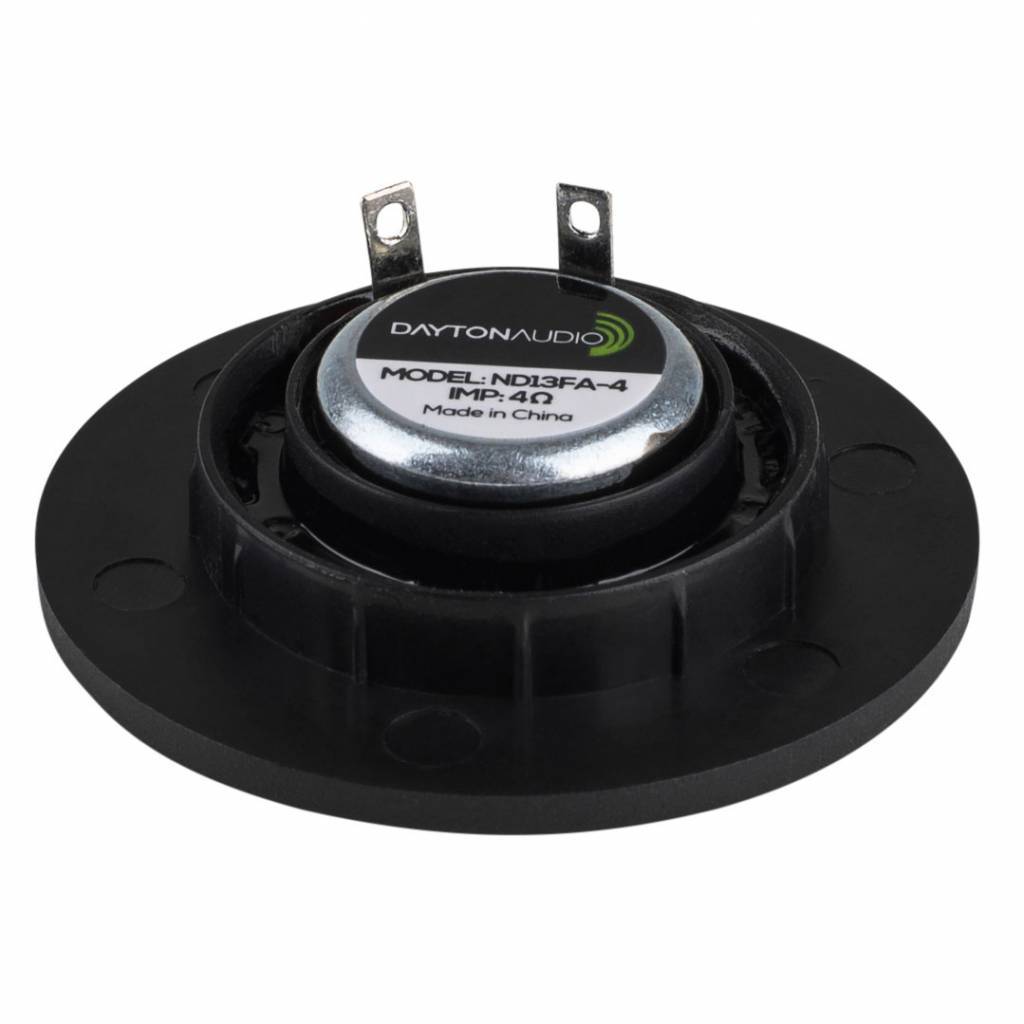

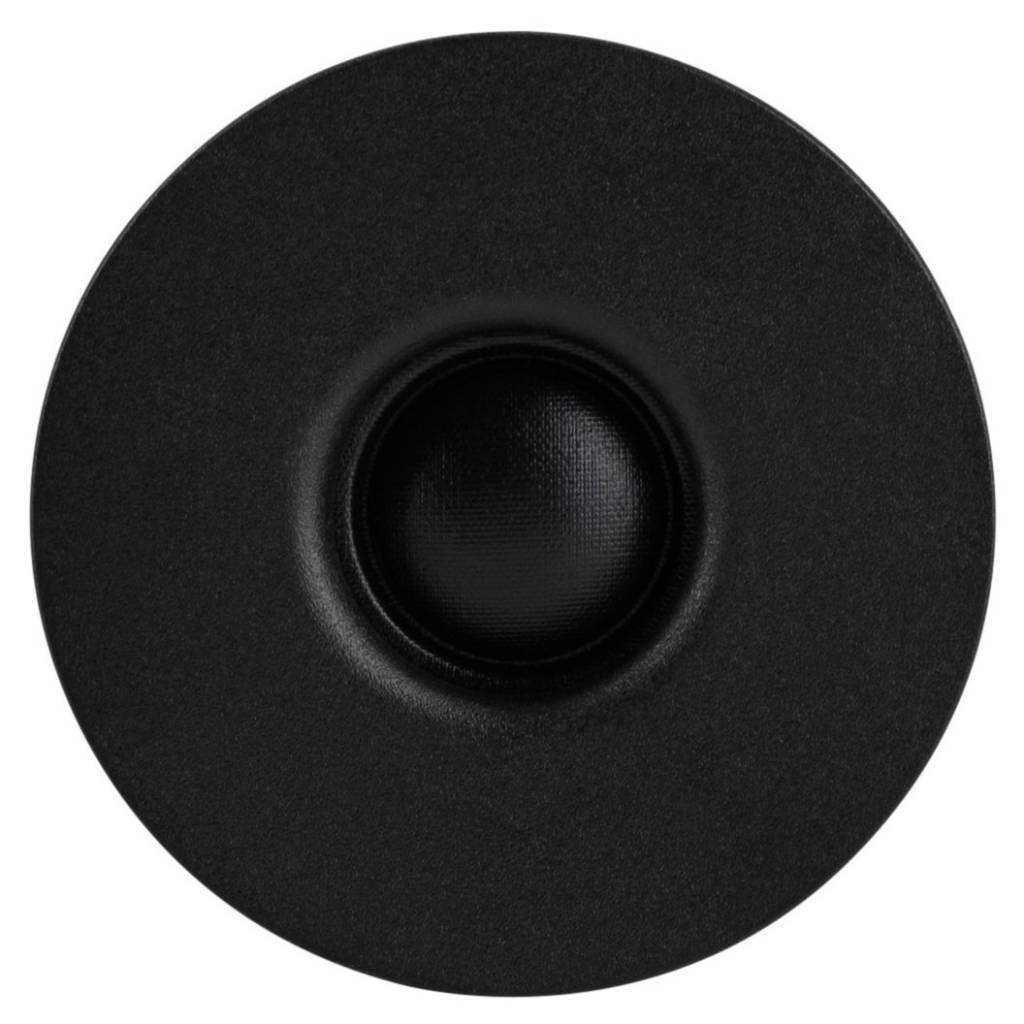

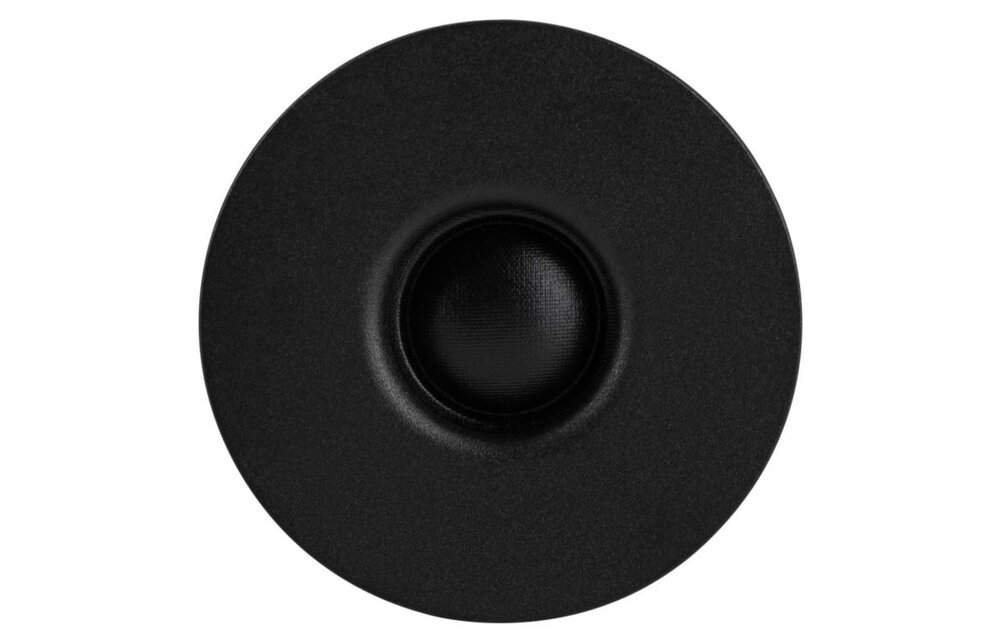

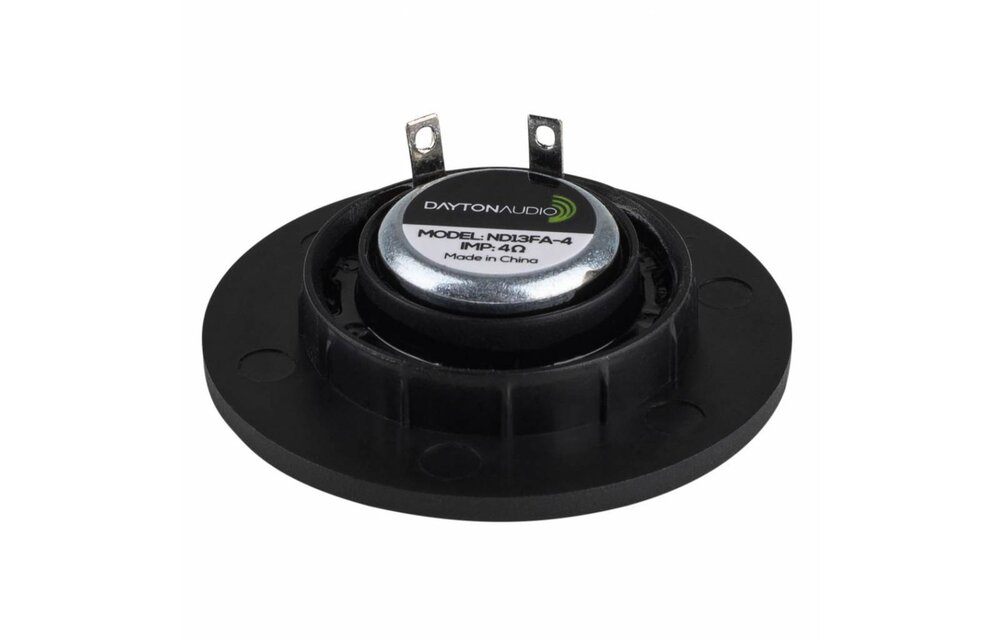

Dayton Audio ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm
The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1/2" |
Impedance | 4 ohms |
Power Handling (RMS) | 20 Watts |
Frequency Response | 4,500 to 20,000 Hz |
Sensitivity | 88.5 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 2832 Hz |
DC Resistance (Re) | 3.07 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 0.93 |
Electromagnetic Q (Qes) | 8.44 |
Total Q (Qts) | 0.84 |
MOUNTING INFORMATION
Overall Outside Diameter | 1.77" |
Cutout Diameter | 1.16" |
Depth | 0.45" |
