Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter.
Highlights
Product Details

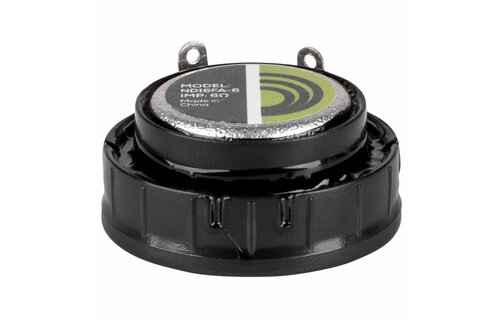

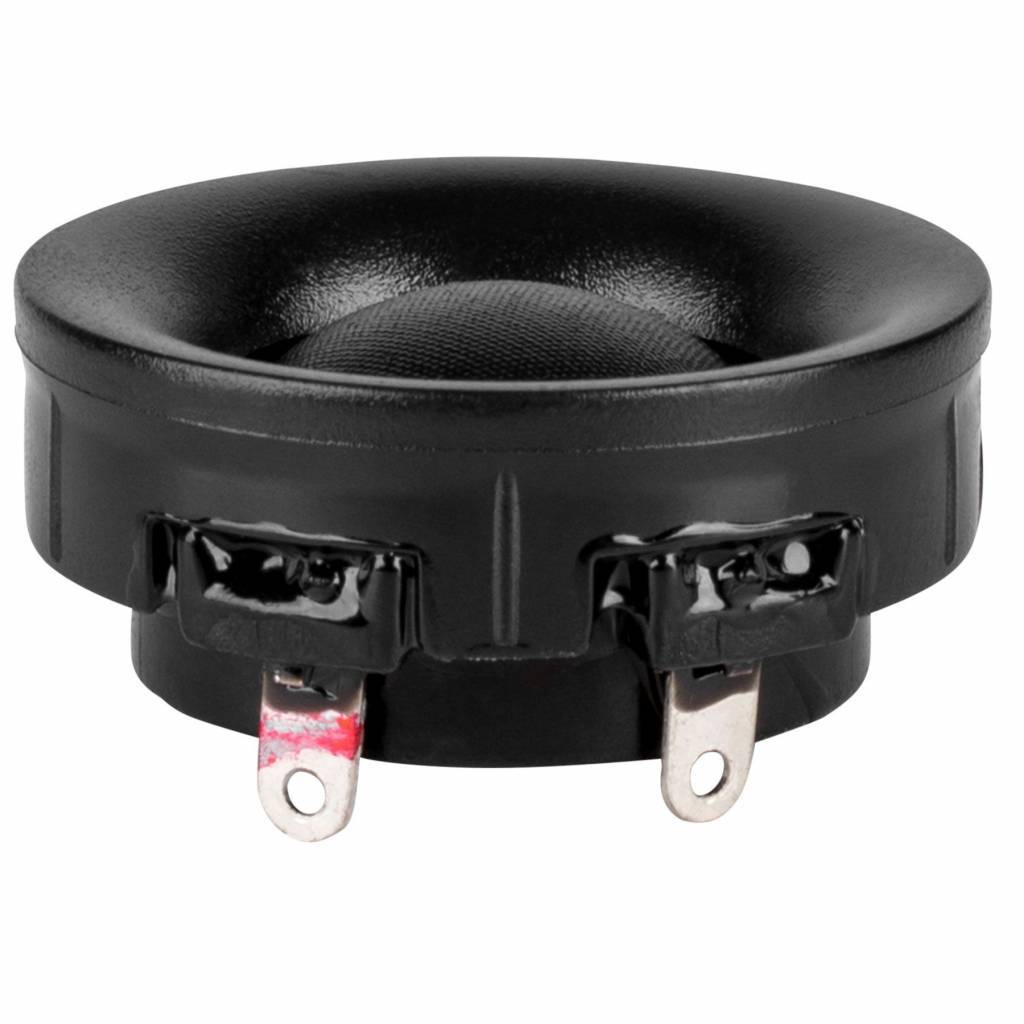

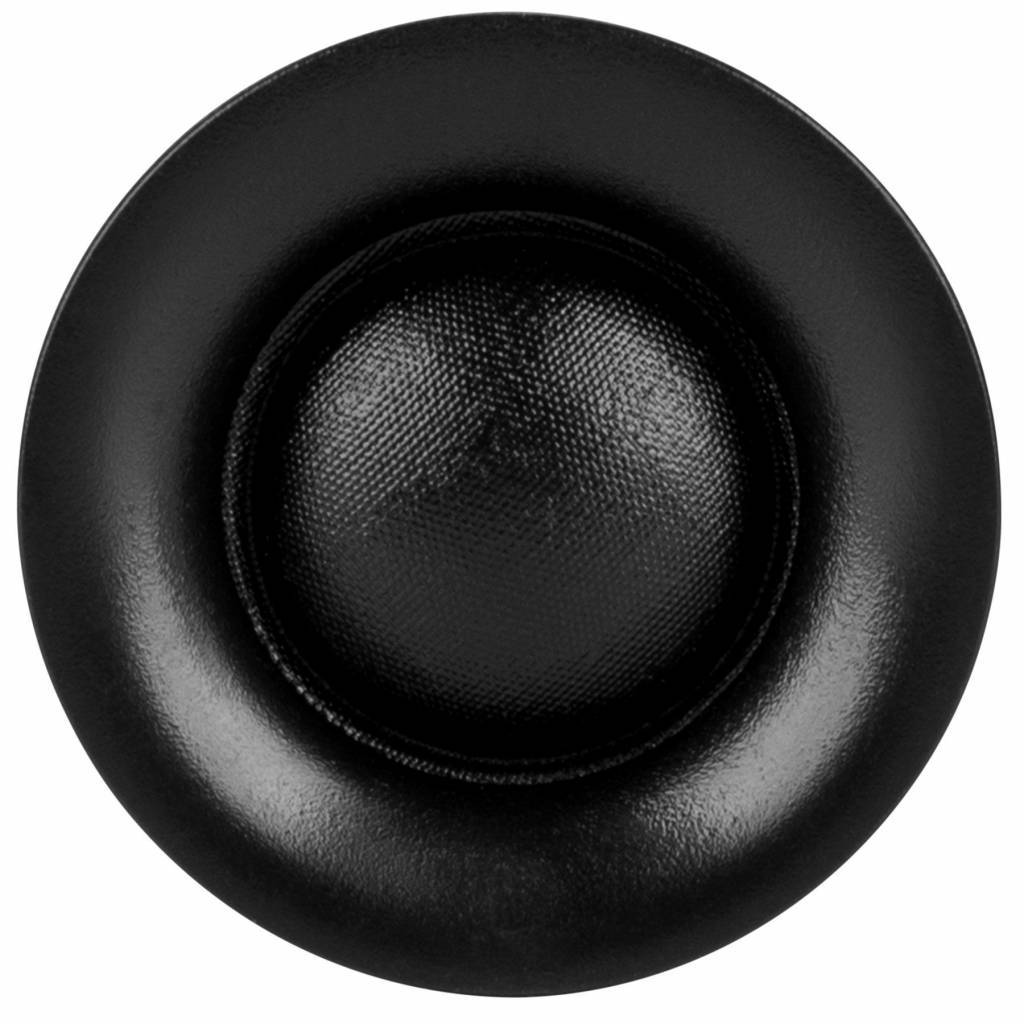

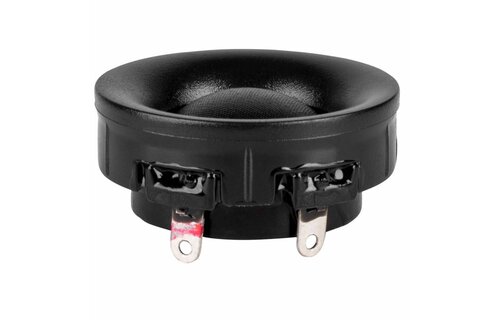

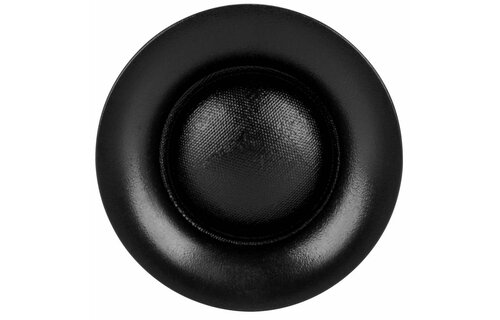

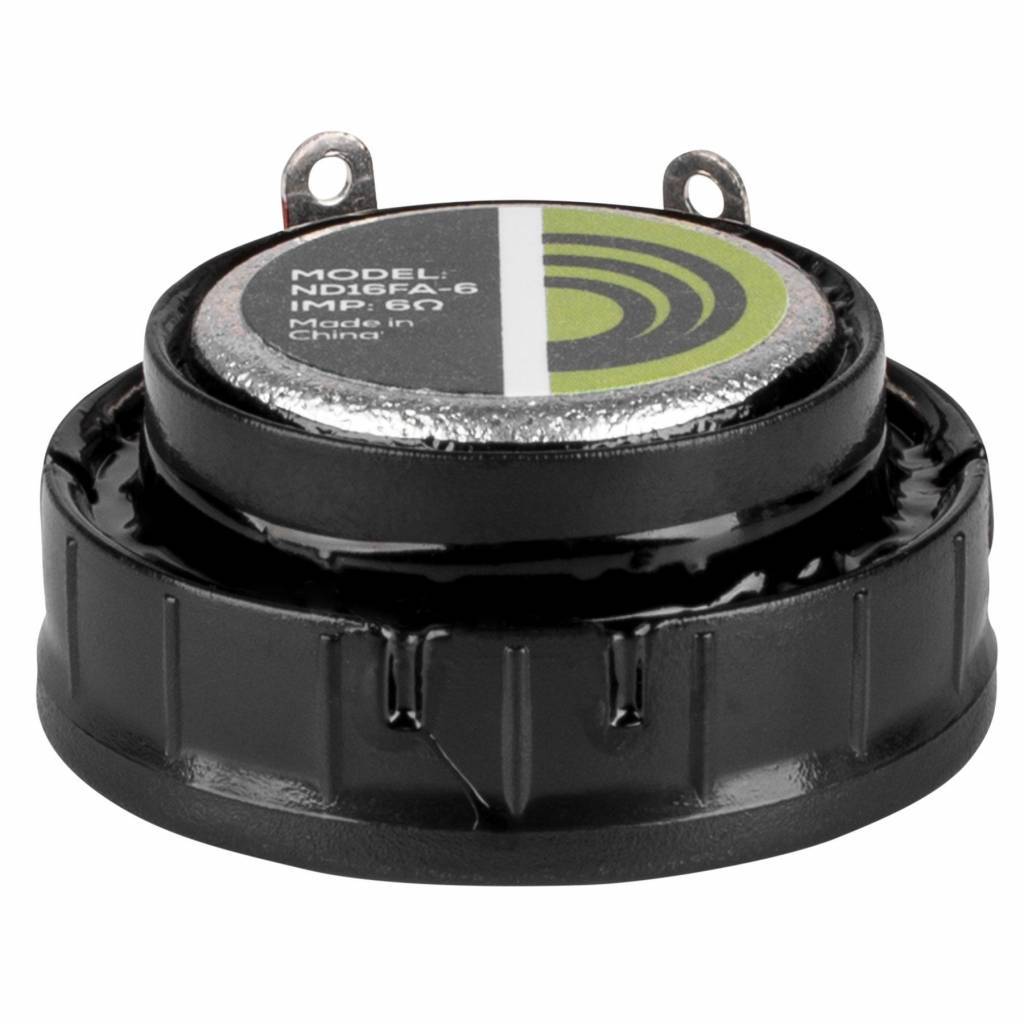

Dayton Audio ND16FA-6 5/8" Neodymium Dome Tweeter
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays-- they have the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 5/8" |
Impedance | 6 ohms |
Power Handling (RMS) | 10 Watts |
Frequency Response | 3,500 to 27,000 Hz |
Sensitivity | 89 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 2,283 Hz |
DC Resistance (Re) | 5.00 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
MOUNTING INFORMATION
Overall Outside Diameter | 1.28" |
Cutout Diameter | 1" |
Depth | 0.57" |
