This versatile tweeter is a huge step above the average "budget" tweeter. It has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers.
Highlights
Product Details

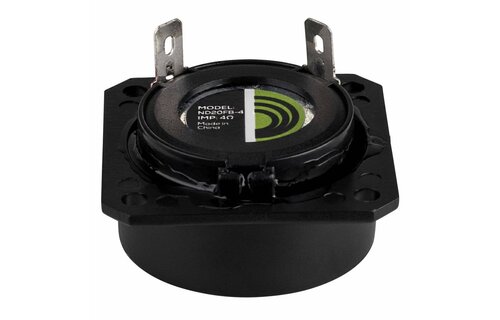

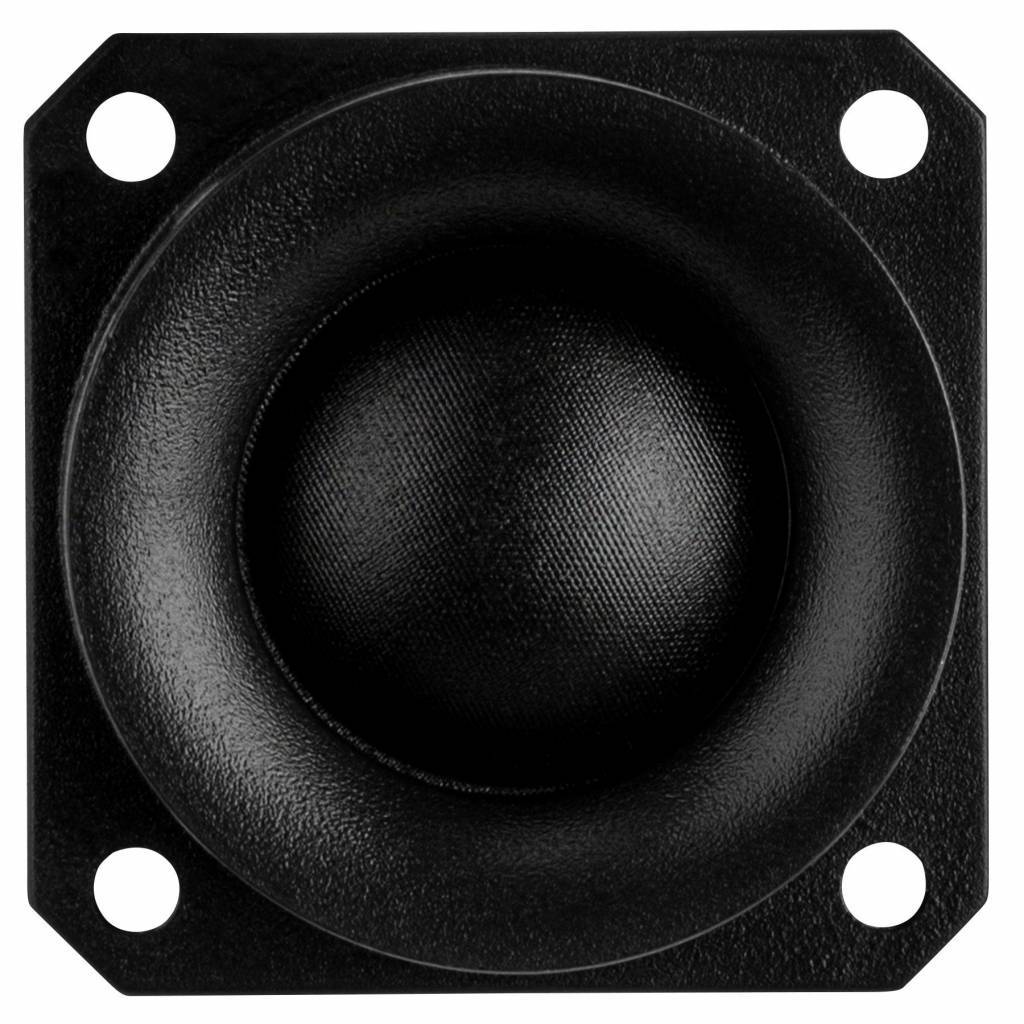

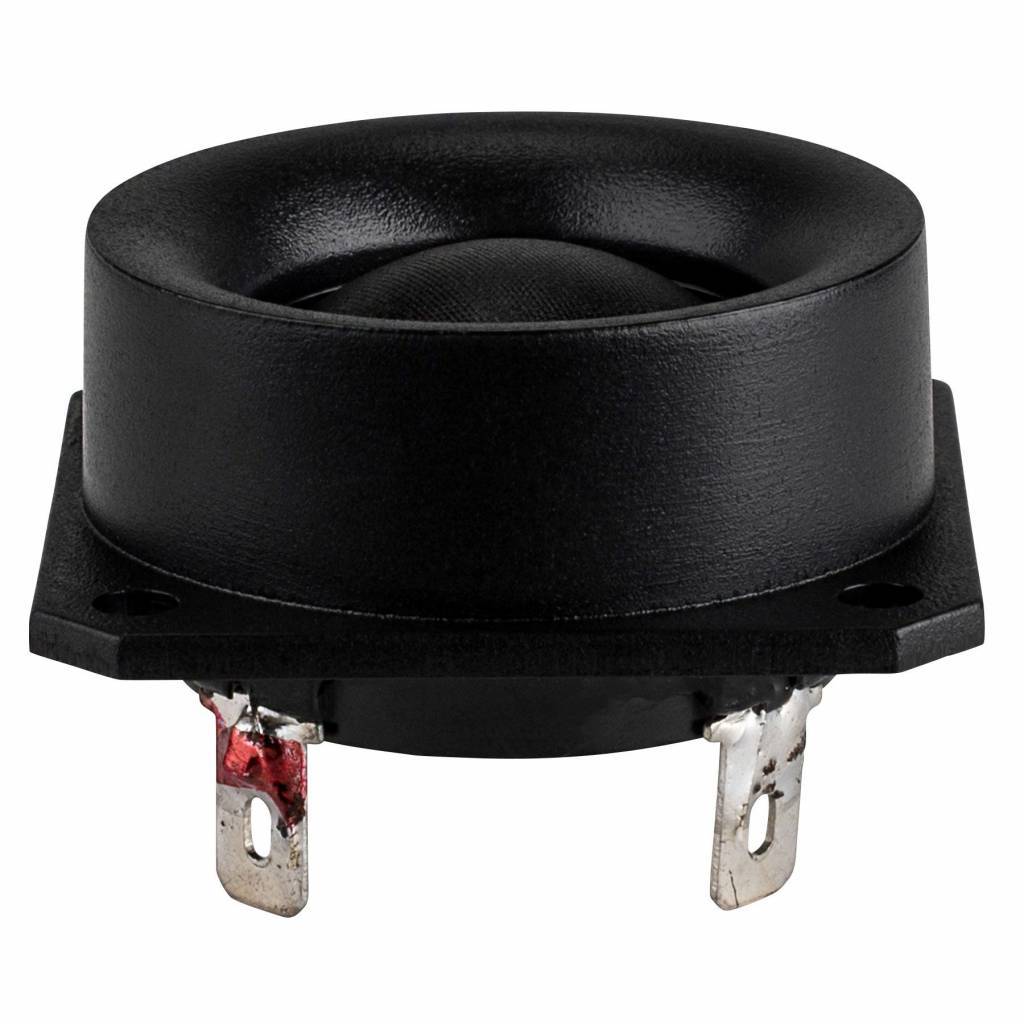

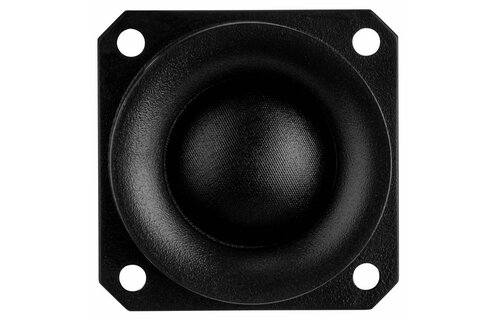

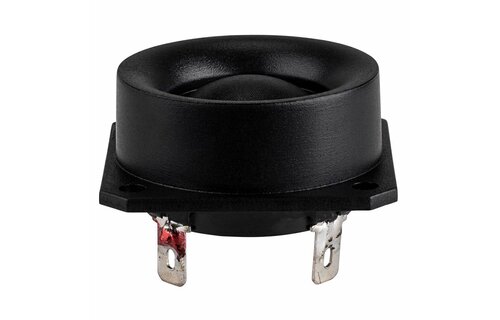

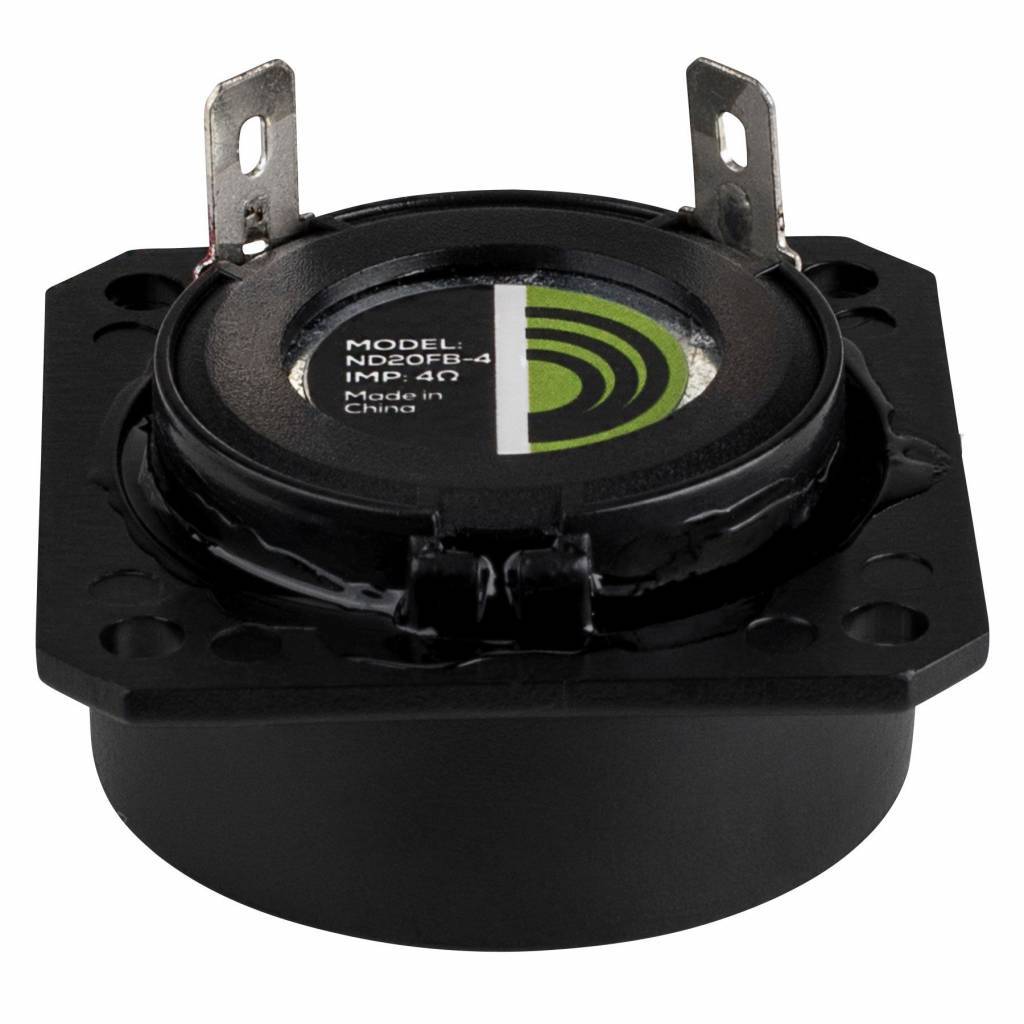

Dayton Audio ND20FB-4 Rear-Mount 3/4" Neodymium Dome Tweeter
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimize comb filtering out to nearly 20 kHz. But its uses don't stop at line arrays-- it has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Or, use it in an A-pillar in your car as a great inexpensive component tweeter. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 3/4" |
Impedance | 4 ohms |
Power Handling (RMS) | 15 Watts |
Frequency Response | 3,500 to 25,000 Hz |
Sensitivity | 90 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 2,072 Hz |
DC Resistance (Re) | 3.20 ohms |
Voice Coil Inductance (Le) | 0.03 mH |
Mechanical Q (Qms) | 2.08 |
Electromagnetic Q (Qes) | 3.74 |
Total Q (Qts) | 1.33 |
MOUNTING INFORMATION
Overall Outside Diameter | 1.54" x 1.54" |
Depth | 0.75" |
