The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.
Highlights
Product Details

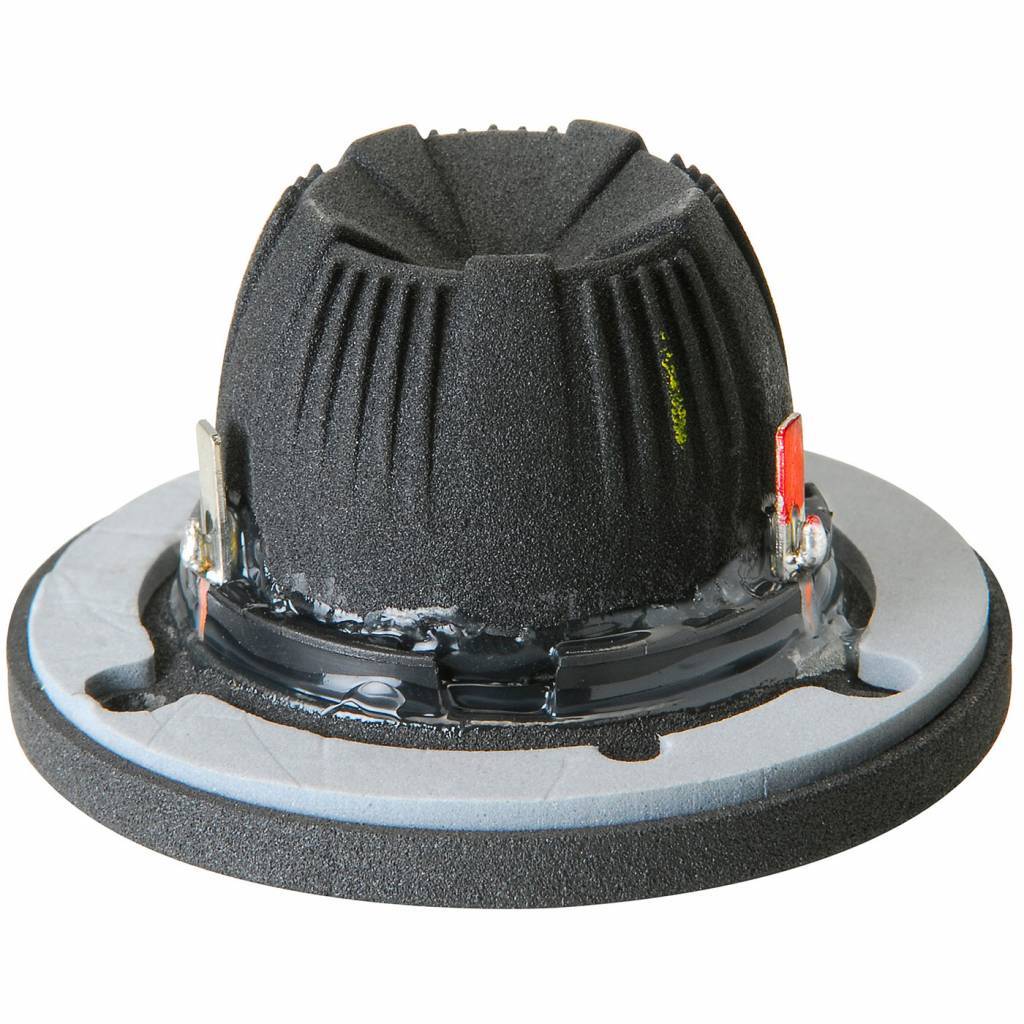

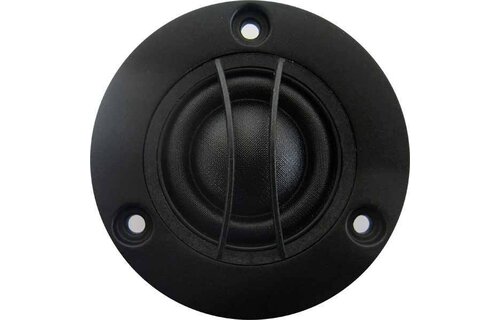

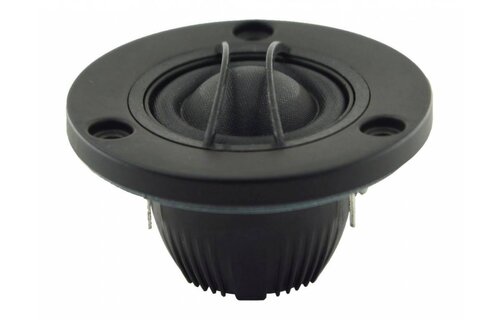

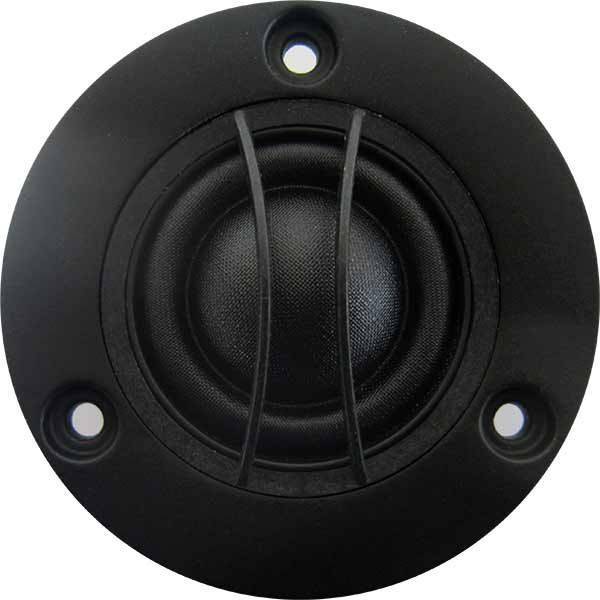

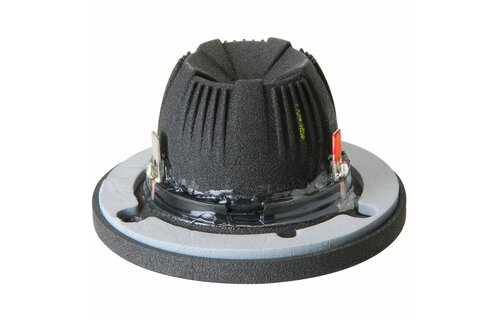

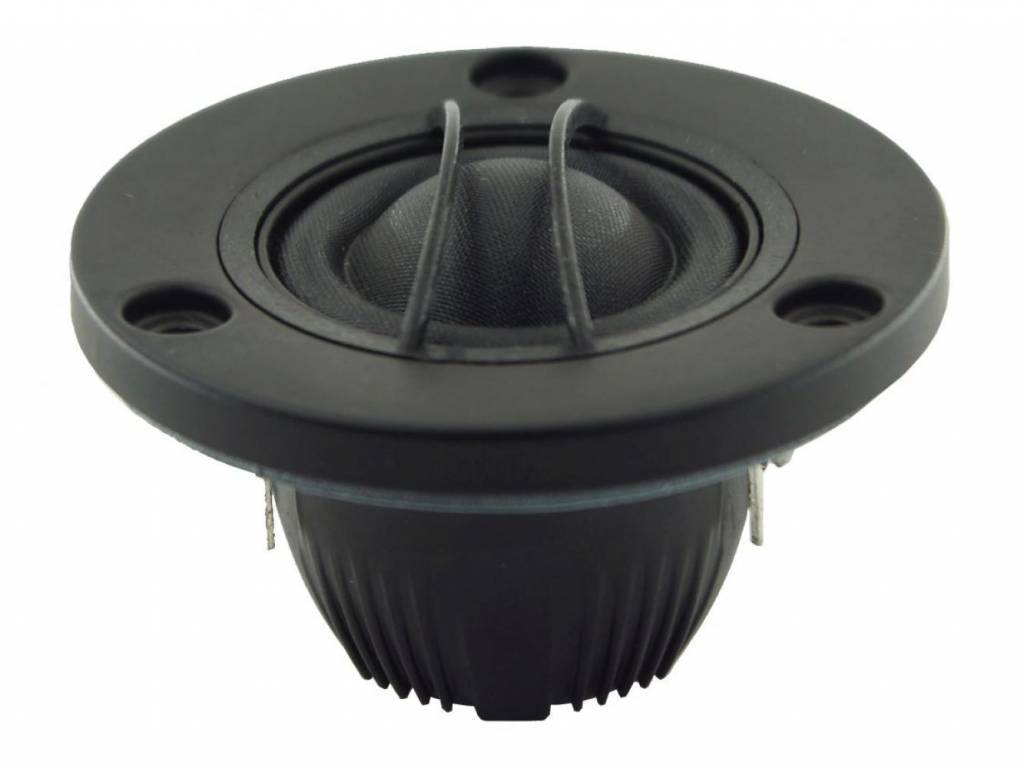

Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter
The 19 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 3/4" |
Impedance | 4 ohms |
Power Handling (RMS) | 80 Watts |
Frequency Response | 816 to 25,000 Hz |
Sensitivity | 90 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 816 Hz |
DC Resistance (Re) | 2.80 ohms |
Voice Coil Inductance (Le) | 0.01 mH |
Mechanical Q (Qms) | 4.60 |
Electromagnetic Q (Qes) | 1.48 |
Total Q (Qts) | 1.12 |
MOUNTING INFORMATION
Overall Outside Diameter | 2.04" |
Cutout Diameter | 1.50" |
Depth | 1.14" |
