With a large radiating surface the HiVi RT1.3WE isodynamic tweeter is compatible with crossover points as low as 2,500 Hz while delivering impressive efficiency for its size. This planar tweeter is ideal for higher efficiency 2-way designs.
Highlights
Product Details

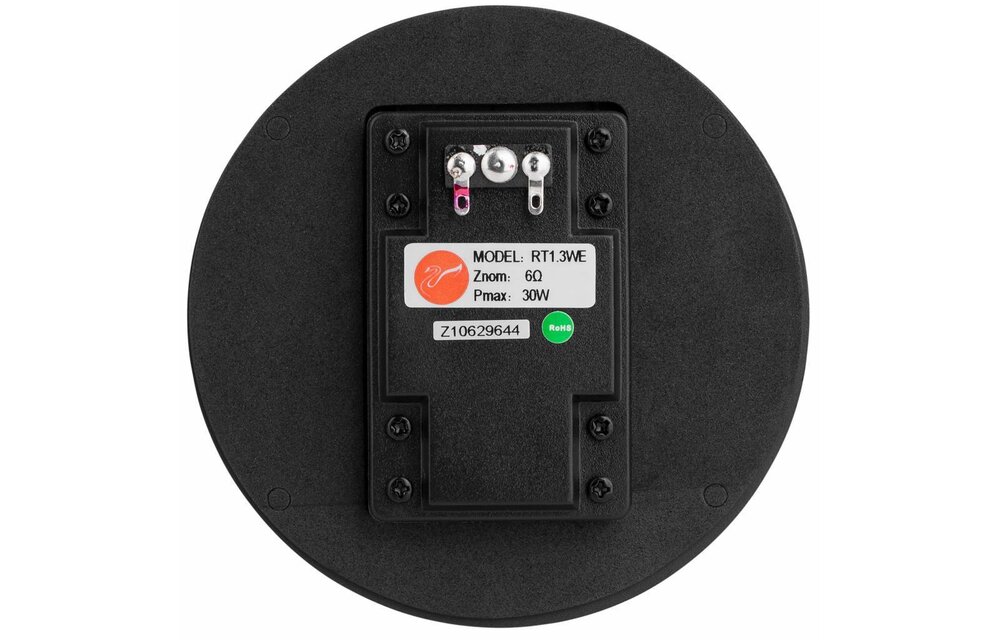

HiVi RT1.3WE Isodynamic Tweeter
This wide range planar tweeter features a large vibrating surface area for great dynamics and ease of sound reproduction. The radiating membrane is suspended within a large number of neodymium magnets, which provides a uniform driving force throughout the surface. The resulting high sensitivity is perfect for high-efficiency two-way single or multiple woofer designs.
PRODUCT SPECIFICATIONS
Tweeter Type | Planar |
Impedance | 6 ohms |
Power Handling (RMS) | 10 Watts |
Frequency Response | 2,500 to 40,000 Hz |
Sensitivity | 92 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
DC Resistance (Re) | 5.4 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 4.27" |
Cutout Diameter | 3.125" x 2" |
Depth | 0.82" |
