Highlights
- Soft low-damping rubber surround for improved transient response
- Shorting ring in-motor system for reduced distortion
- Vented pole piece for reduced compression
- Vented cast-aluminum chassis for optimum strength and low compression
- Shallow design (3-1/8" depth)
- Non-conducting fiberglass voice coil former for minimum damping
- CCAW voice coil for reduced moving mass
- Long-life silver lead-wire
Product details

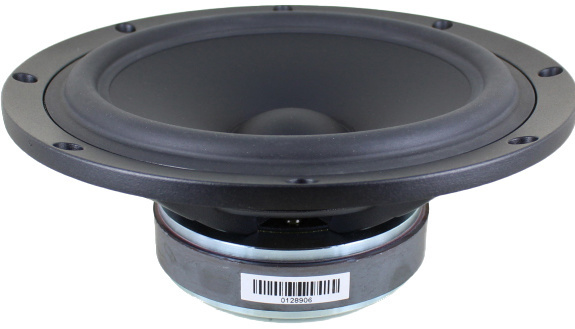

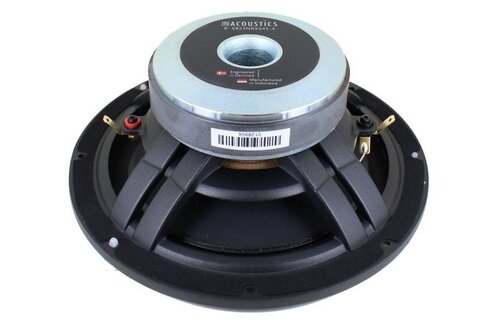

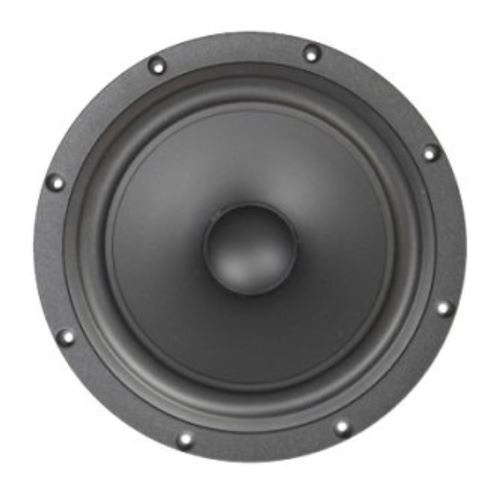

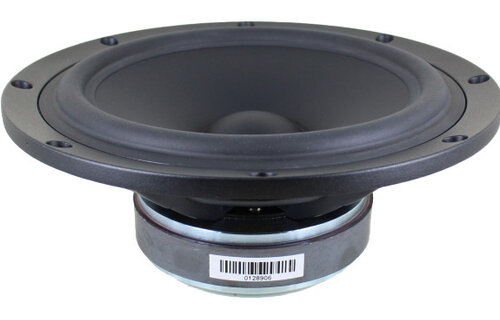

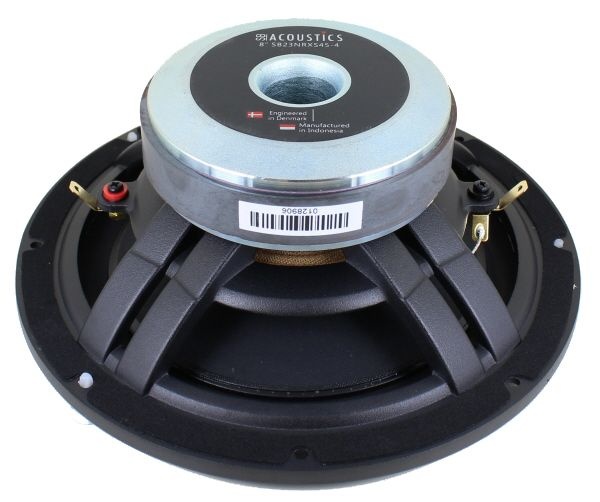

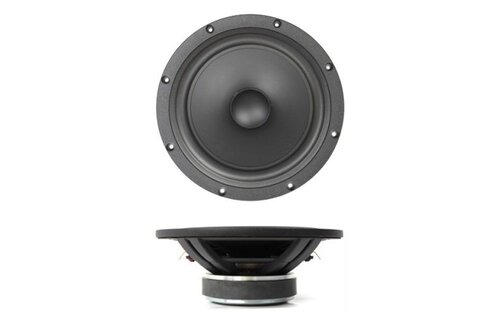

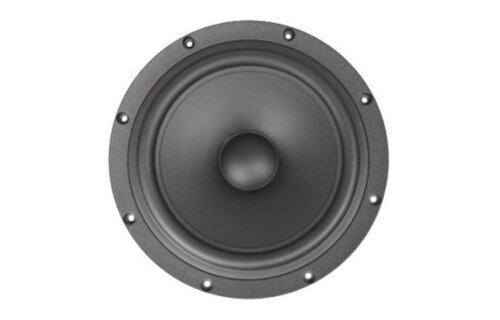

SB Acoustics SB23NRXS45-4 8" Woofer
The SB Acoustics SB23NRXS45-4 woofer has a proprietary composition paper cone made in-house and a rigid cast frame with ventilated spider and large vented pole piece. A low damping rubber surround assures decent midrange reproduction. A shorting ring is used in the motor to reduce intermodulation distortion and improve inductance symmetry. This woofer has a large 1.75" diameter voice coil with 6.5mm x-max on a non-inductive fiberglass former.
