    Revelator D2904/710002 1" Coated Textile Dome Tweeter

    € 214,83€ 259,95 2 In stock
    The Scan-speak D2904-710002 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.

    The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth ro... Show more
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping
    • In-house technical support

    Product description

    Highlights

    • 1" Coated Textile Diaphragm
    • Patented Symmetrical Drive (SD-2) motor
    • Non Resonant Alu Rear Chamber
    • Large Roll Surround for Wide Dispersion
    • Large Ring Neo Magnet for High Output
    • Silver Anodized Machined Alu Face Plate



    Product details

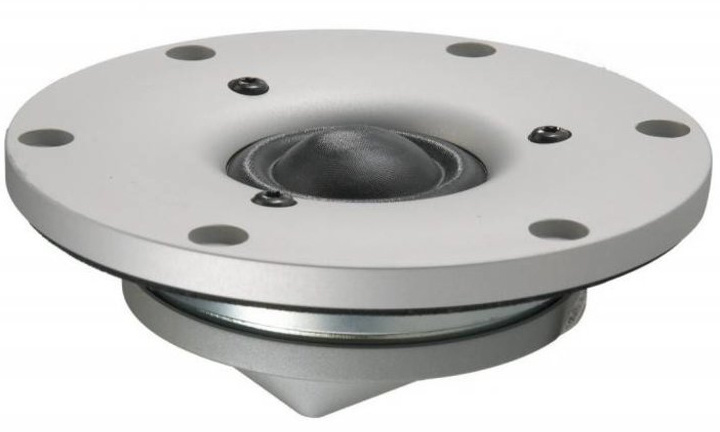

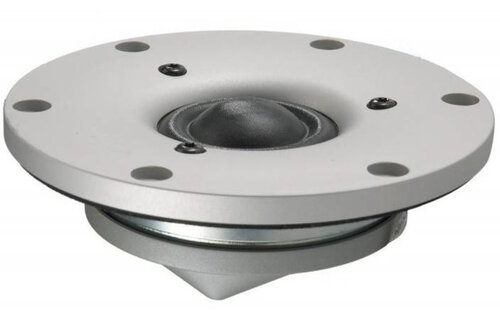

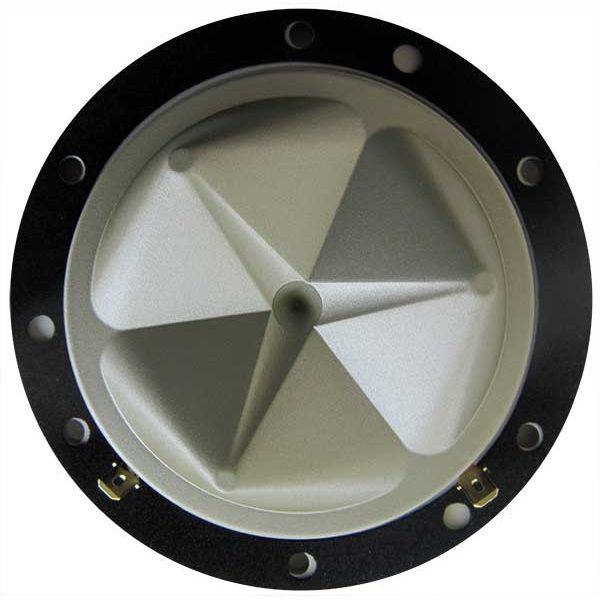

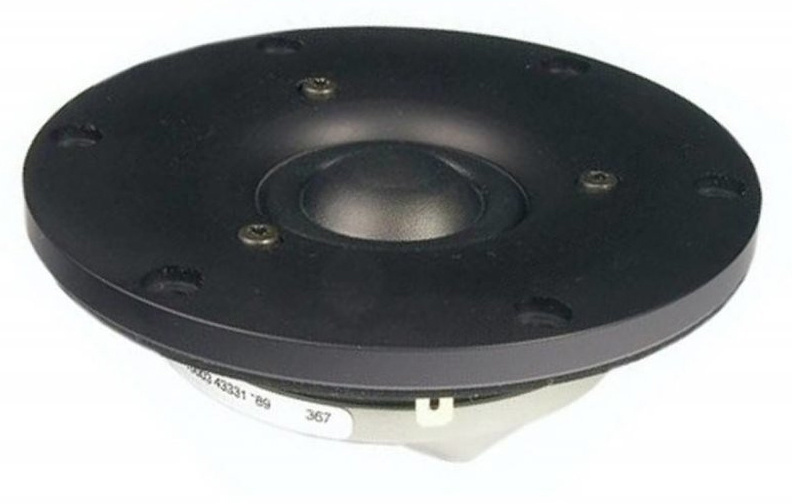

    Scan-Speak Revelator D2904/710002 1" Coated Textile Dome Tweeter



    The Scan-speak D2904-710002 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.



    The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth roll off on the low end, making this tweeter an excellent choice for simple slopes. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



    Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.23 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.4 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2

    Specifications

    Article number
    D2904/710002

    Reviews

    0 from 5Based on 0 reviews
    Create your own review

    There are no reviews written yet about this product..

    Revelator D2904/710002 1" Coated Textile Dome Tweeter
    € 214,83
    € 259,95
    Revelator D2904/710002 1" Coated Textile Dome Tweeter
    D2904/710002
    2 In stock
