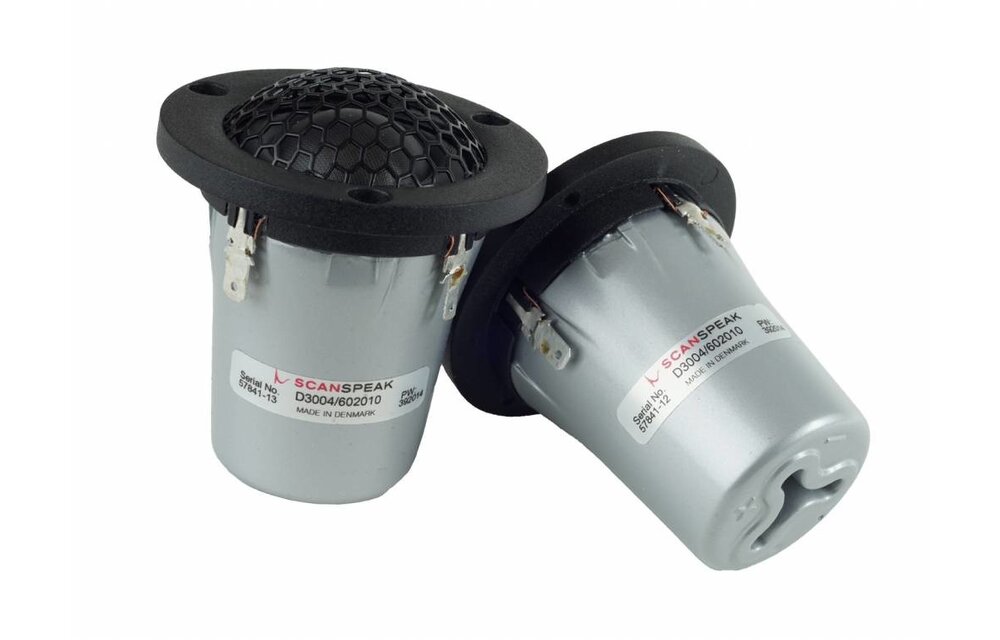

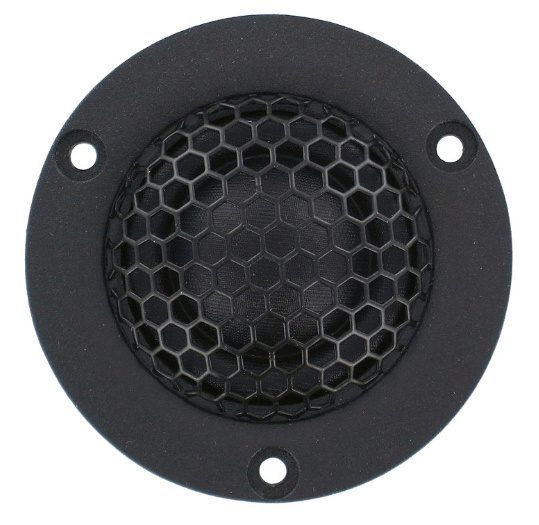

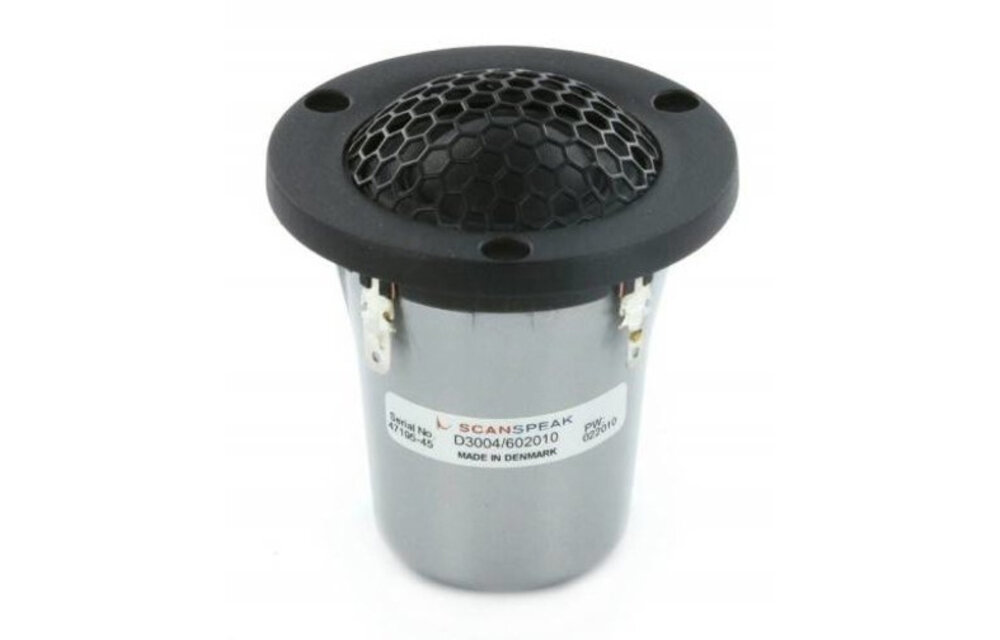

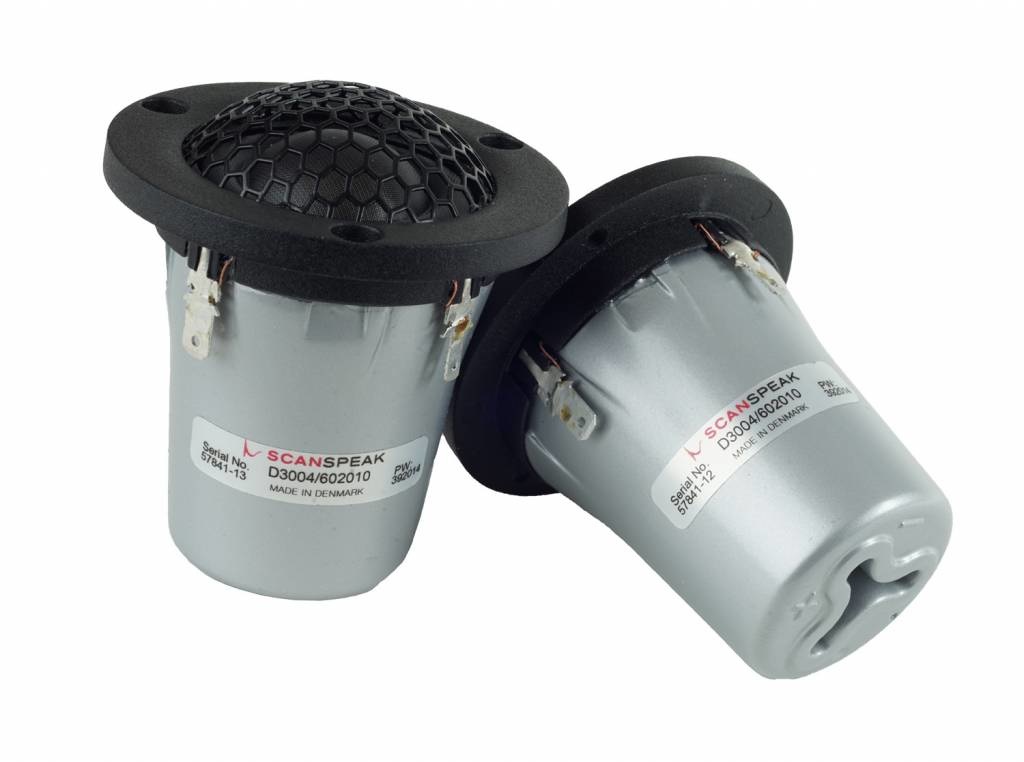

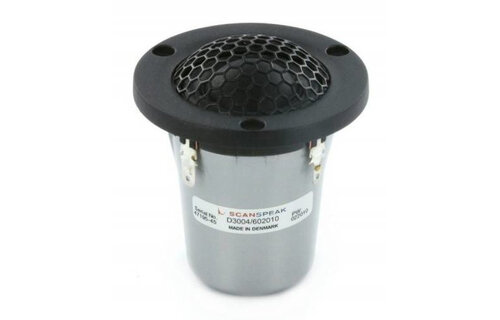

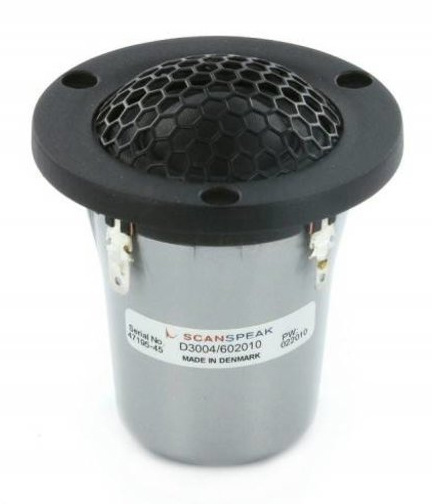

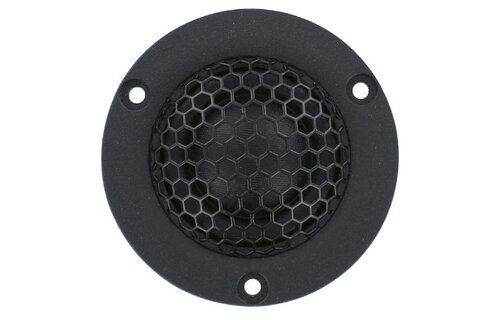

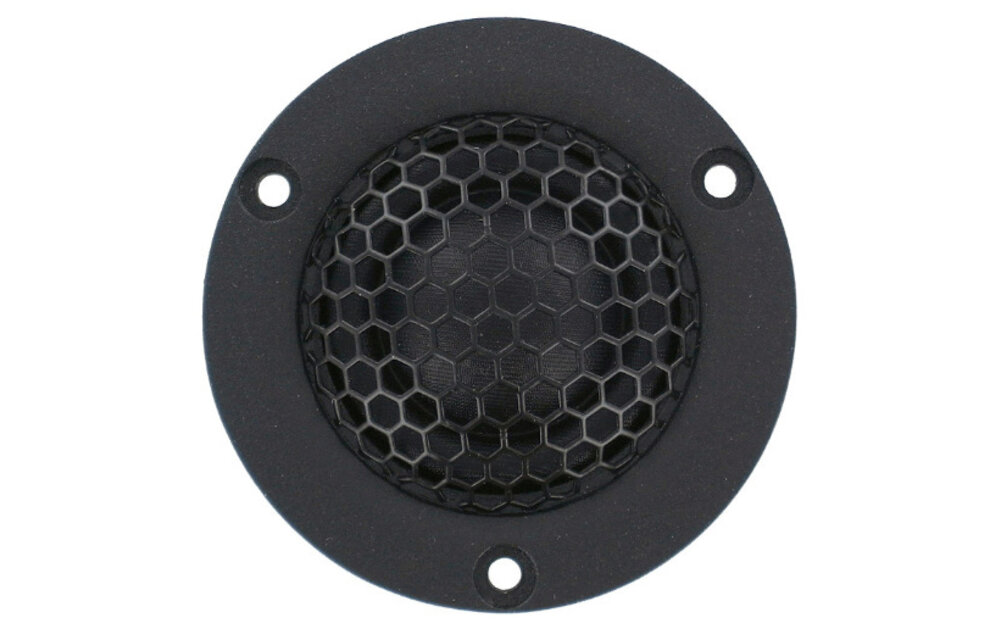

Illuminator D3004/602010 1" Textile Dome Tweeter

Name: Scan-Speak Illuminator D3004/602010 1" Textile Dome Tweeter
Brand: Scan-Speak
Price: 122.45 EUR
Availability: InStock

Show all Audio components

Merk: Scan-Speak

Compare

€ 101,20€ 122,45 4 In stock

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable t... Show more

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Product description

Highlights

1" Textile Dome Diaphragm
Patented Symmetrical Drive (SD-2) motor
Large Non Resonant Alu Rear Chamber
Large Roll Surround f. Wide Dispersion
Sound Transparent Protective Grill
Die Cast Housing & Face Plate

Product details

Scan-Speak Illuminator D3004/602010 1" Textile Dome Tweeter

Specifications: Compliance Equivalent Volume (Vas): 0.001 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.40 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm²
