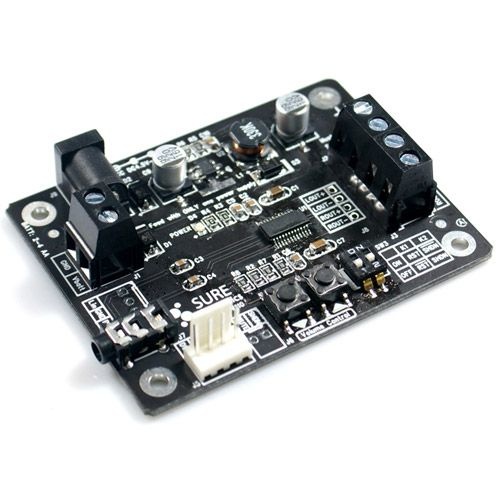

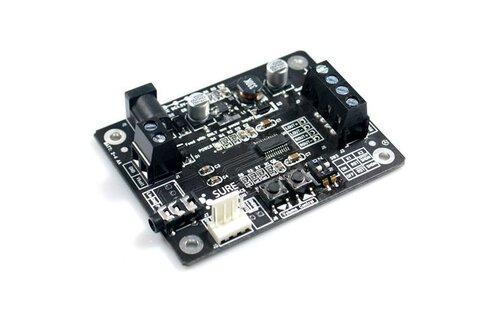

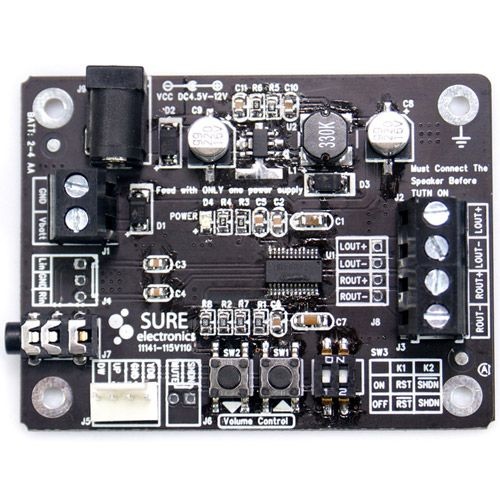

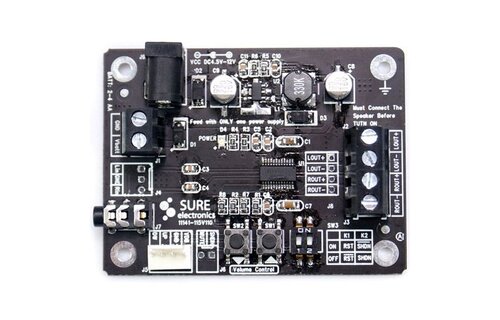

AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

Name: Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
Brand: Sure Electronics
Price: 15.95 EUR
Availability: InStock

Show all Audio components

Merk: Sure Electronics

Compare

€ 13,18€ 15,95 8 In stock

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.... Show more

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Product description

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.

Highlights

Pre-assembled, pre-tested
Small size but big sound quality
Perfect Class-D architecture
Fully-bridged stereo output
Two channels—each up to 2W
Up to 88% efficiency
Does not require a heat sink for most applications

Product details

Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

Tip: Take a look at the table in this blogpost to see which power supply to choose for this product.

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load. A PAM's PAM8803 IC offers ultra-low total harmonic distortion and noise, allowing it to deliver outstanding sound reproduction. Especially suitable for small speakers with an impedance of 4 or 8 ohms. This board can be powered by an external DC supply (4.5V to 12V) via a power port, 2.5V to 4.0V DC via a terminal block, or 2 to 3 AA batteries. Audio signal is input by a 2510 connector or 3.5 mm headphone jack, and volume control is adjustable by on-board buttons.
