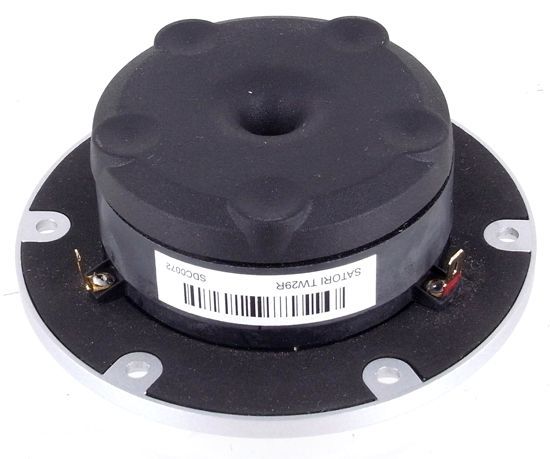

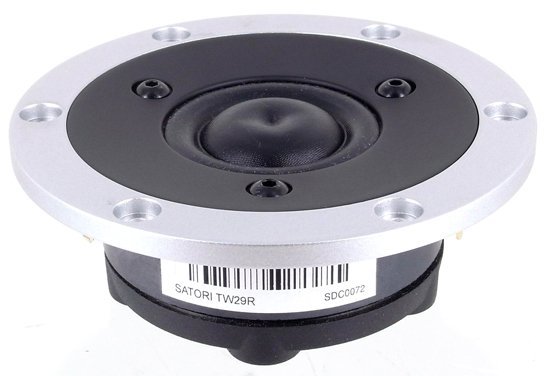

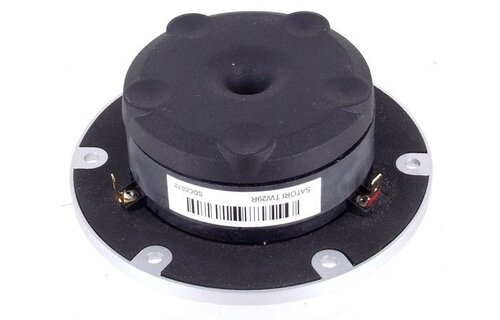

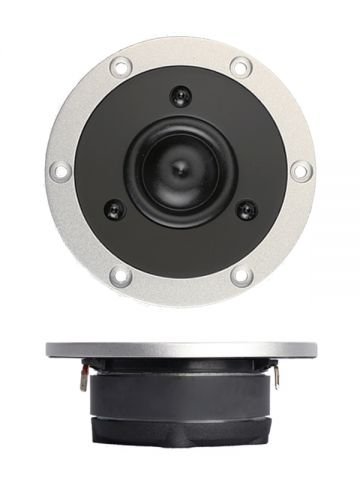

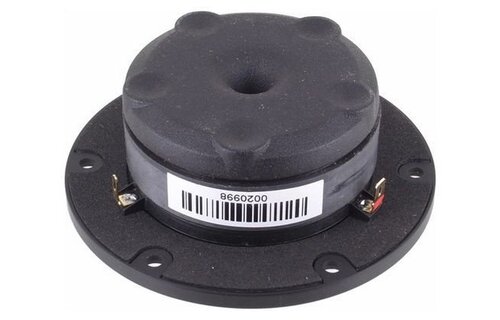

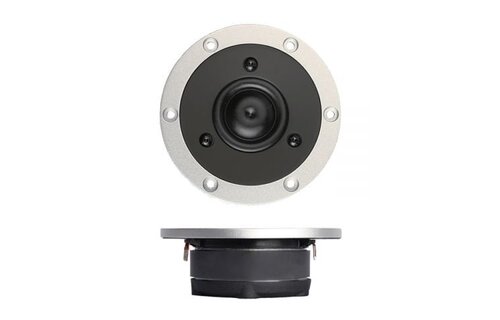

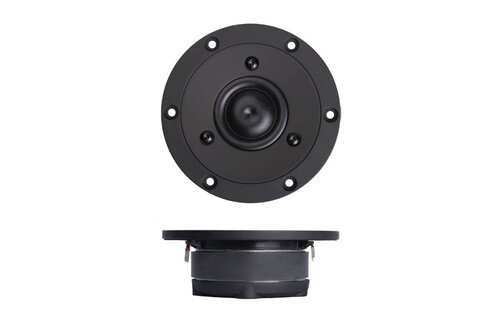

Satori TW29R Ring Dome Tweeter

Name: SB Acoustics Satori TW29R Ring Dome Tweeter
Brand: SB Acoustics
Price: 122.45 EUR
Availability: InStock

Show all Audio components

Merk: SB Acoustics

Compare

€ 101,20€ 122,45 4 In stock: Delivery time: 1-5 business days

The TW29R is a premium ring dome tweeter offered by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output. This tweeter is a perfect choice in any high end system.... Show more

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Product description

Highlights

Non-resonant diaphragm design for minimum high frequency break-up
Two part aluminum faceplate with integrated mechanical decoupling
Dual balanced compression chambers for improved dynamics
Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
Saturation controlled motor system with T-shaped pole piece for lower distortion
Non-reflective cast alumimum chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency for extended range

Product Details

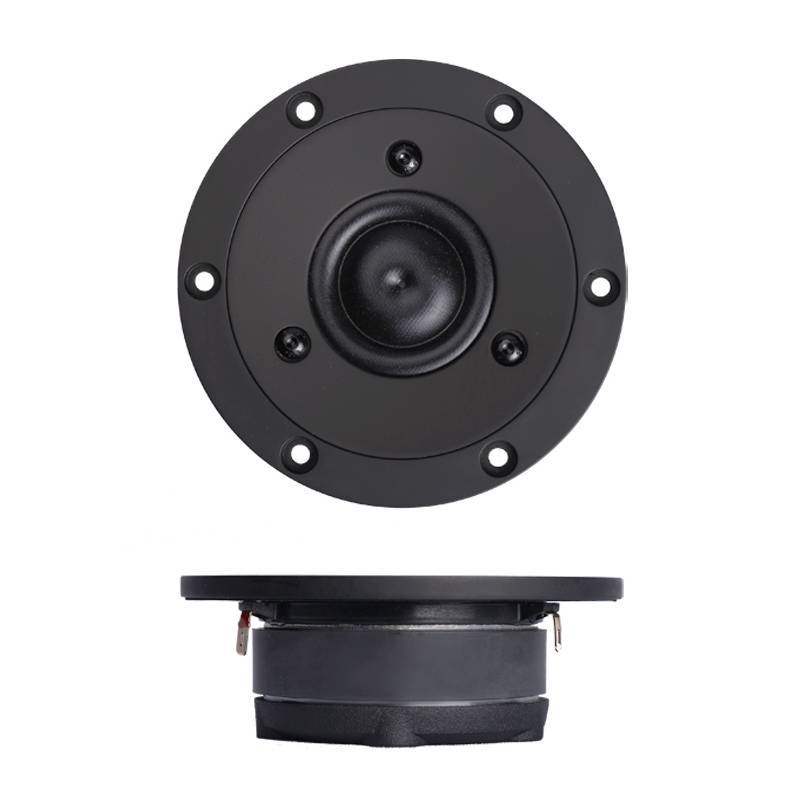

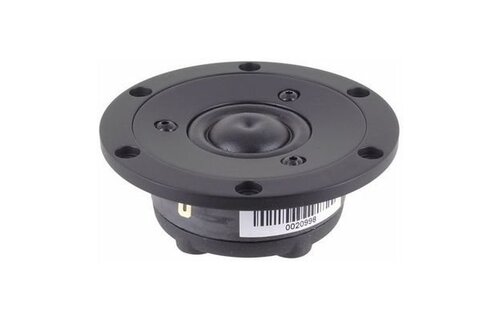

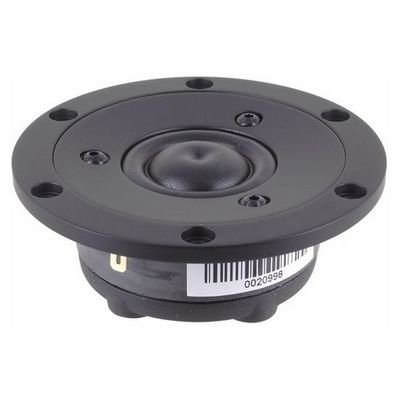

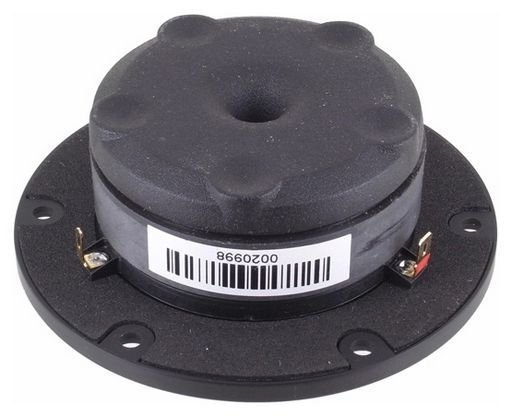

SB Acoustics Satori TW29BN Ring Dome Tweeter

PRODUCT SPECIFICATIONS

Nominal Diameter	- "
Power Handling (RMS)	80 Watts
Power Handling (max)	- Watts
Impedance	4 ohms
Frequency Response	1.8 - 30kHz
Sensitivity	95 dB 2.83V/1m
Voice Coil Diameter	1.14"

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)	600 Hz
DC Resistance (Re)	3 ohms
Voice Coil Inductance (Le)	0.02 mH
Mechanical Q (Qms)	2.0
Electromagnetic Q (Qes)	1.22
Total Q (Qts)	0.76
Compliance Equivalent Volume (Vas)	- ft.³
BL Product (BL)	2.0 Tm
Mechanical Compliance of Suspension (Cms)	- mm/N
Diaphragm Mass Inc. Airload (Mms)	0.45g
Maximum Linear Excursion (Xmax)	0.25 mm
Surface Area of Cone (Sd)	9.6 cm²
