The REDCATT Twiggy10 Subwoofer is a shallow 10" low-frequency driver built for compact installations that still need controlled bass output, strong motor force, and useful excursion.
Â
Highlights of the REDCATT Twiggy10
- Ultra-shallow 80 mm mounting depth for space-restricted builds
- Composite GF honeycomb cone with NBR surround
- 4 ohm impedance with 150 W AES, 300 W continuous, and 600 W peak power handling
- High Bl motor strength of 19.24 T·m for precise control
- 10.06 mm peak Xmax and 18.06 mm Xmech
Â
Product details REDCATT Twiggy10

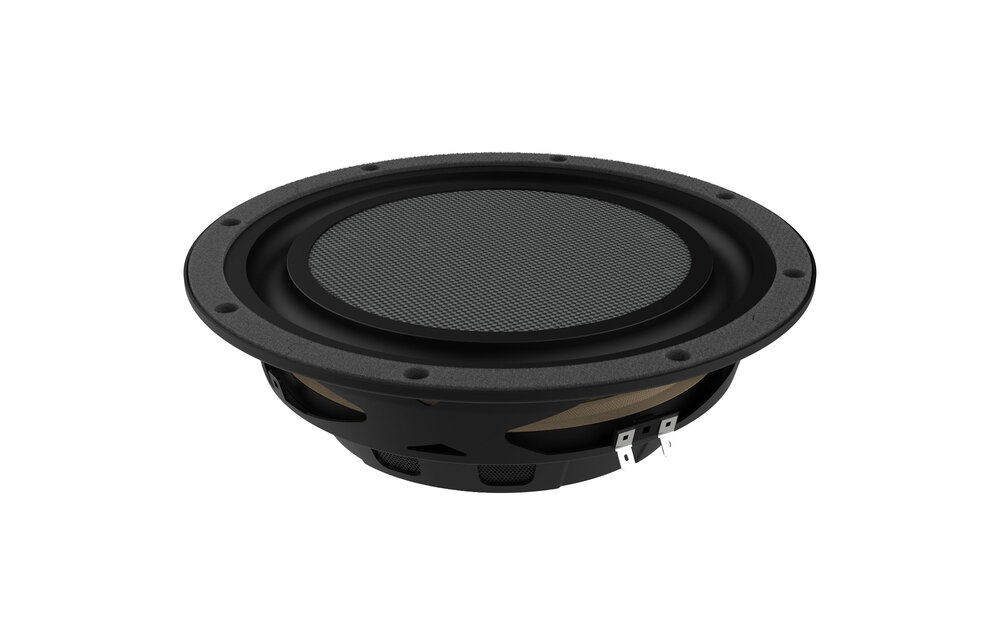

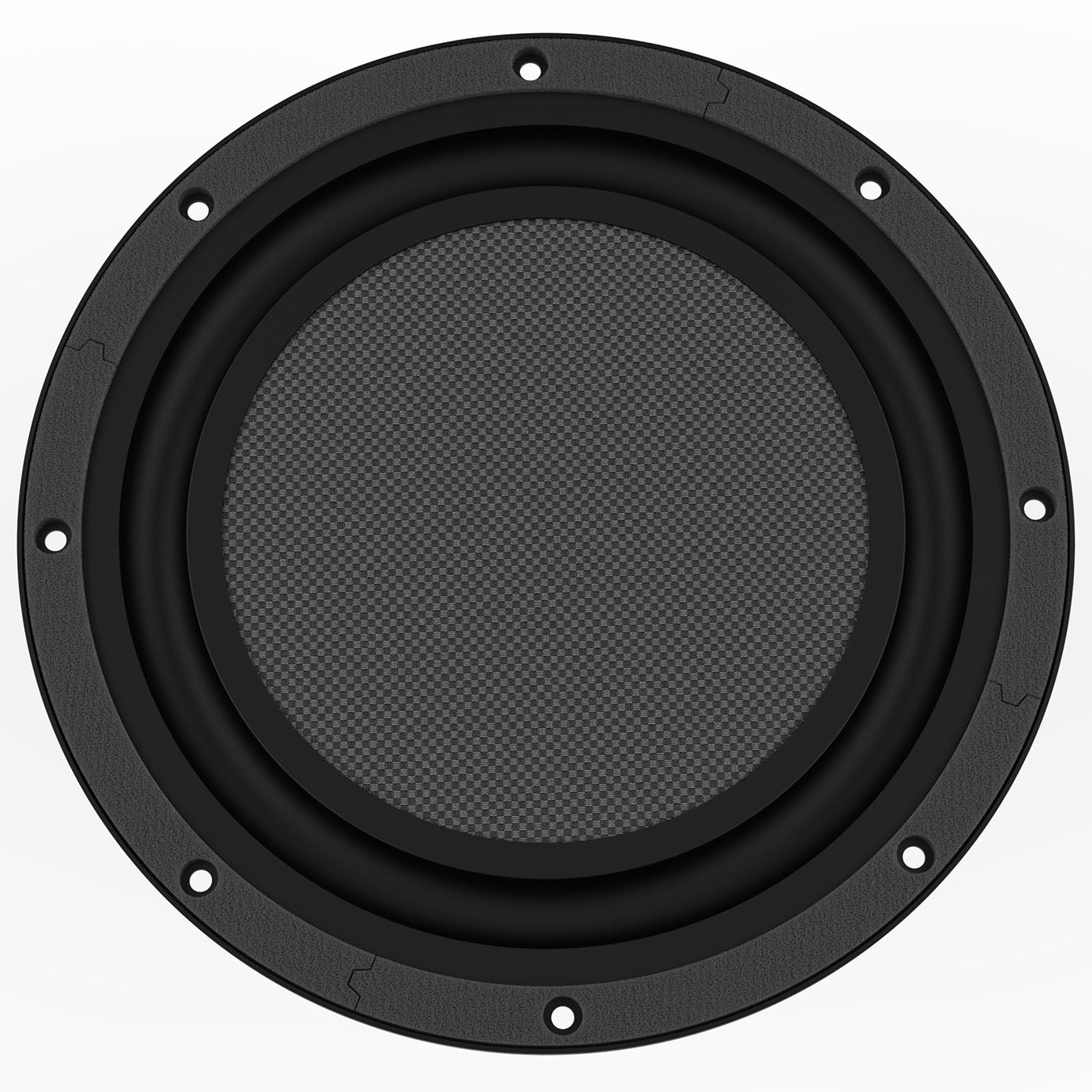

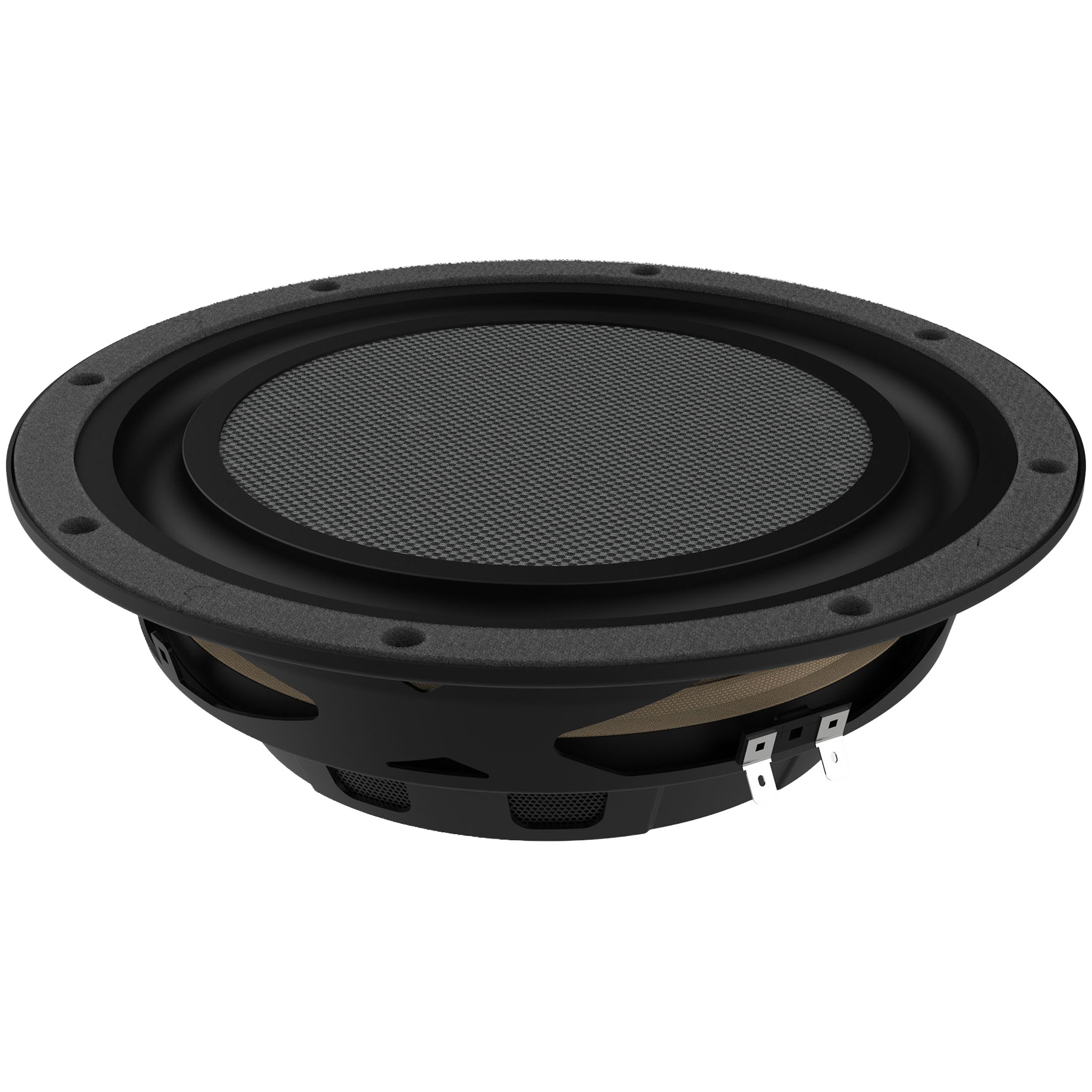

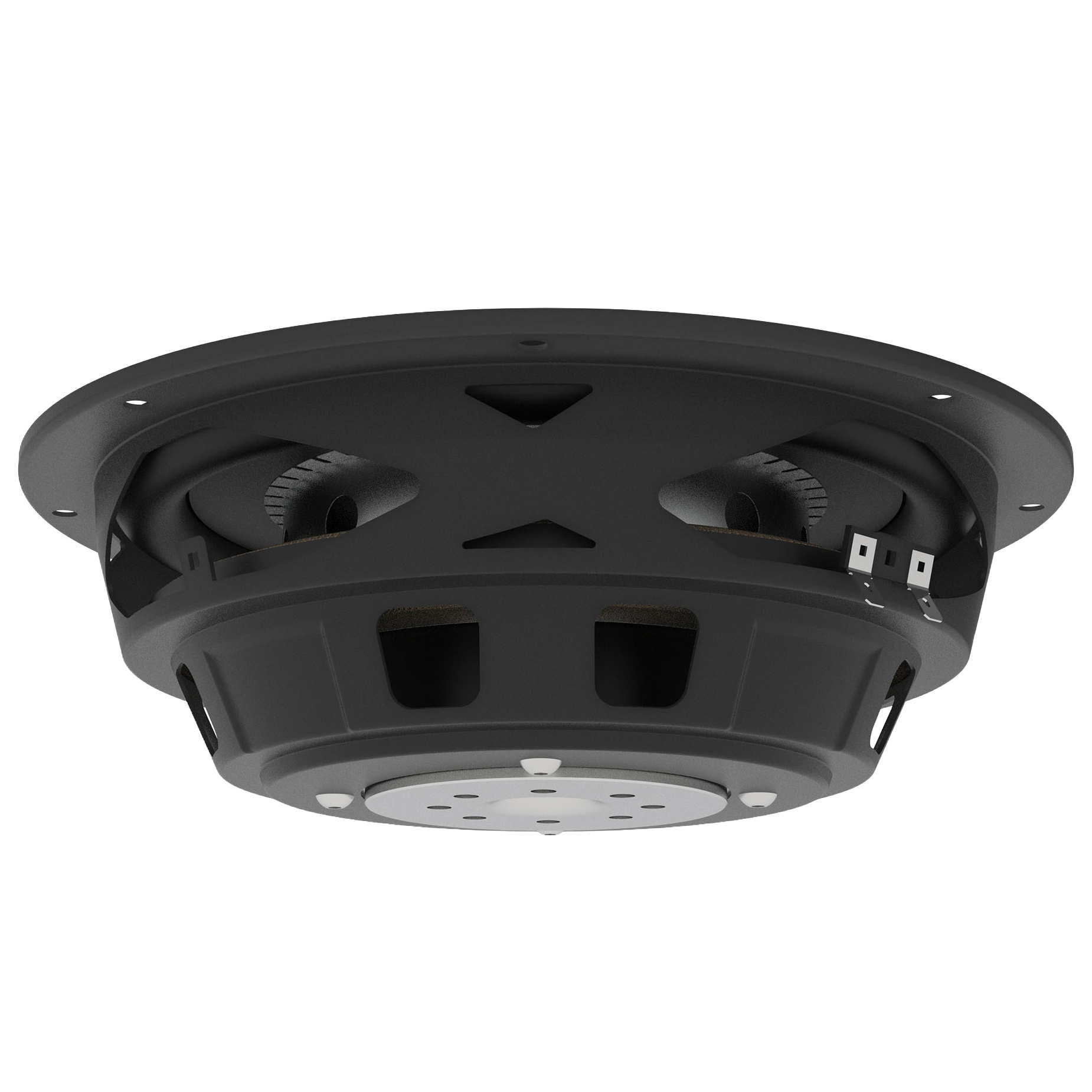

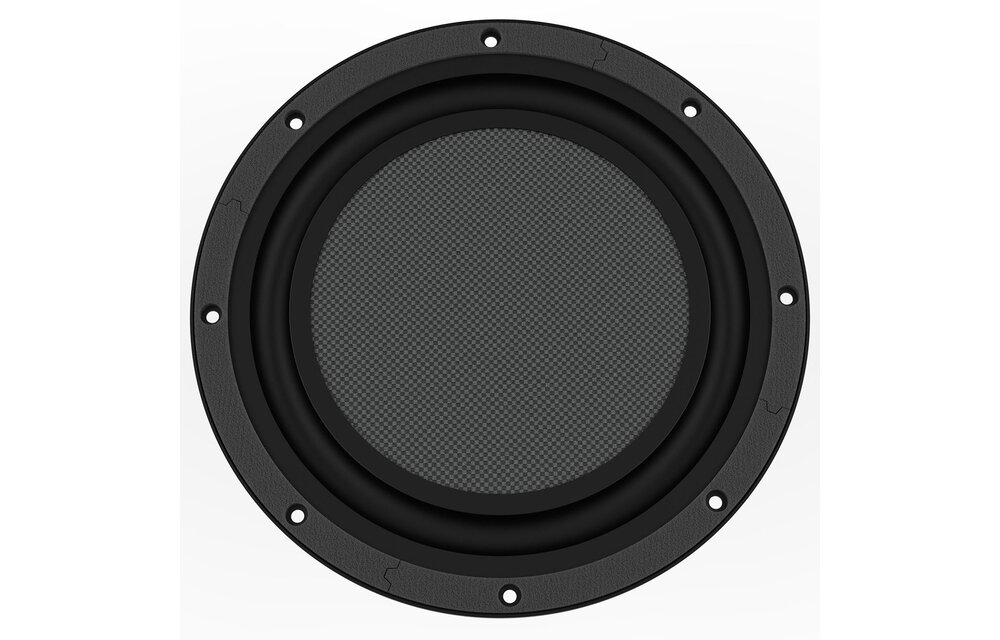

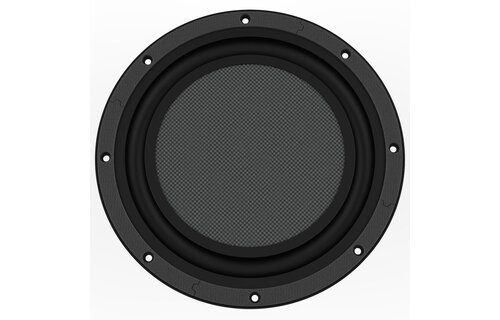

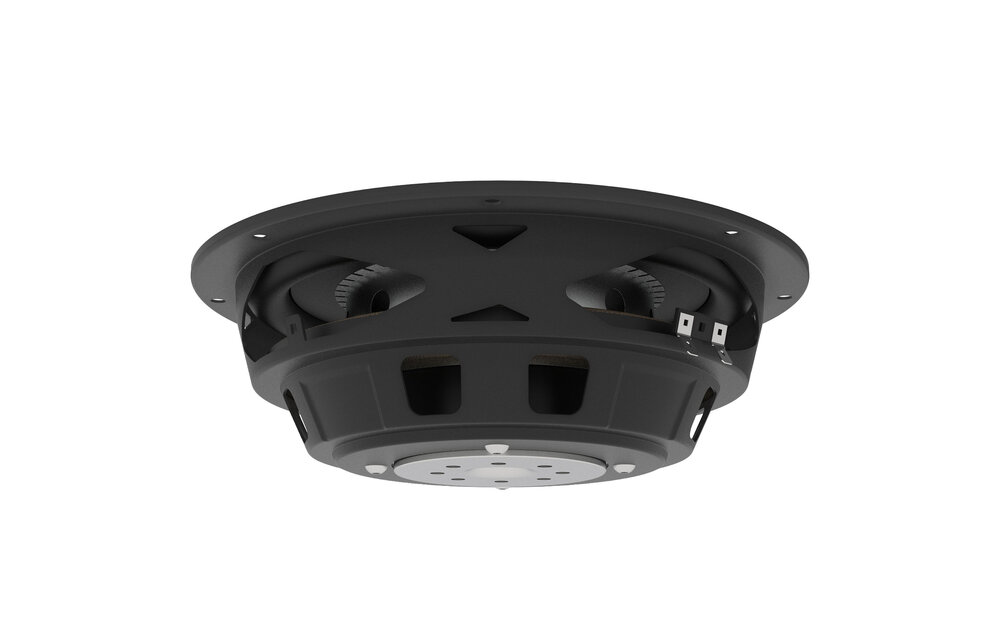

REDCATT Twiggy10 10" Shallow Subwoofer 4 Ohm
Â
The REDCATT Twiggy10 is designed for slim subwoofer systems where installation depth is limited. With a flange-to-rear depth of only 80 mm, it fits compact enclosures while still using an extended voice coil architecture and optimized motor structure for controlled low-frequency output.
Â
As a shallow low-frequency woofer, the Twiggy10 combines a GF honeycomb composite cone, NBR surround, Nomex spider, Kapton former, and CCAW voice coil. Its 50.8 mm voice coil and neodymium magnet support strong performance in demanding compact builds.
Â
Performance is focused on punch, control, and bandwidth for modern slim-profile speaker systems. Key parameters include an Fs of 40.70 Hz, Qts of 0.330, Vas of 14.57 liters, 87.00 dB sensitivity, and a high Bl value of 19.24 T·m for fast transient response and low-distortion behavior.
Â
For bass reflex designs, REDCATT recommends several compact alignments: 10 liters tuned to 45 Hz for strong mid-bass output, 15 liters tuned to 40 Hz for balanced general-purpose use, or 15 liters tuned to 34 Hz for extended low-frequency performance with high-pass filter protection.
