The REDCATT Twiggy35 is an ultra-shallow 3.5" low-frequency driver for space-constrained audio designs, combining neodymium motor technology, a paper honeycomb cone and 8 ohm impedance in a compact 10.15 mm mounting depth.
Â
Highlights of the REDCATT Twiggy35
- Ultra-slim 10.15 mm mounting depth for shallow enclosures
- 3.5" low-frequency driver with 8 ohm rated impedance
- 20 W continuous power handling, 10 W AES and 40 W peak
- Neodymium magnet, steel basket and 33 mm CCAW voice coil
- Paper honeycomb cone with NBR surround for compact audio applications
Â
Product details REDCATT Twiggy35

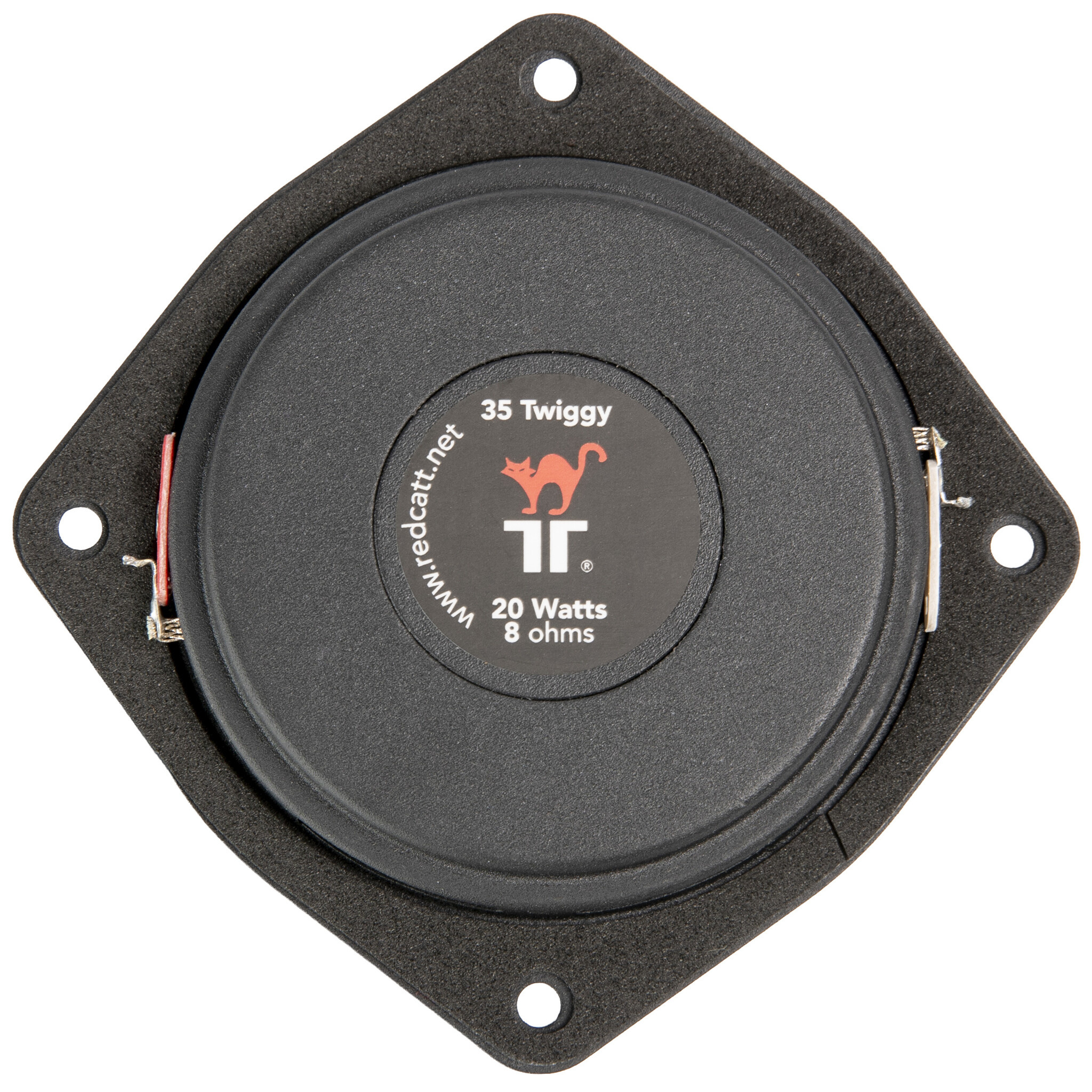

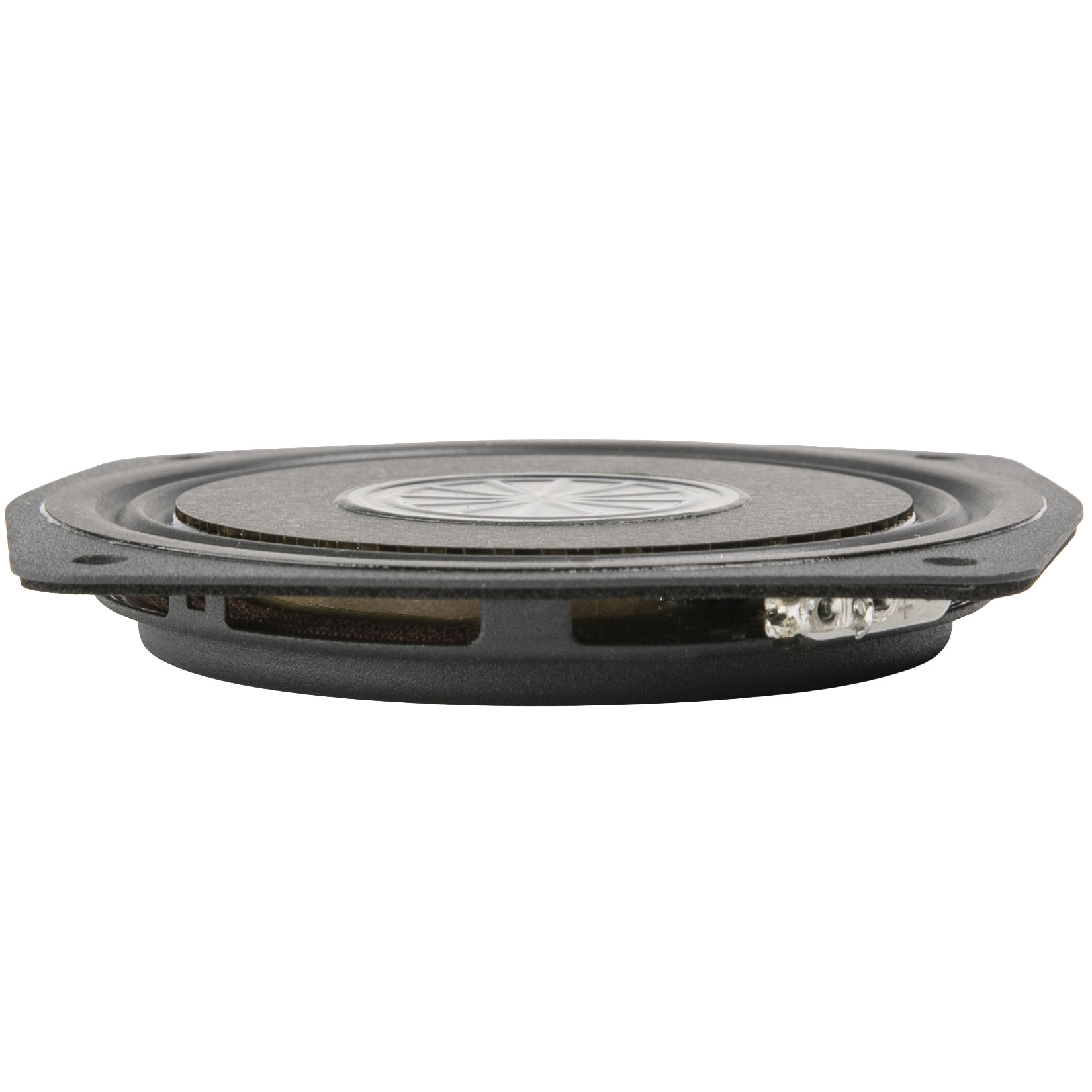

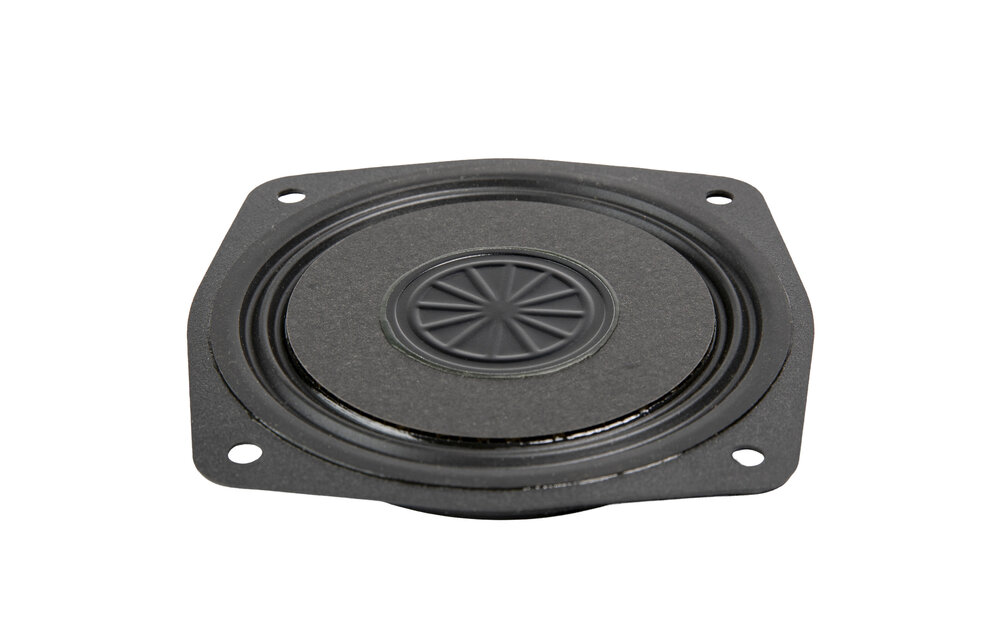

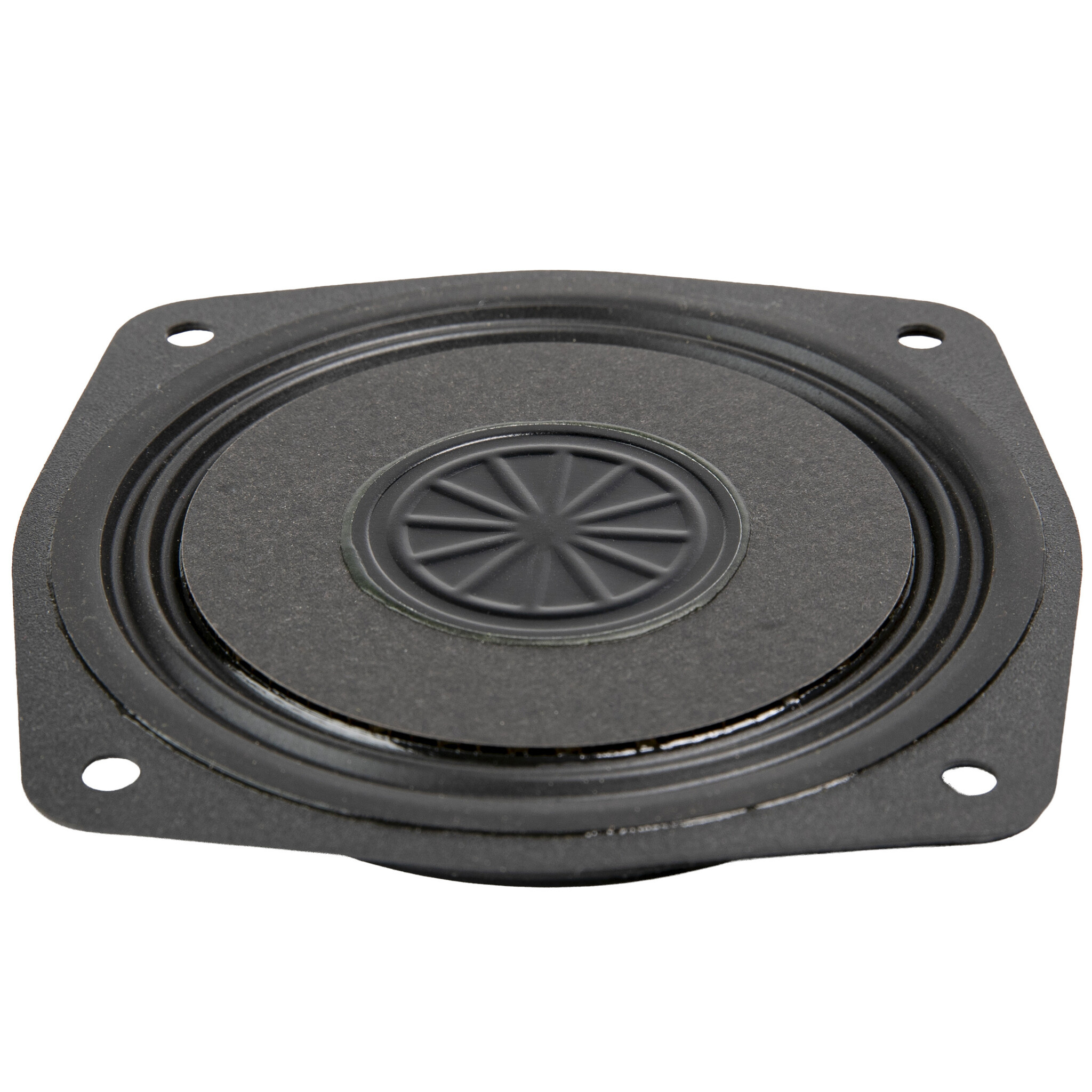

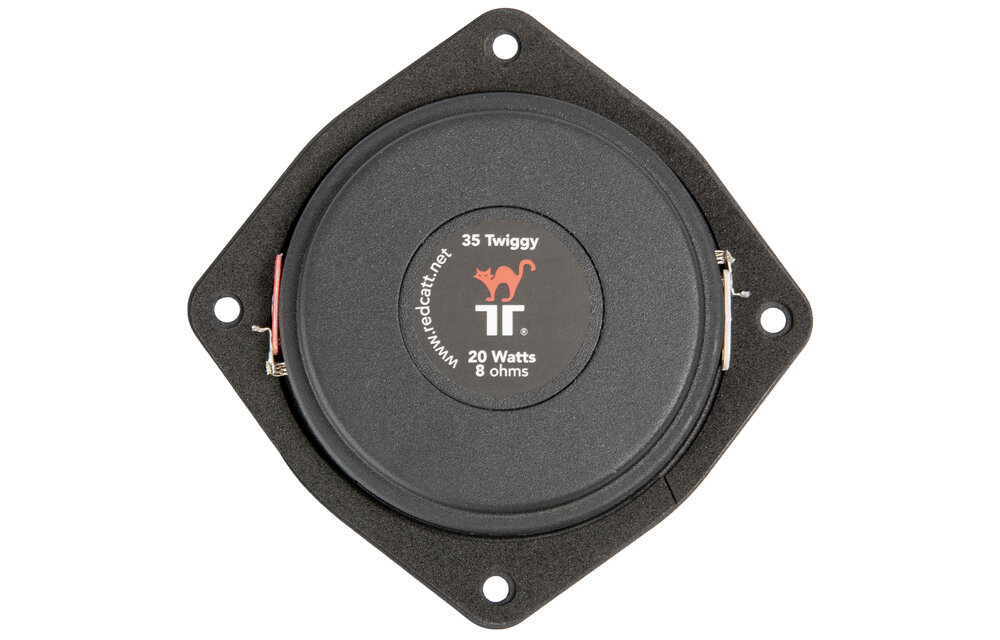

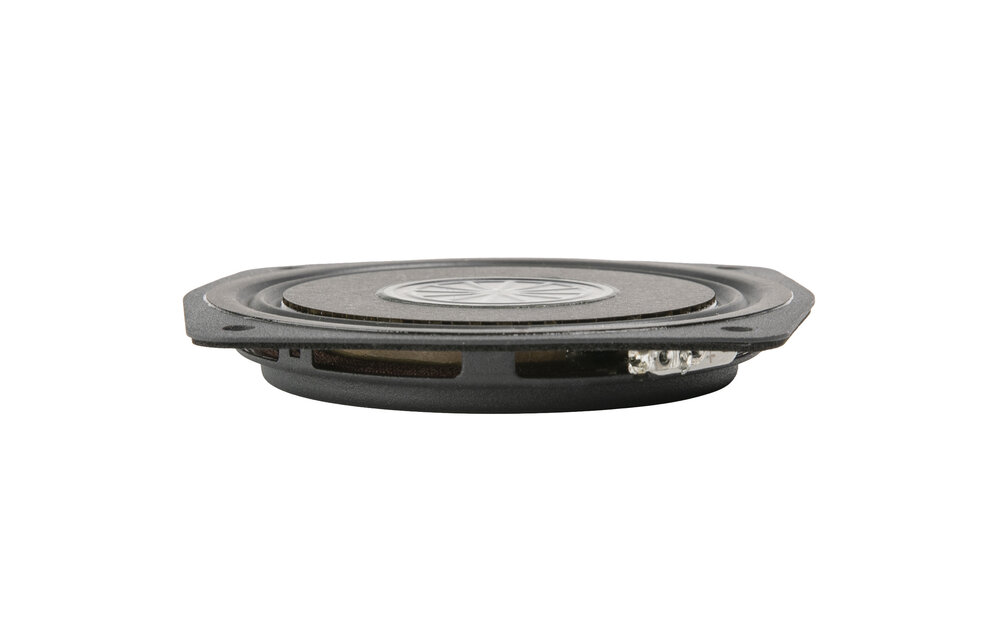

REDCATT Twiggy35 3.5" Shallow Woofer 8 Ohm
Â
The REDCATT Twiggy35 is designed for ultra-thin low-frequency applications where conventional driver depth is not practical. With a mounting depth of only 10.15 mm, this compact woofer gives designers more freedom in slim cabinets, surface-mount systems and other space-limited builds.
Â
Performance is supported by a neodymium magnet system, a steel basket and a 33 mm CCAW voice coil on an aluminium former. The driver is rated at 8 ohm impedance with 83 dB sensitivity, a resonant frequency of 145 Hz, 10 W AES power handling, 20 W continuous power handling and 40 W peak capability.
Â
The paper honeycomb cone, NBR surround and Nomex spider are selected for compact-driver functionality across demanding applications. Its shallow construction makes the Twiggy35 suitable for specialist subwoofer concepts, ceiling tile audio and surface-mount distributed audio where low installation depth is a key design requirement.
Â
Installation dimensions include a 77 mm baffle cutout, 94 mm bolt circle diameter and four mounting holes. For sealed designs, a 0.05 liter enclosure is recommended, including a Qtc 0.707 Butterworth alignment for a maximally flat response. This makes the Twiggy35 a practical component for compact speaker projects and custom OEM-style audio solutions.
