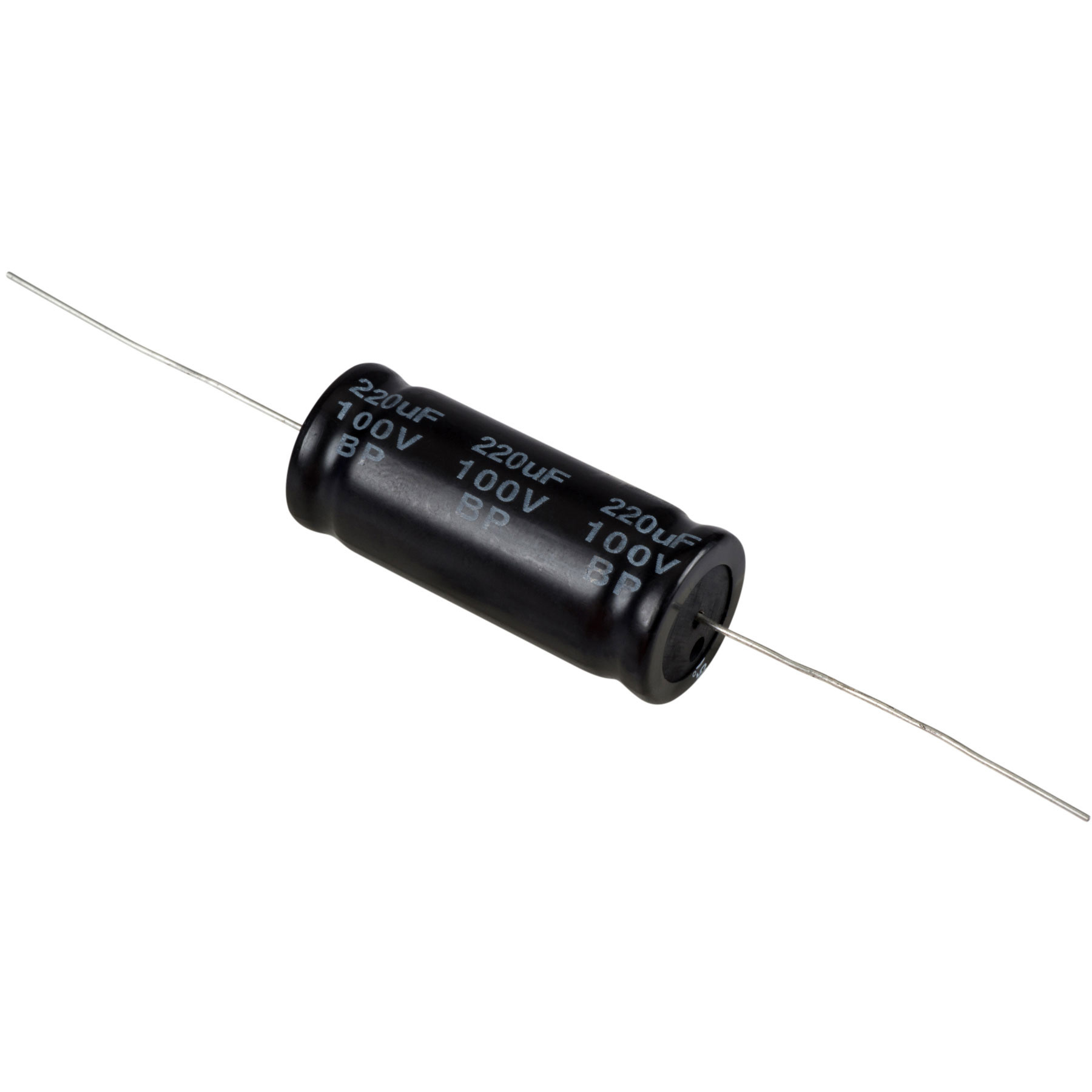

Electrolytic Non-Polarized Cap | 220 µF | 10% | 100V

Toon alle Crossover Componenten

Vergelijk

€ 4,92€ 5,95 4 Op voorraad

These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.... Toon meer

Verzending altijd verzekerd en met track & trace
Voor 16u besteld, vandaag verstuurd
Gratis verzending vanaf €99
In-house technische support

Productomschrijving

Highlights

220 microfarad value
18 mm diameter x 44 mm long
5% dissipation factor and 100 VDC working voltage
±10% tolerance

Product details

Electrolytic Non-Polarized Cap | 220 µF | 10% | 100V

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications: Value: 220.0 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 18 mm Dia. x 44 mm L.
