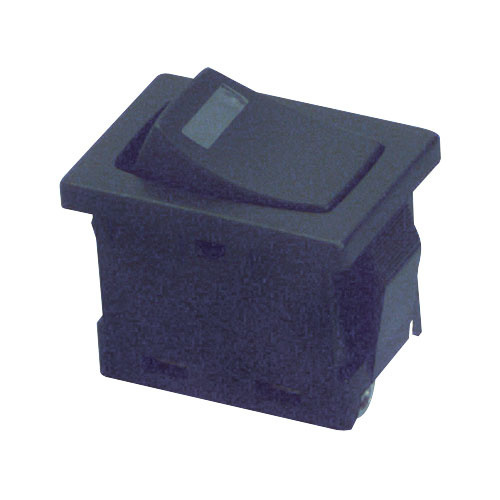

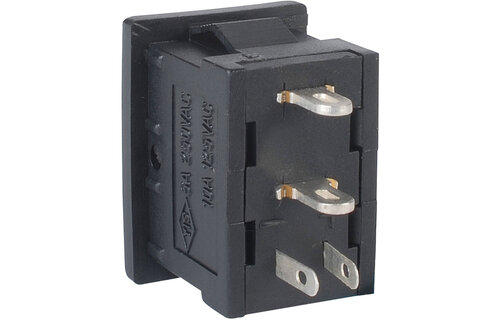

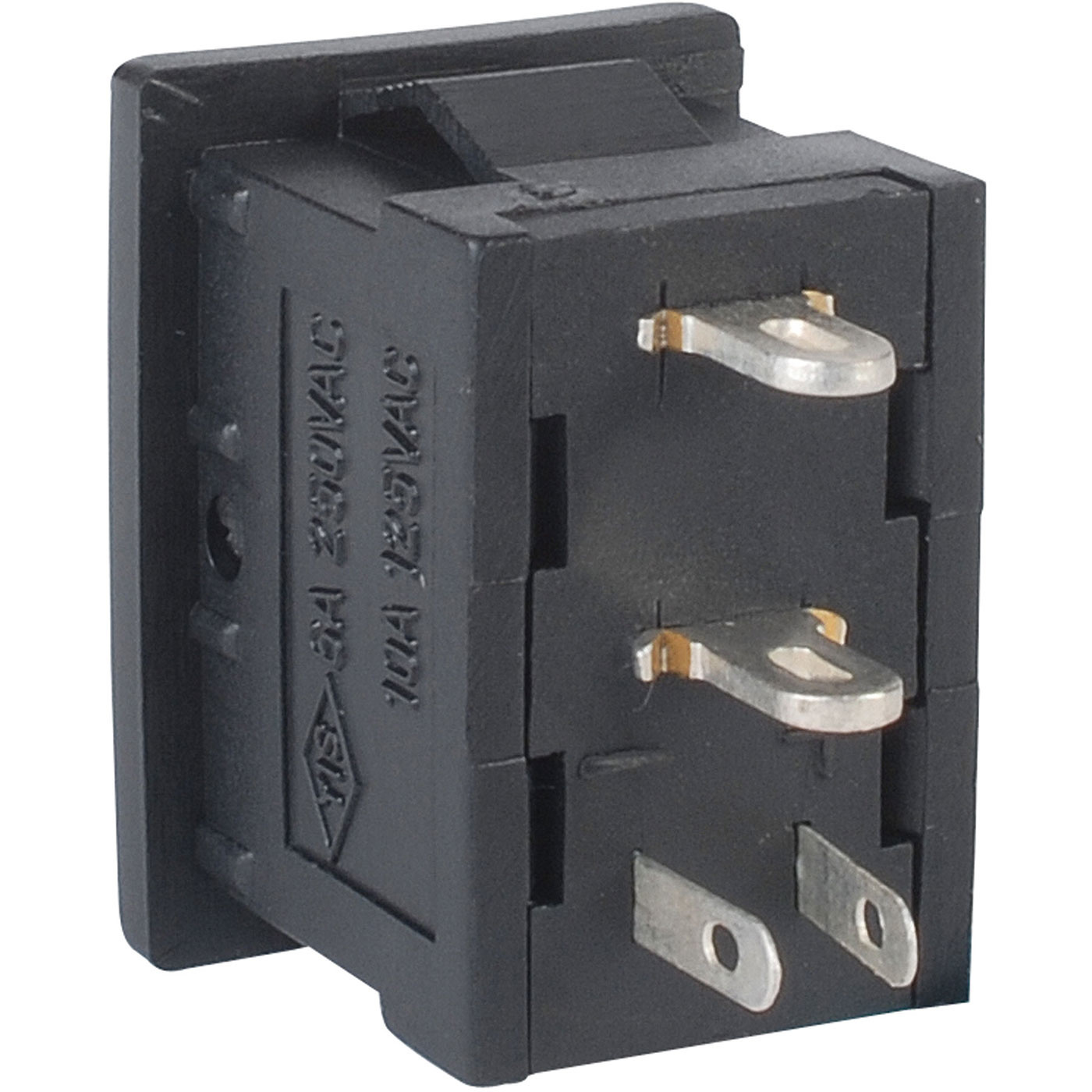

SPST Mini Rocker with Red LED

Toon alle Accessoires

Vergelijk

€ 4,09€ 4,95 4 Op voorraad

Mini rocker switch with standard 3V red LED indicator. Silver plated, copper terminals - 6A/250 VAC rating. Snap-in mounting requires 19 mm x 13 mm hole.... Toon meer

Verzending altijd verzekerd en met track & trace
Voor 16u besteld, vandaag verstuurd
Gratis verzending vanaf €99
In-house technische support

Productomschrijving

Mini rocker switch with standard 3V red LED indicator.

Highlights

Red LED
Silver-plated copper terminals
Circuit: SPST

Product Details

SPST Mini Rocker with Red LED

Mini rocker switch with standard 3V red LED indicator. LED can be wired always-on or switched-on depending on your source voltage (recommended to use 680+ ohm series resistor with 12 VDC source). LED contacts are separate from switched contacts. Silver plated, copper terminals. Requires 19 mm x 13 mm cutout; chassis material thickness 0.8 mm ~1.6 mm. Rated at 6A/250 VAC.

Specifications: • Circuit: SPST • Contact Rating @ Voltage: 6 A 250 VAC • Illumination: Illuminated.
