The REDCATT 101NCD is a compact 1.0" neodymium compression driver for professional high-frequency loudspeaker applications, combining 8 Ohm impedance, 108.5 dB sensitivity, and robust power handling in a lightweight design.
Â
Â

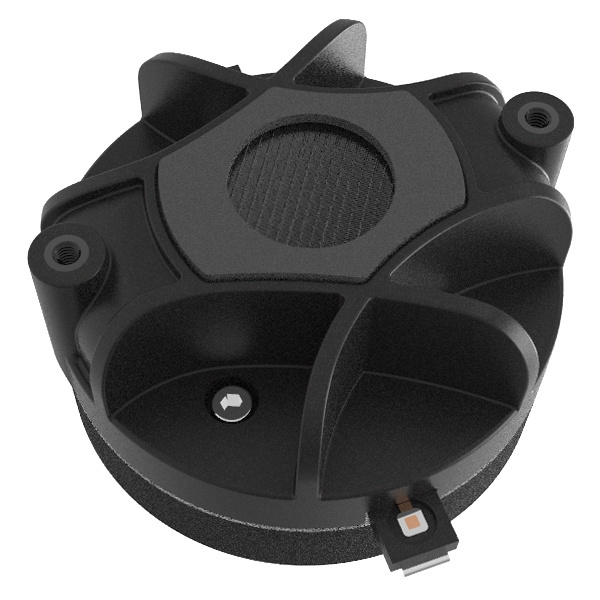

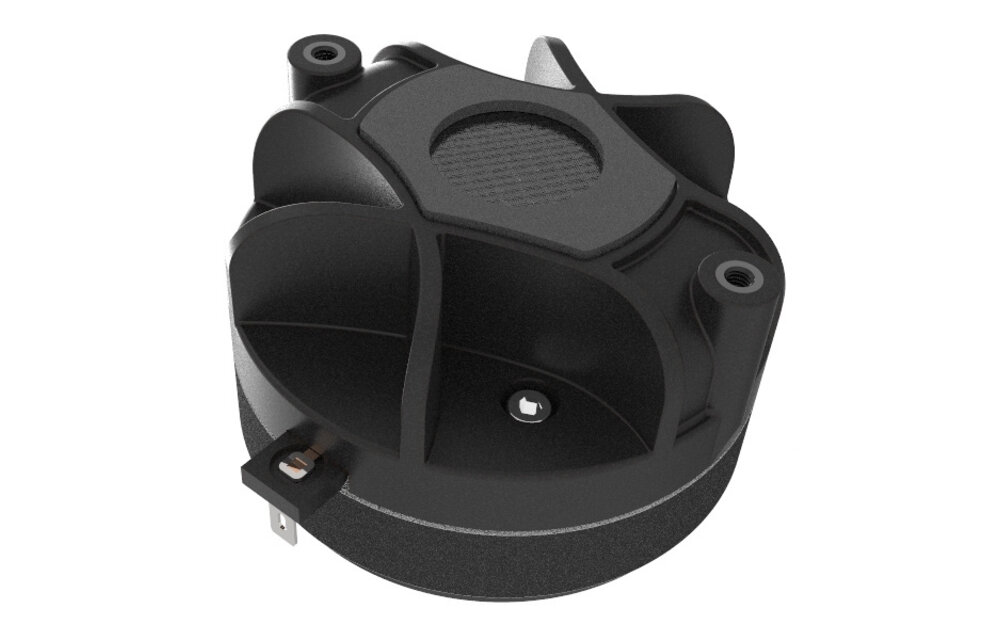

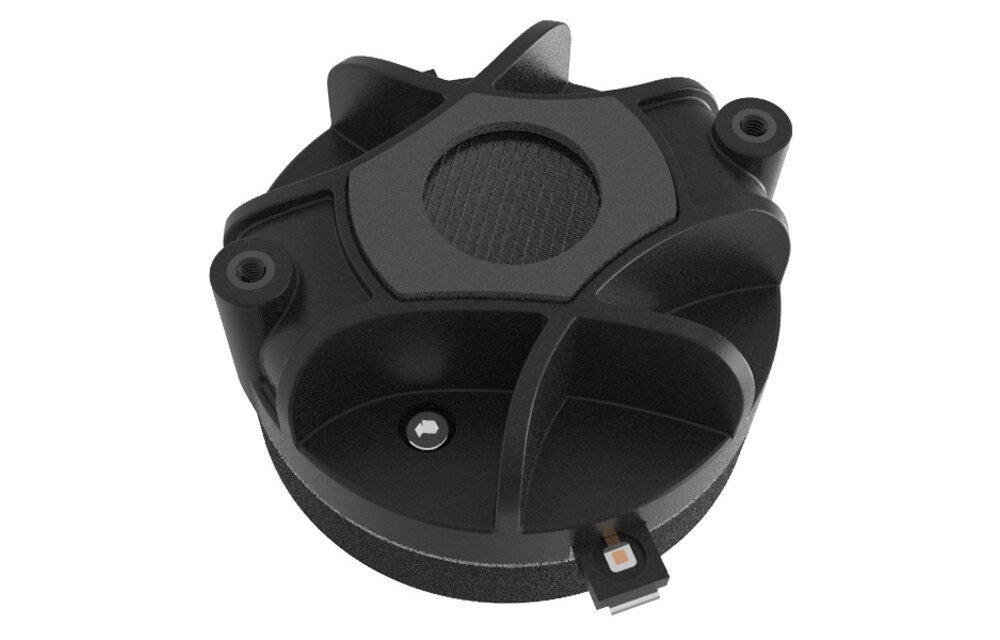

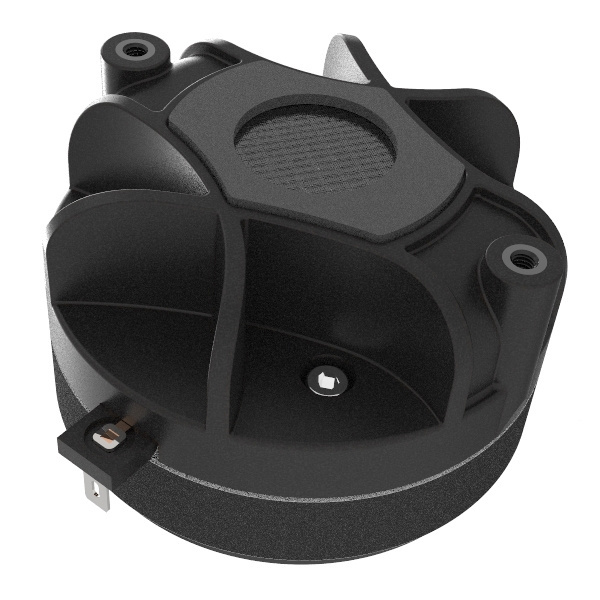

REDCATT 101NCD 1.0" Neodymium Compression Driver 8 Ohm
Â
The REDCATT 101NCD is designed as a high-performance HF transducer for compact professional loudspeaker systems. Its 1.0" exit throat and compact 86 mm overall diameter make it well suited for space-conscious audio components, including compact line-array and portable PA designs where low weight and high output are important.
Â
A neodymium magnetic circuit gives the driver precise control over the polyimide/Kapton diaphragm assembly while keeping the package compact. With 108.5 dB sensitivity and low-distortion, high-SPL performance, the 101NCD is a strong option for demanding tweeters and horn-loaded HF sections.
Â
Power handling is specified at 20 W AES, 40 W continuous, and 80 W peak. The diaphragm is attached to a high-temperature Nomex voice coil former, supported by advanced adhesive bonding and dome treatment processes to improve long-term reliability in professional audio use.
Â
The 101NCD is suitable for 2-way PA tops, portable column PA systems, commercial install systems, and other weight-critical speakers that require a compact compression driver. Mechanical specifications include a 53 mm bolt circle diameter, 2 mounting holes, 37 mm mounting depth from flange to rear, and a net weight of 0.62 kg.
