The REDCATT 181FCD Compression Driver is an 8 ohm high-frequency compression driver for professional loudspeaker systems, combining high sensitivity, ferrite motor strength and extended frequency response for larger speaker designs.
Â
Â

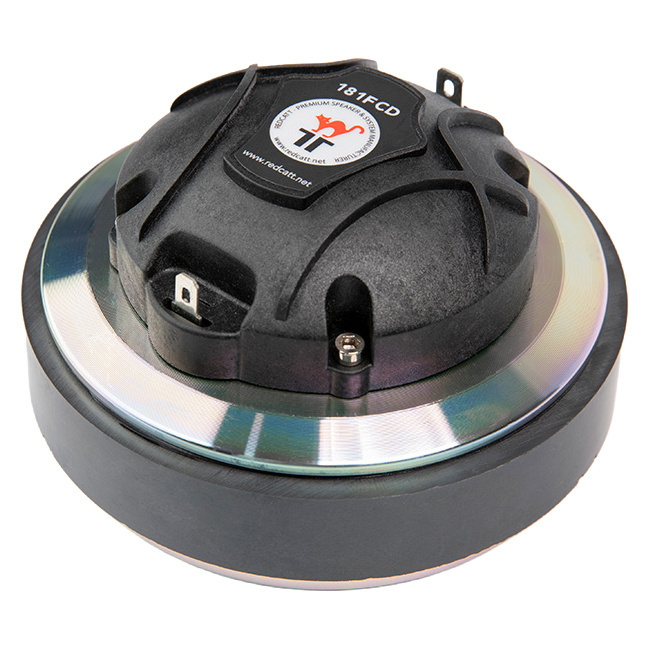

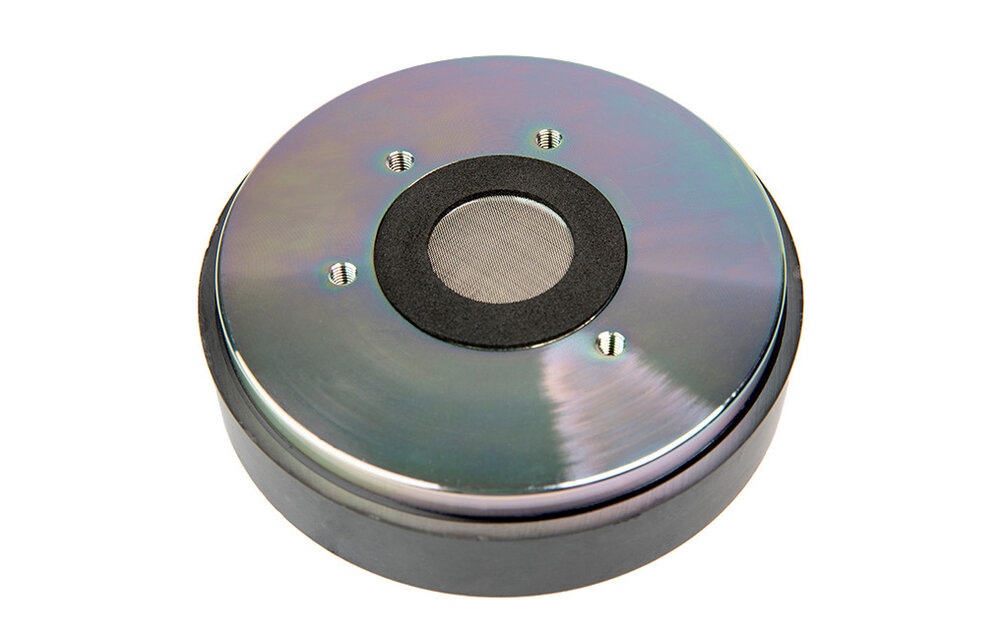

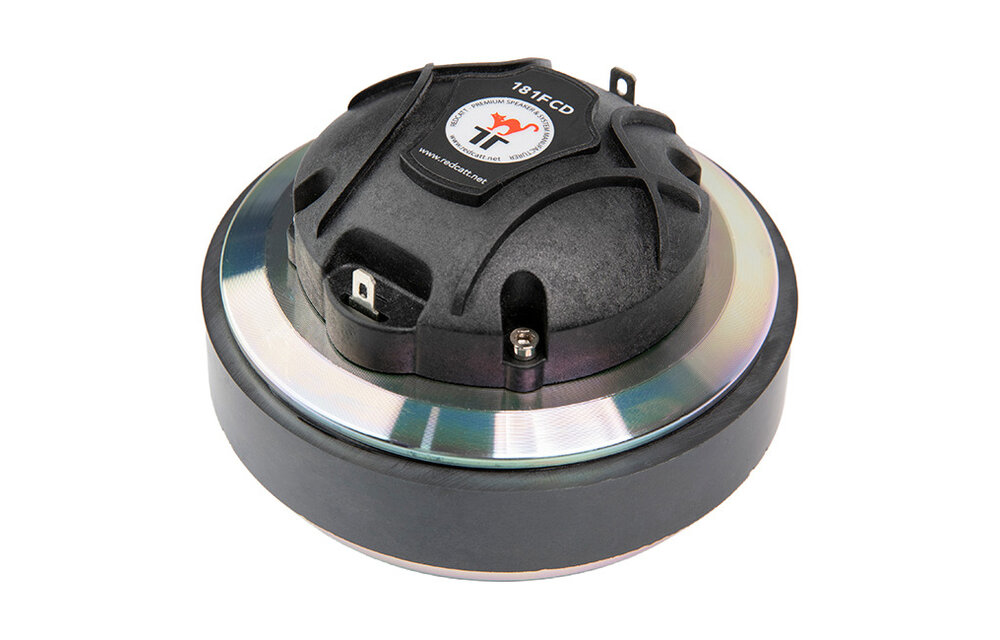

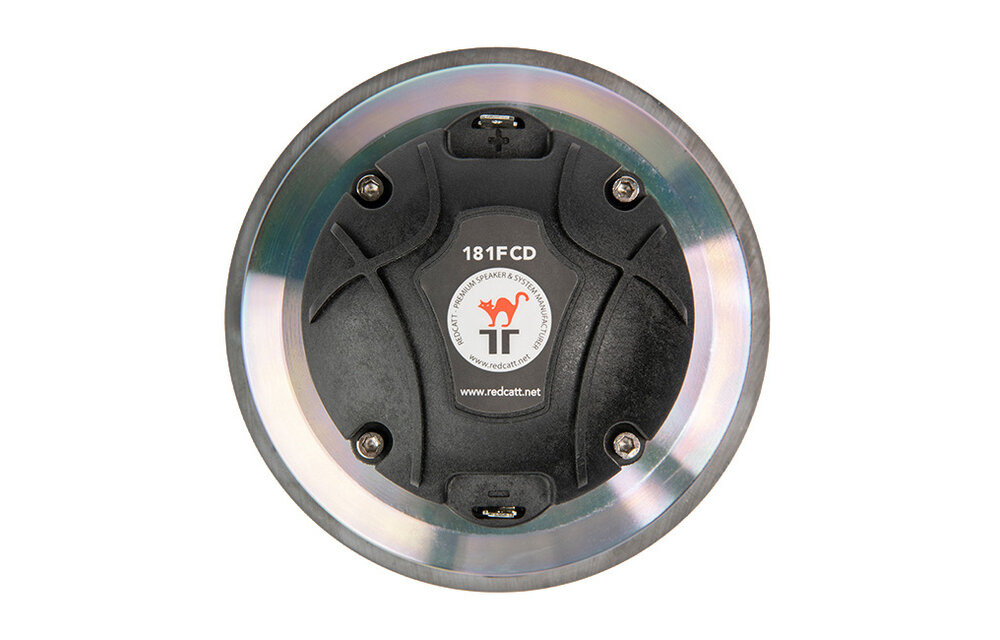

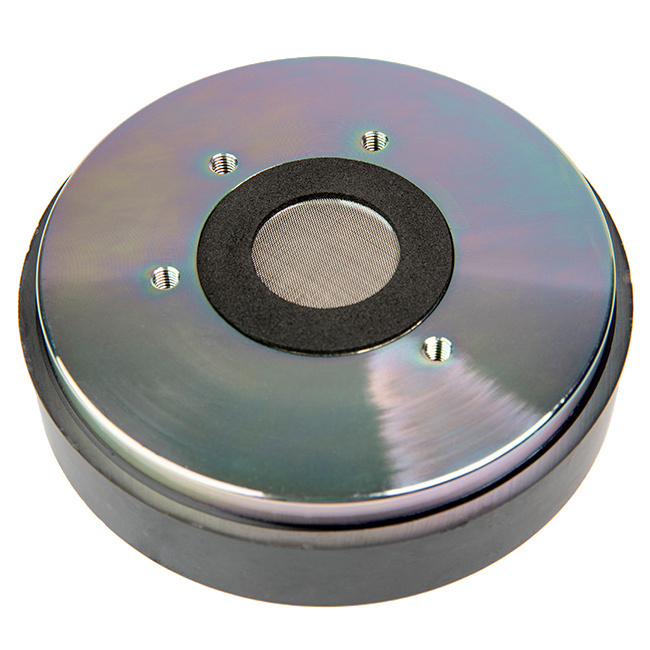

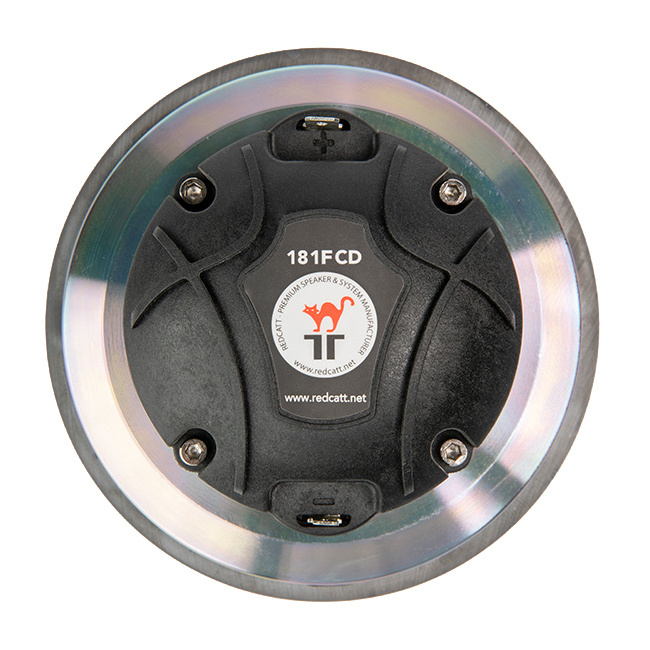

REDCATT 181FCD 1.8" Compression Driver 8 Ohm
Â
The REDCATT 181FCD is a high-performance HF compression driver developed for professional loudspeaker engineering. It is well suited to demanding horn-waveguide tweeter applications where controlled high-frequency output and strong efficiency are required.
Â
Its ferrite motor uses an FEM optimized magnetic structure to provide a robust high-force BL field. This supports precise control of the diaphragm assembly and helps the driver deliver a clear, pleasant high-frequency sound character with extended frequency response.
Â
With 109 dB sensitivity and power handling of 70 W AES, 140 W continuous and 280 W peak, the 181FCD is built for use in larger speaker systems. Recommended applications include 2-way PA tops, portable column PA systems and commercial install systems.
Â
The driver features a plastic basket, ferrite magnet, four mounting holes, a 110 mm overall size, 62.83 mm depth from flange to rear and a net weight of 1.75 kg. These mechanical details make it practical to integrate into cabinet projects using compatible horns and waveguides.
