The REDCATT 200FCD is a high-performance 3.0" compression driver for demanding professional loudspeaker systems, combining high sensitivity, strong power handling and a precision-engineered titanium diaphragm assembly.
Â
Â

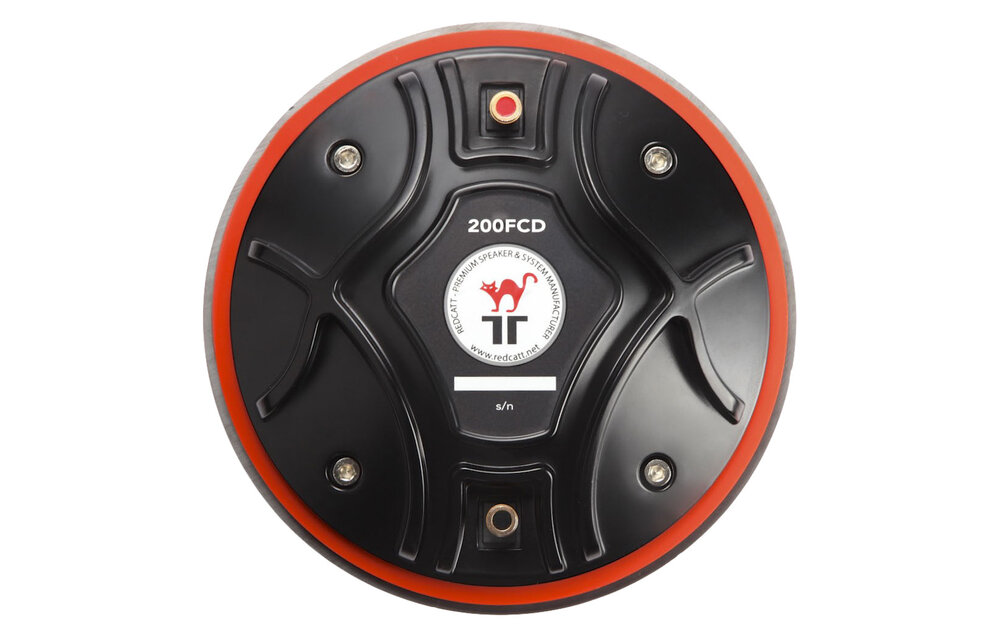

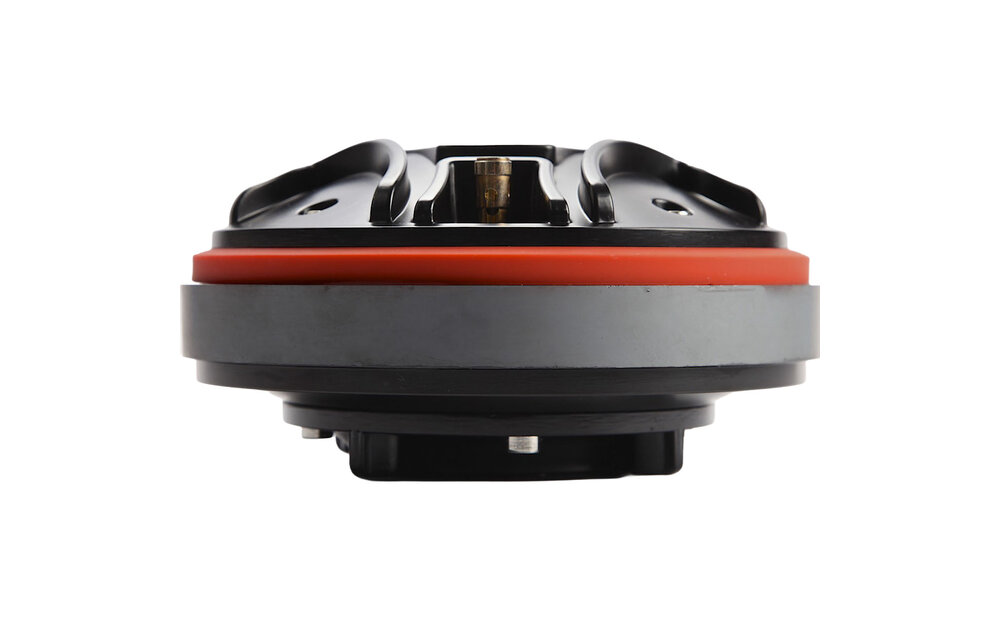

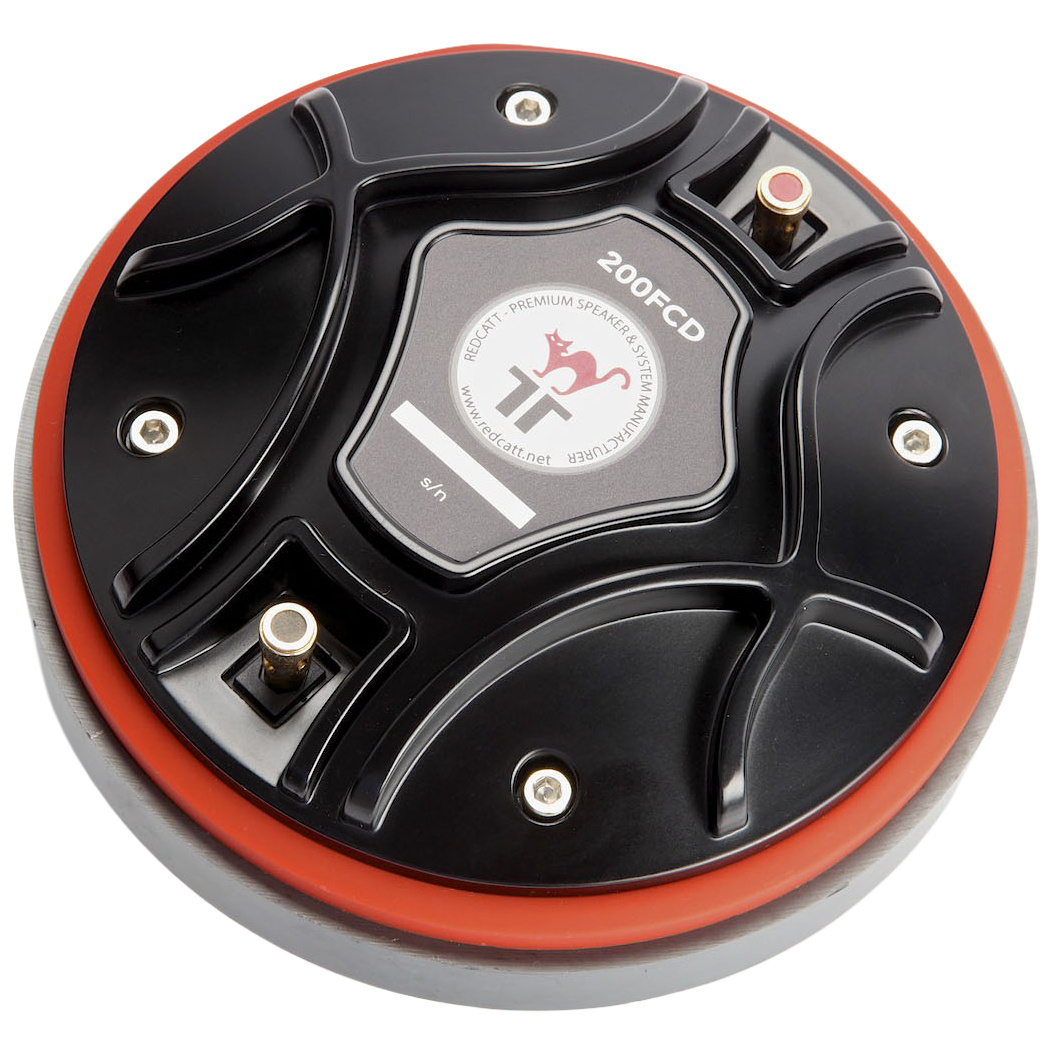

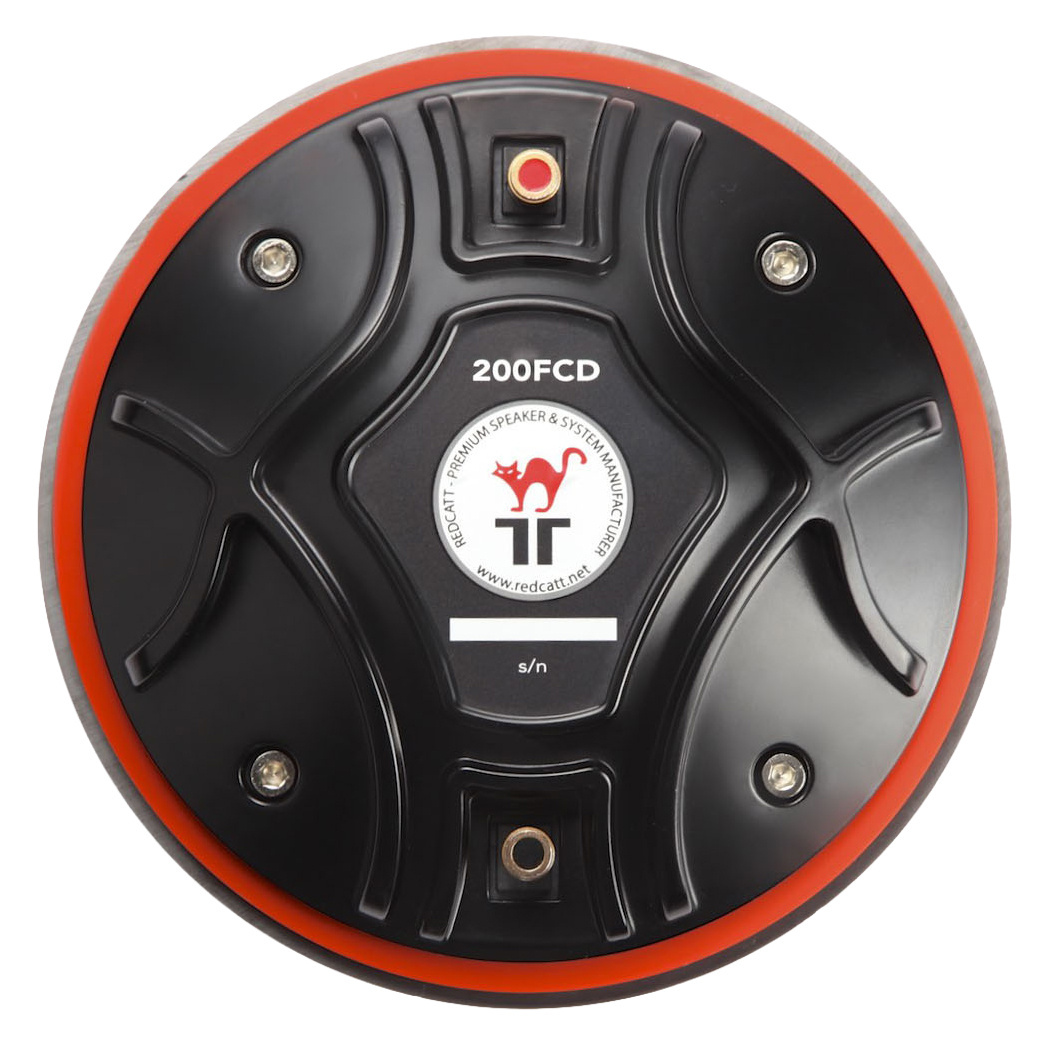

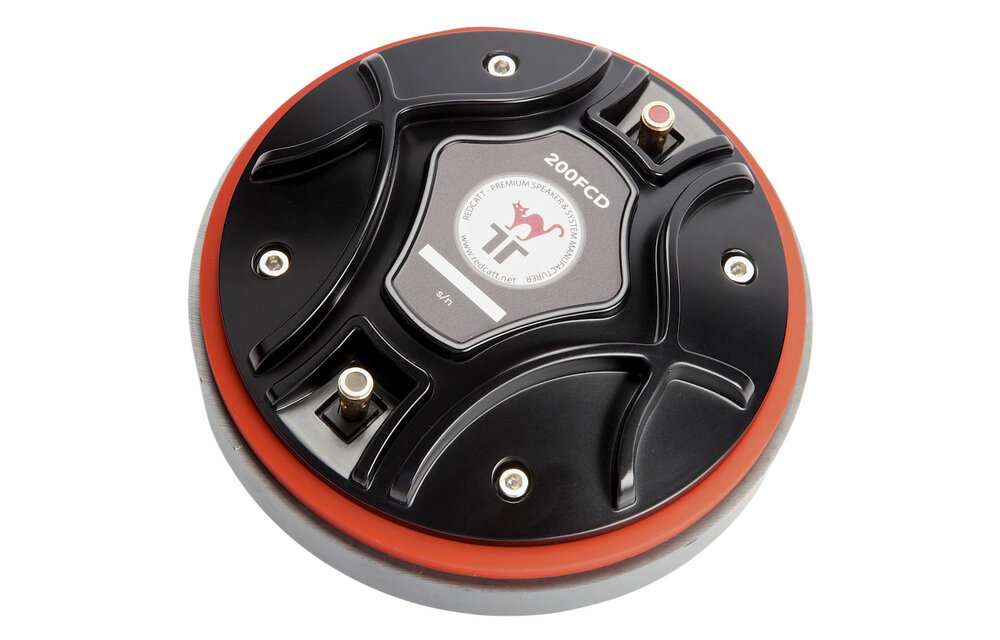

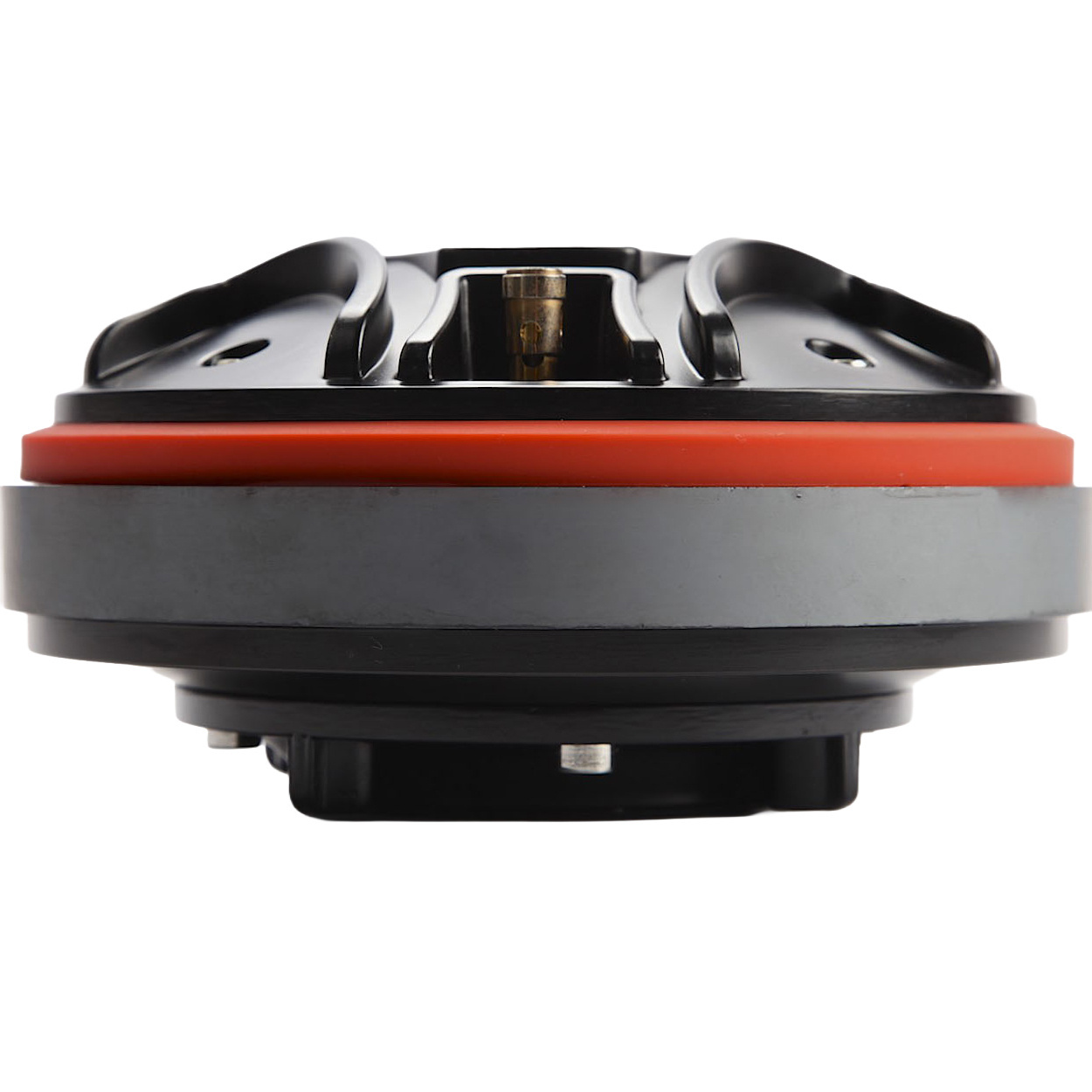

REDCATT 200FCD 3.0" Compression Driver 8 Ohm
Â
The REDCATT 200FCD is built as a very high-performance high-frequency tweeter device for large professional loudspeaker systems. With 108.5 dB sensitivity and a low 500 Hz resonant frequency, it is designed for applications where high SPL and reliable long-throw output are essential.
Â
Its diaphragm assembly uses a 3.0" pure titanium diaphragm with a Polyimide suspension. The dome is carefully attached to the voice coil using a sandwich joint, improving high-frequency transfer while supporting power handling and long-term reliability.
Â
The 200FCD uses a ferrite magnet system with a copper cap demodulation ring and a powerful motor structure. The voice coil uses CCAR winding wire on a Kapton former, while the CNC-machined solid aluminum radial 3-slot phase plug contributes to precise acoustic output in demanding speaker designs.
Â
This compression driver is suited to professional touring PA systems, large-format 2-way or 3-way tops and concert line arrays. A 48 mm horn exit makes it suitable for integration with compatible horns, supporting high-output systems where controlled projection is required.
