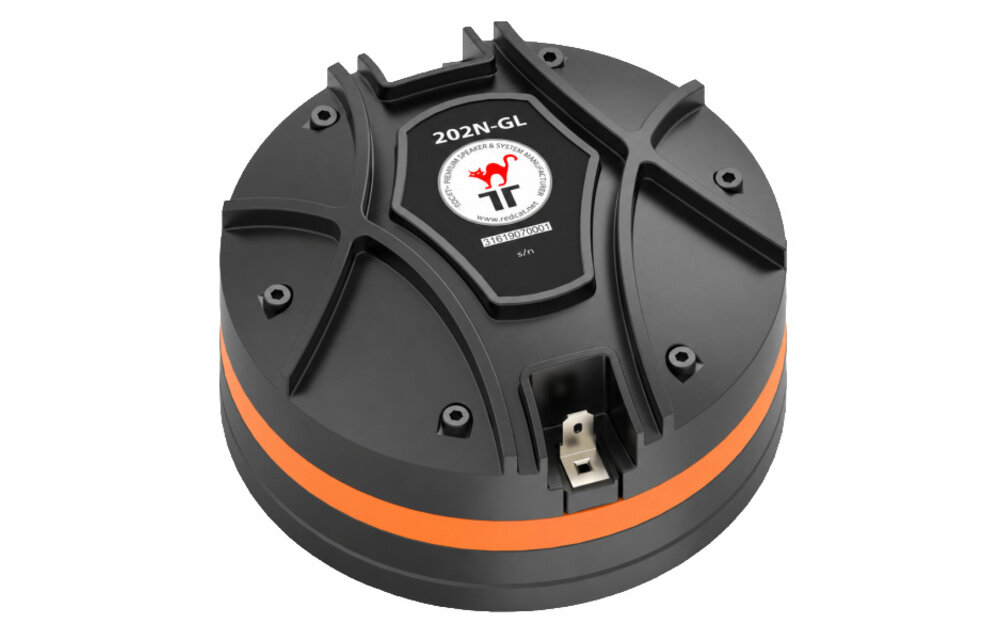

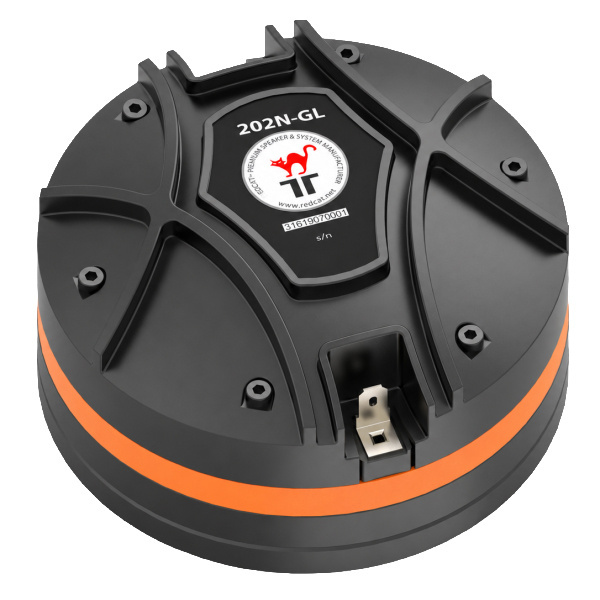

The REDCATT 202N-GL is a high-efficiency 3.0" compression driver with a unique glass diaphragm, neodymium motor, 8-ohm impedance and smooth extended HF performance up to 20 kHz.
Â
Â
REDCATT 202N-GL 3.0" Glass Diaphragm Compression Driver 8 Ohm
Â
The REDCATT 202N-GL is built for premium professional high-frequency reproduction. As a specialist compression driver for demanding audio components projects, it combines a precision-formed glass dome with a neodymium motor to deliver high sensitivity, controlled behaviour and extended output across the working band.
Â
Its glass diaphragm is designed to offer metal-like stiffness while retaining natural internal damping. This helps keep breakup out of the audible working range, giving this tweeter a smooth and controlled response from 1 kHz to 20 kHz. The 3.0" copper-clad aluminium ribbon voice coil uses a kapton former, supported by a PEI surround for reliable high-frequency performance.
Â
With 109.5 dB sensitivity and power handling of 70 W AES, 140 W continuous and 280 W peak, the 202N-GL is suited to high-output systems where clarity and headroom matter. It is a strong choice for premium two-way PA tops, touring and install systems, theatre sound and professional speakers requiring clean, extended HF reproduction.
Â
The compact assembly measures 58 mm deep from flange to rear and weighs 1.9 kg, making it practical for high-performance cabinet designs. A 102 mm bolt circle, four mounting holes and 35 mm horn exit support integration with compatible horns, including 1.4" horn applications that demand ultra-smooth extended high frequencies.
