The REDCATT 251TN is a compact 1.0" aluminum dome tweeter with a 4 Ohm impedance, neodymium motor, and small waveguide for limited-height designs, column arrays, and portable audio applications.
Â
Â

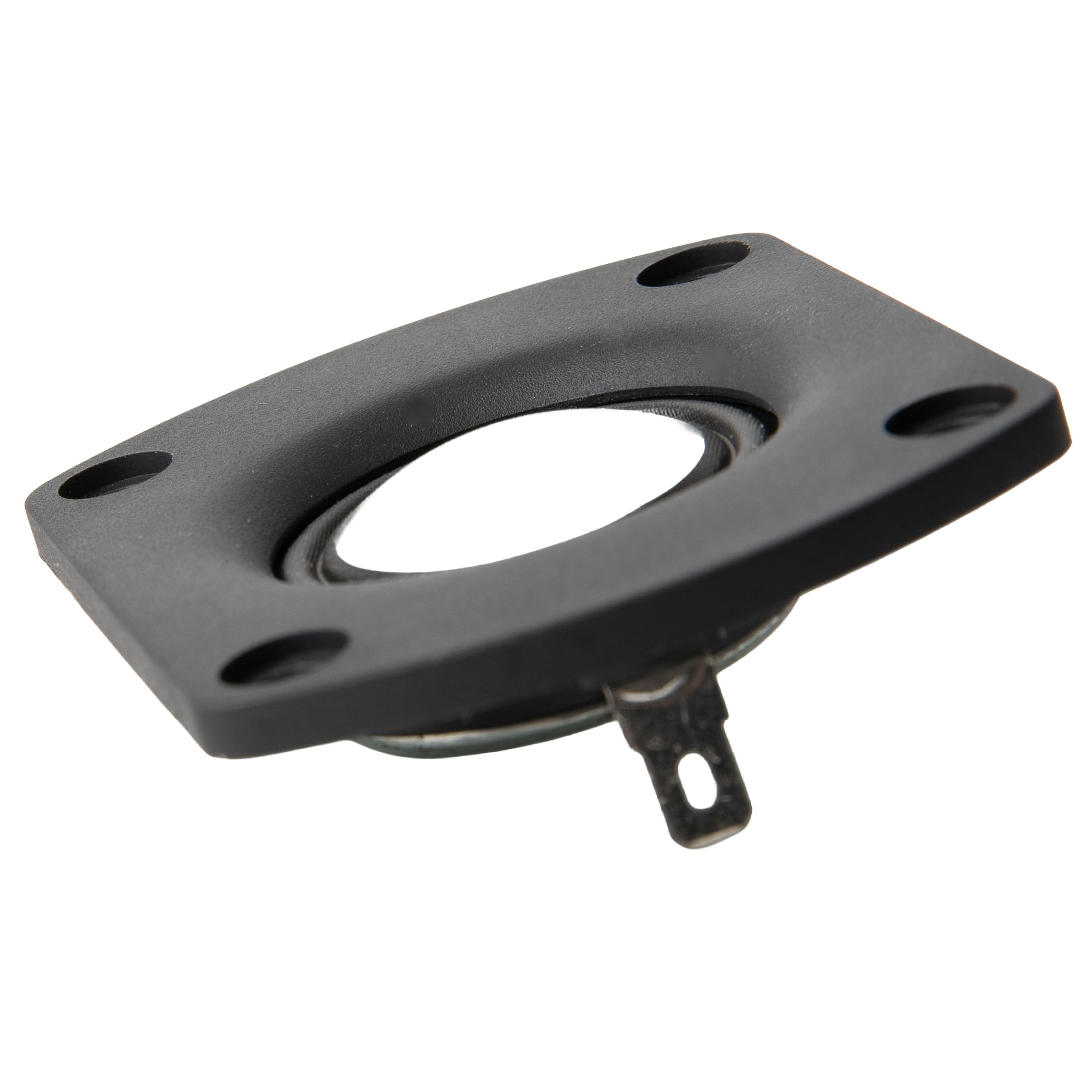

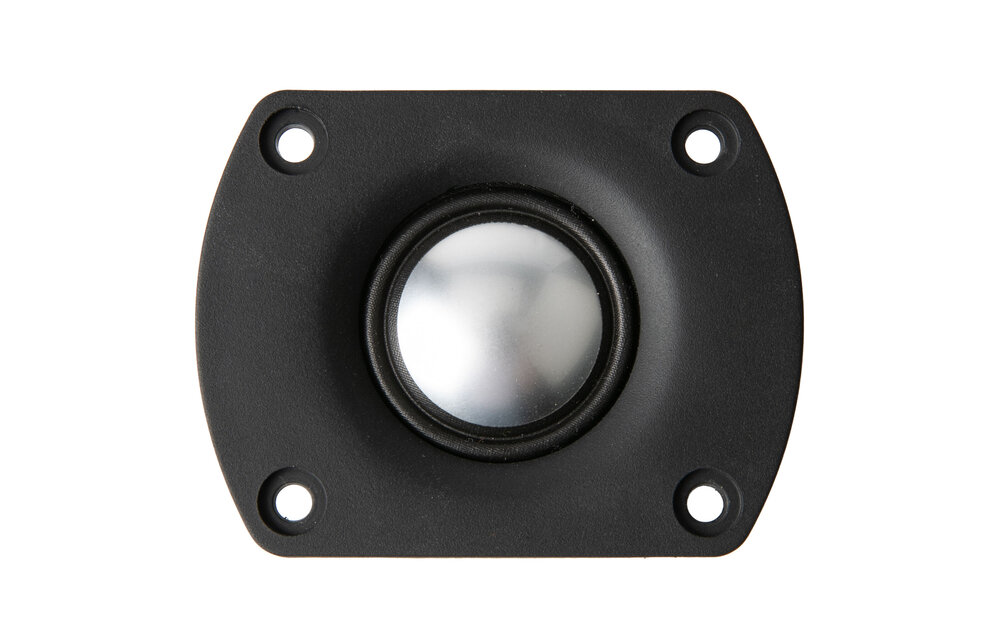

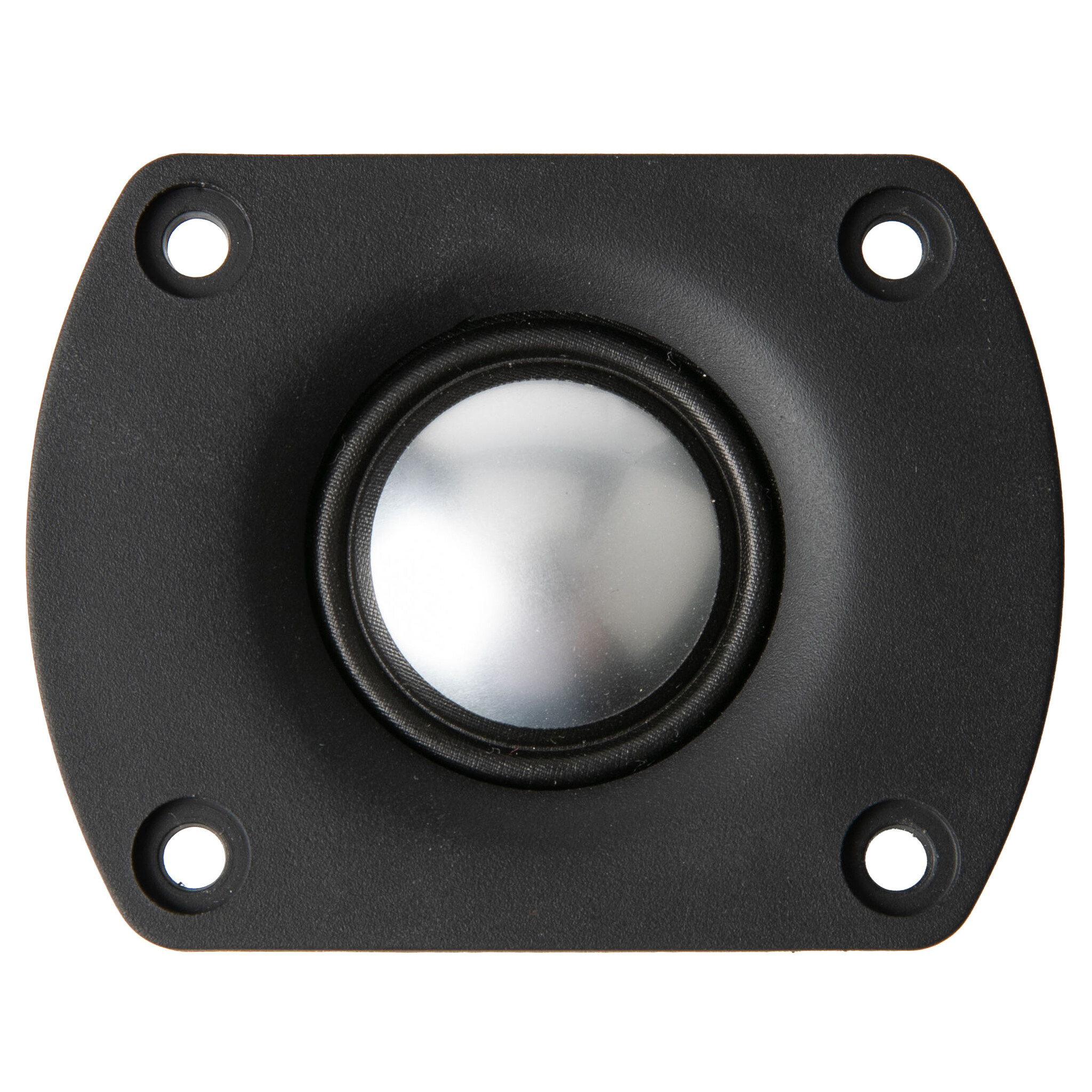

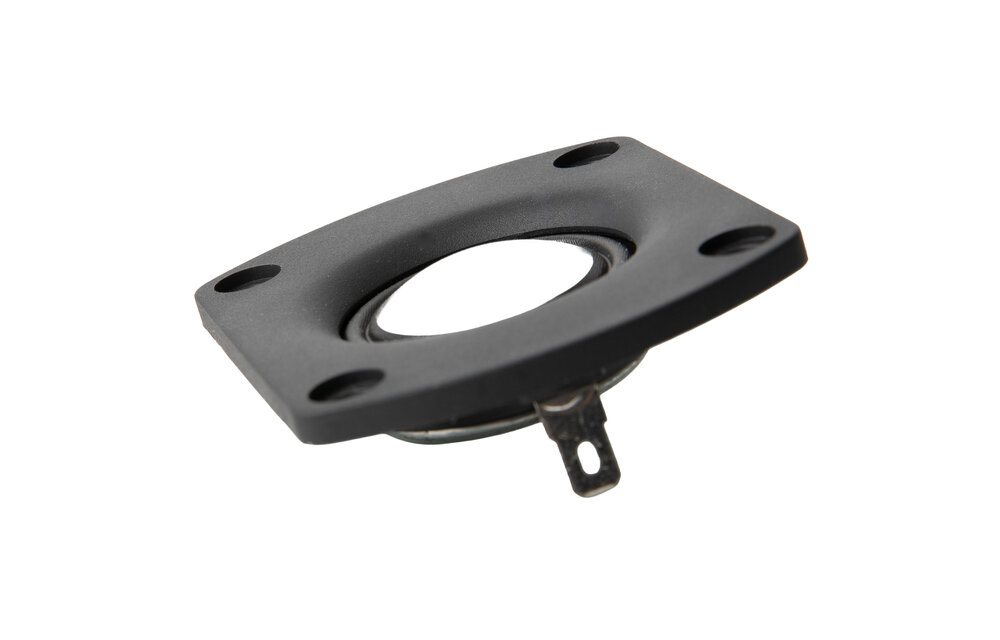

REDCATT 251TN 1.0" Aluminum Dome Tweeter 4 Ohm
Â
For DIY and OEM builders working with audio components, the REDCATT 251TN offers a compact high-frequency solution with a bright, clean character. Its aluminum dome is designed for extended high-frequency performance, while the poly-silk composite surround supports controlled dome movement.
Â

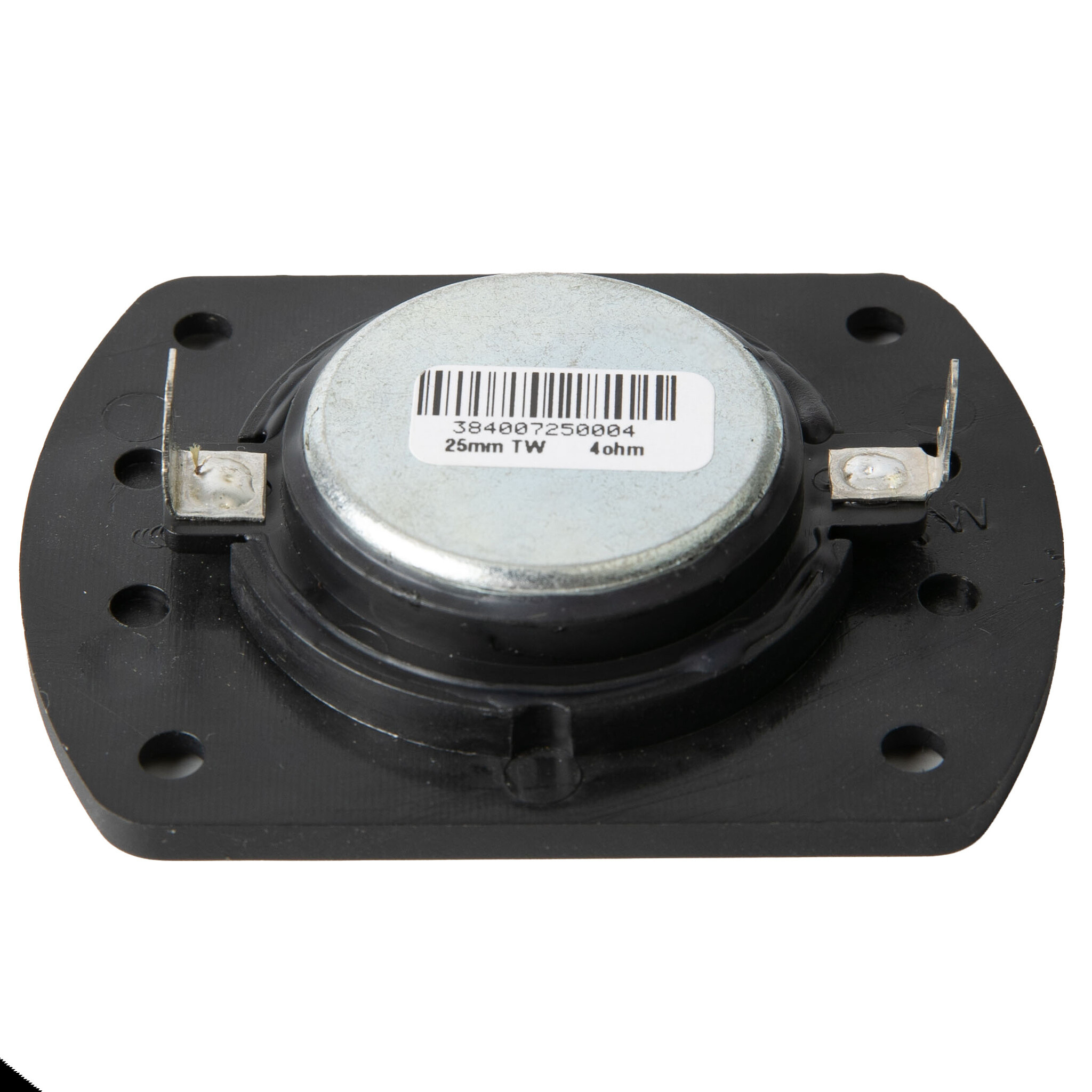

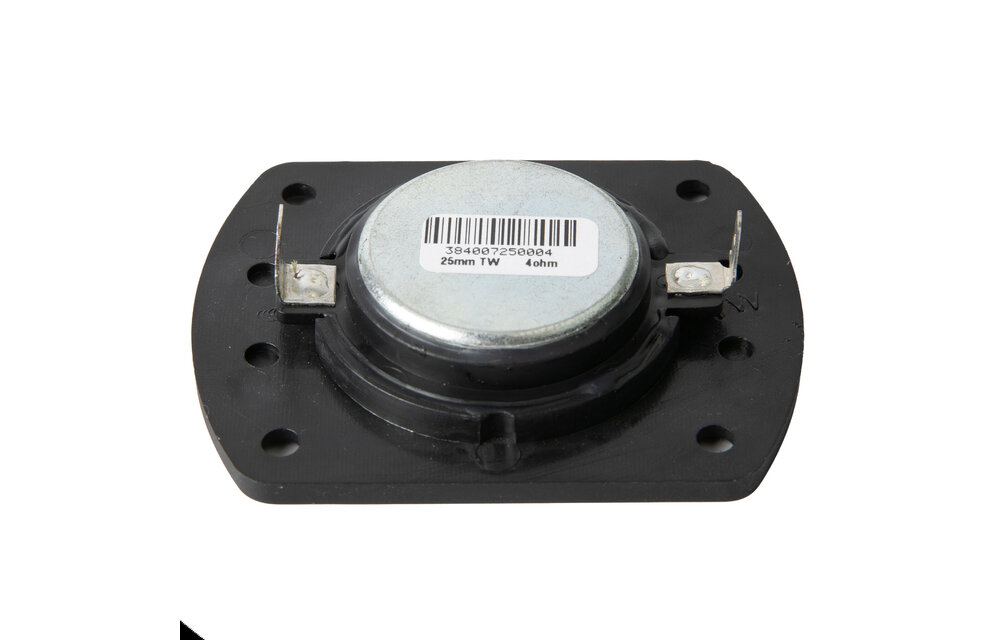

The 251TN uses a neodymium magnet system, making it well suited to lightweight and space-conscious speaker projects. As a compact dome tweeter, it is especially useful where high-frequency output needs to fit into a shallow or narrow front baffle.
Â
A small integrated waveguide helps simplify installation and makes the tweeter practical for limited-height products such as TV bars. The design also supports vertical stacking, allowing the 251TN to be used in array-style column layouts and other multi-driver high-frequency configurations.
Â
With 4 Ohm rated impedance, 90 dB sensitivity, and a resonant frequency of 1500 Hz, the 251TN fits compact PA 2-way tops, column arrays, portable PA systems, and commercial install designs. It handles 10 W AES power, 20 W continuous power, and 40 W peak power, with a mounting depth of 16.41 mm and four mounting holes for secure installation.
