Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.
Highlights
Product Details

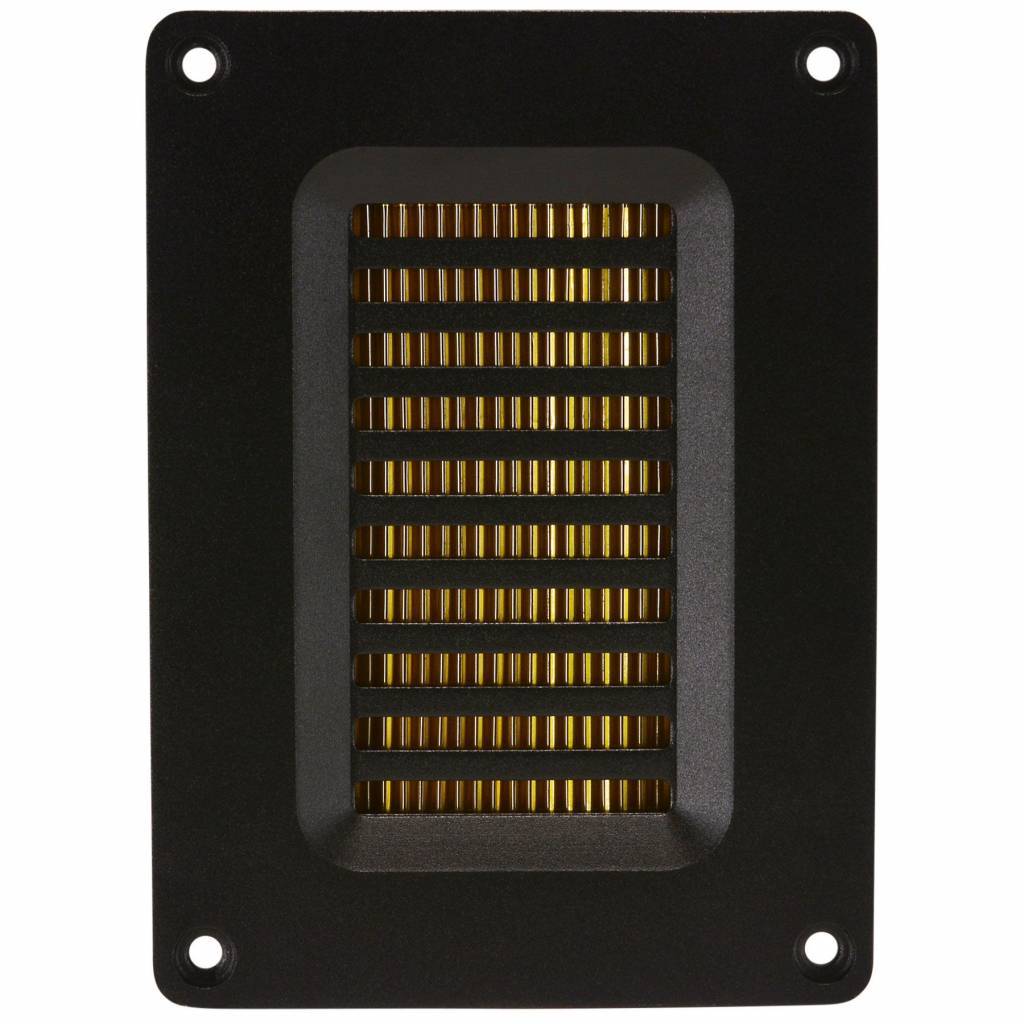

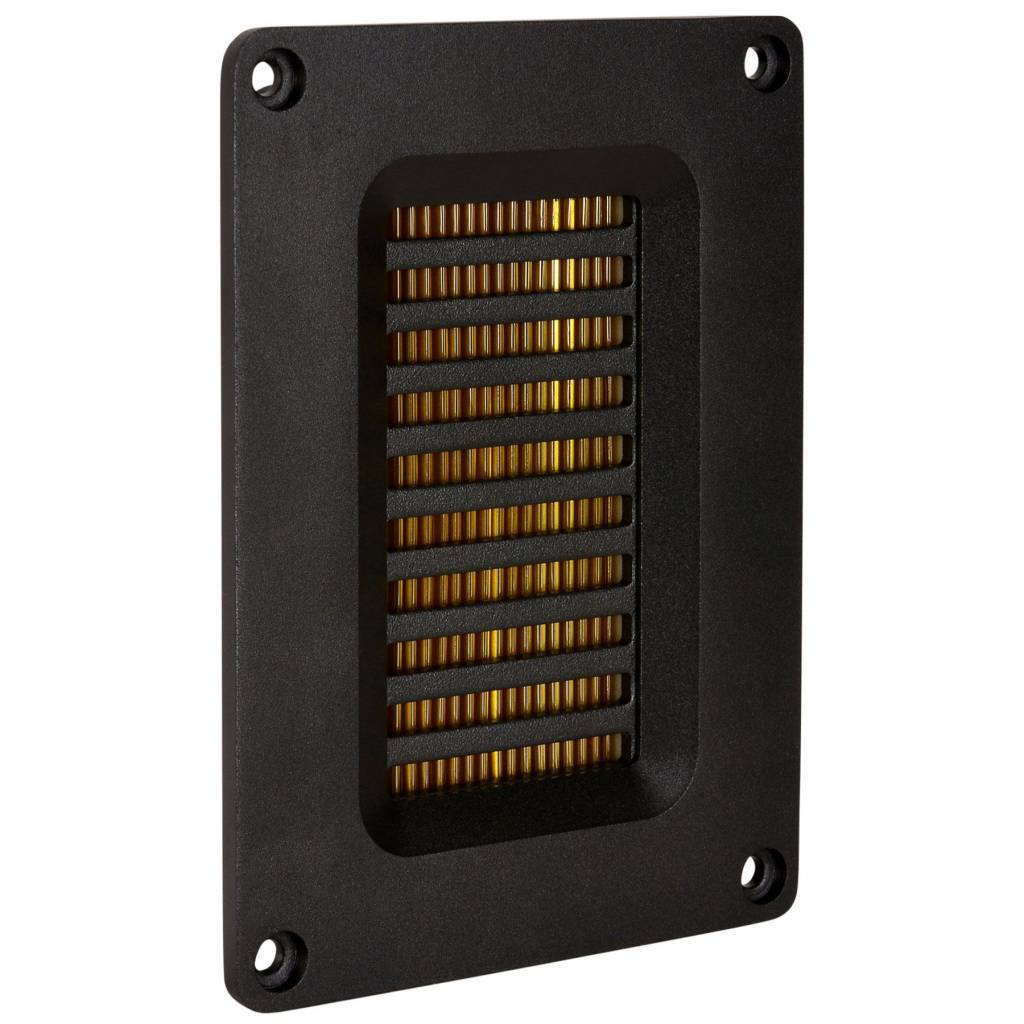

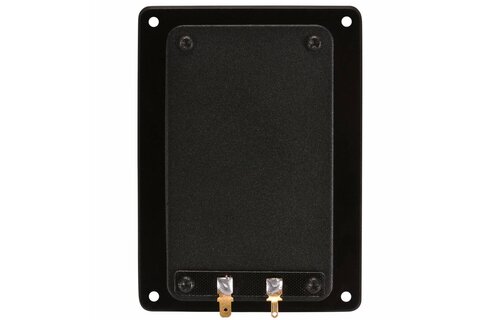

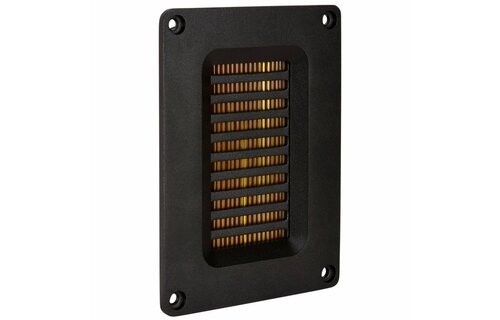

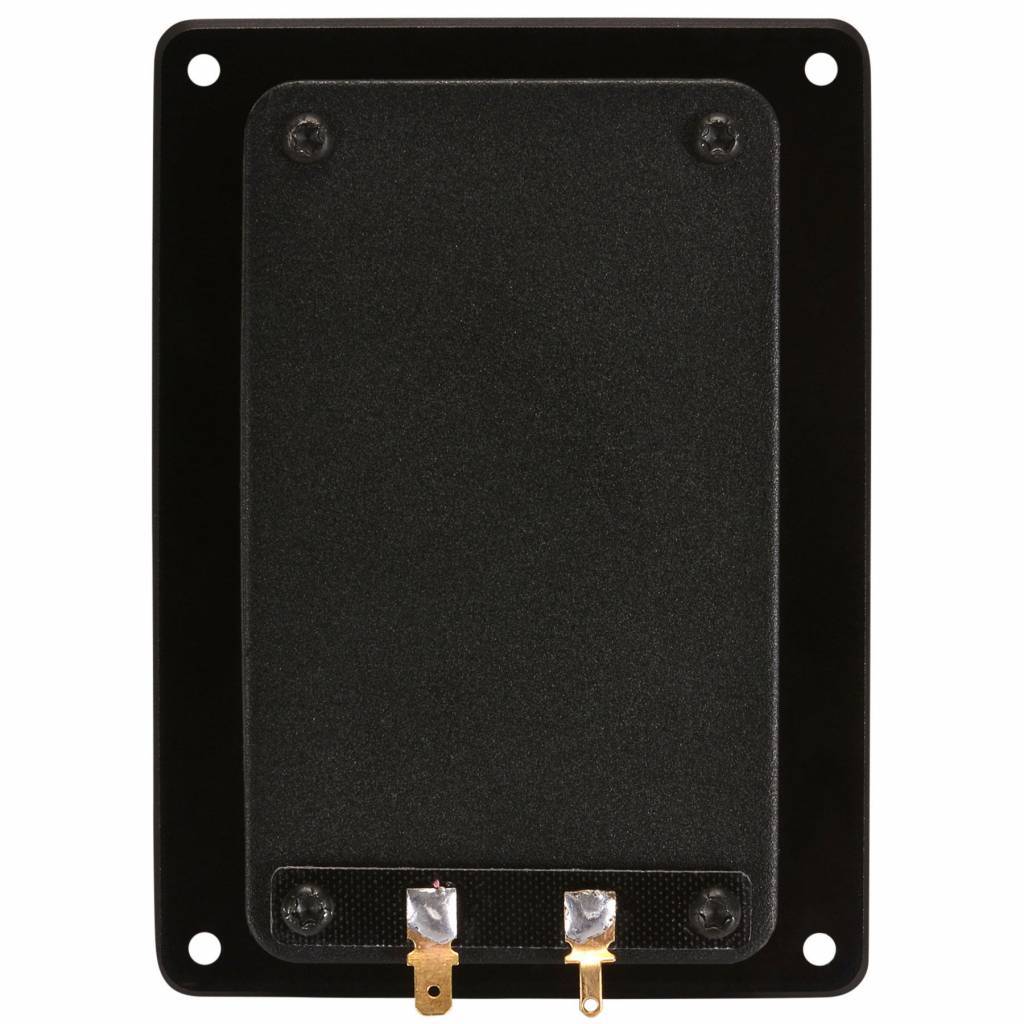

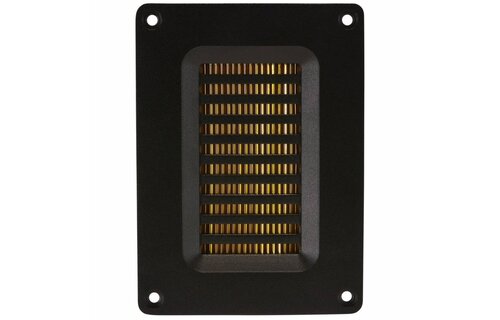

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm
The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.
Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.
Product Specifications
Tweeter Type | Air Motion Transformer (AMT) |
Impedance | 4 ohms |
Power Handling (RMS) | 25 Watts |
Frequency Response | 1,900 to 18,000 Hz |
Sensitivity | 93 dB 1W/1m |
Thiele-Small Parameters
Resonant Frequency (Fs) | 1,900 Hz |
DC Resistance (Re) | 3.00 ohms |
Mechanical Q (Qms) | 6.26 |
Total Q (Qts) | 6.15 |
Mounting Information
Overall Outside Diameter | 5.12" x 3.74" |
Cutout Diameter | 4.45" x 2.68" |
Depth | 0.75" |
