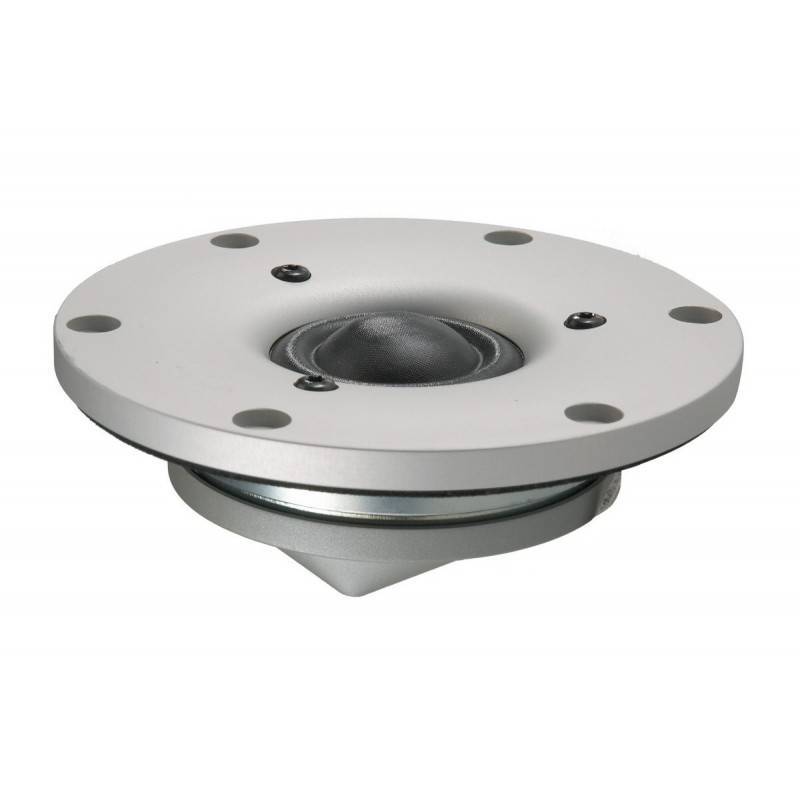

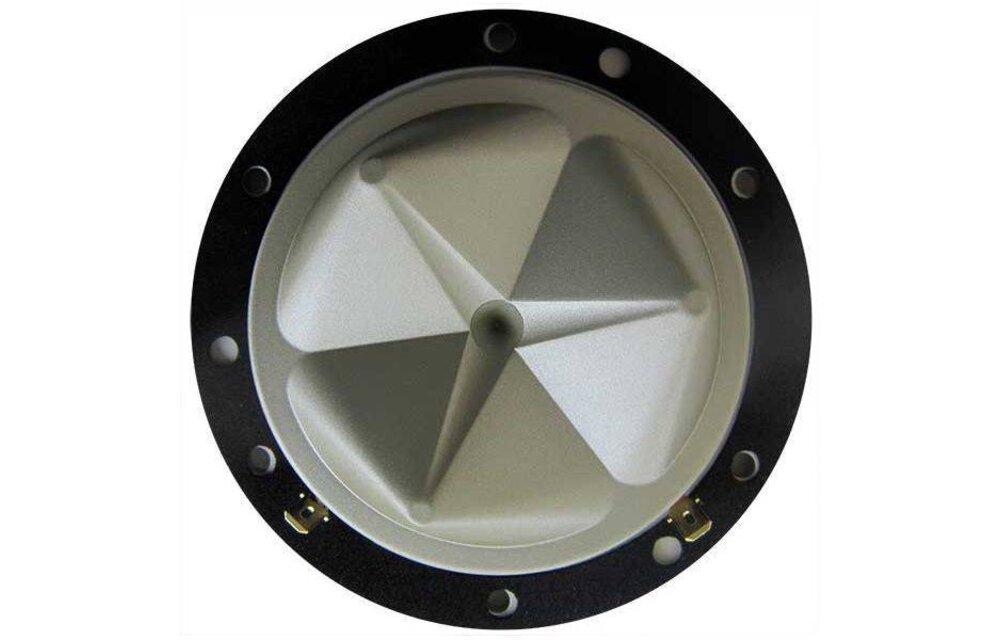

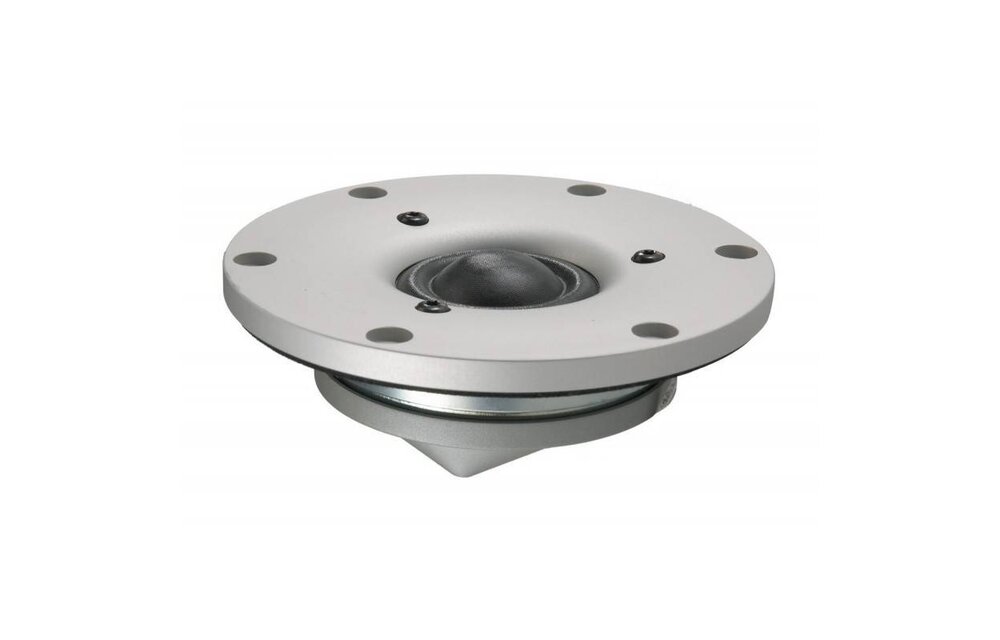

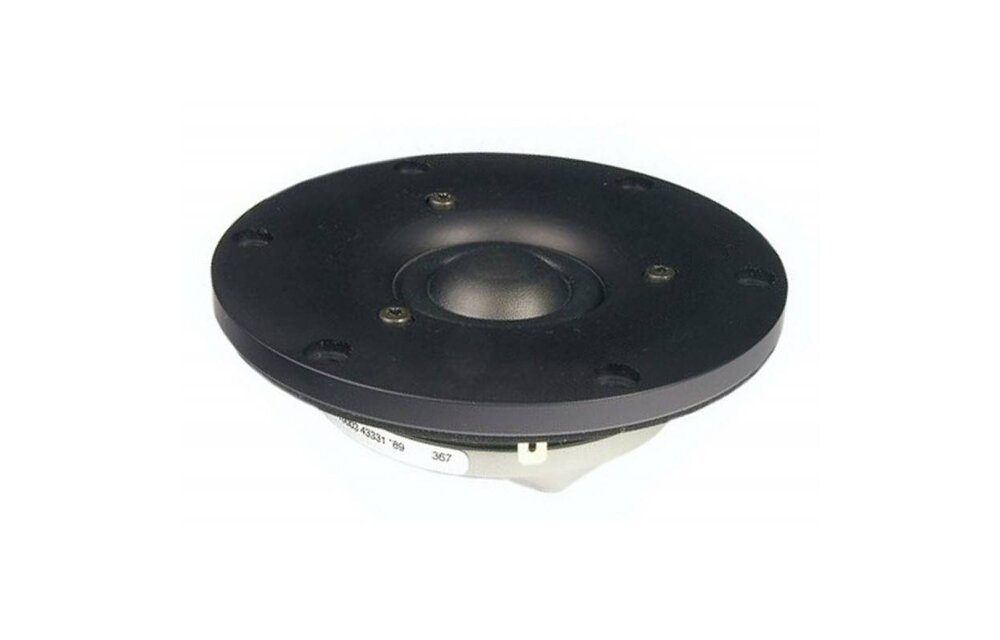

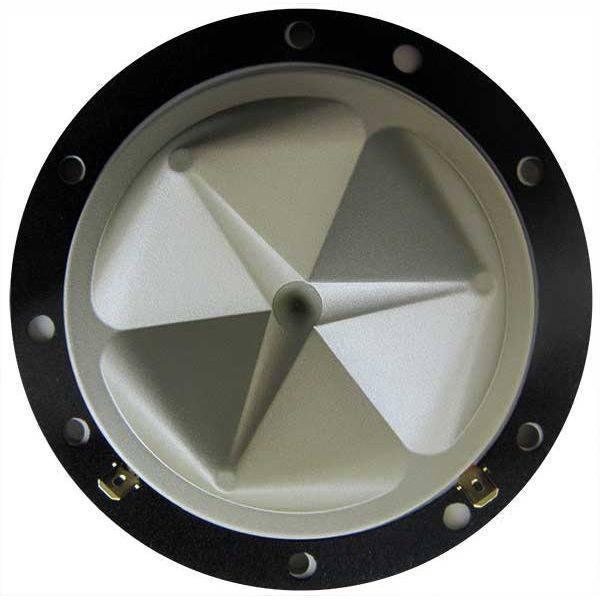

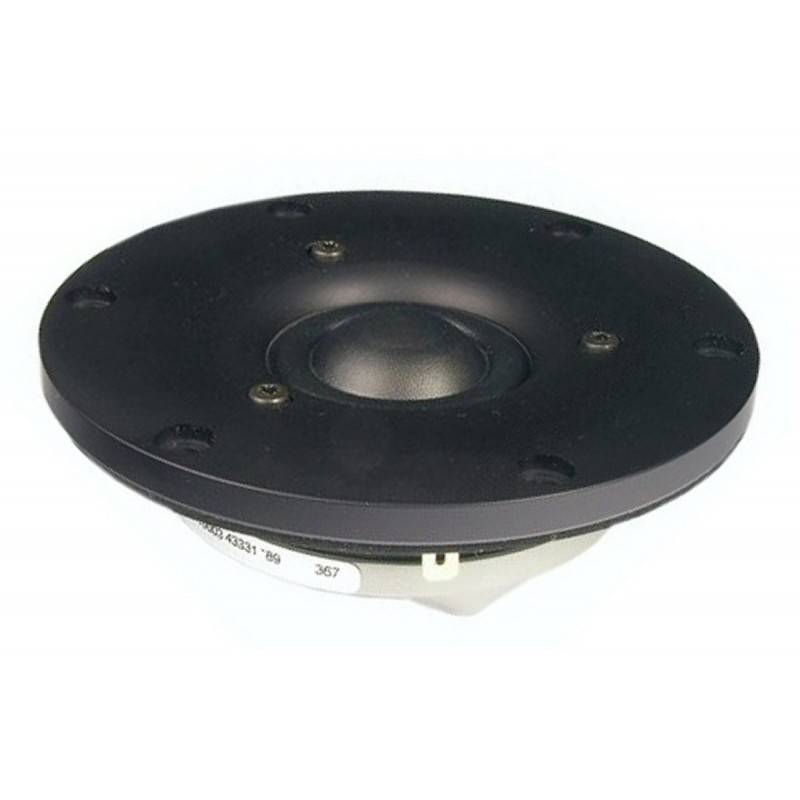

    Revelator D2904/710002 1" Coated Textile Dome Tweeter

    € 214,83€ 259,95 Niet op voorraad: neem contact met ons op voor de actuele levertijd

    The Scan-speak D2904-710002 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.
    The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth rol... Toon meer
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • 1" Coated Textile Diaphragm
    • Patented Symmetrical Drive (SD-2) motor
    • Non Resonant Alu Rear Chamber
    • Large Roll Surround for Wide Dispersion
    • Large Ring Neo Magnet for High Output
    • Silver Anodized Machined Alu Face Plate



    Product Details

    Scan-Speak Revelator D2904/710002 1" Coated Textile Dome Tweeter



    The Scan-speak D2904-710002 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.



    The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth roll off on the low end, making this tweeter an excellent choice for simple slopes. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



    PRODUCT SPECIFICATIONS

    Nominal Diameter

    1"

    Power Handling (RMS)

    90 Watts

    Power Handling (max)

    150 Watts

    Impedance

    4 ohms

    Frequency Response

    - Hz

    Sensitivity

    94.4 dB 2.83V/1m

    Voice Coil Diameter

    1.02"



    THIELE-SMALL PARAMETERS

    Resonant Frequency (Fs)

    520 Hz

    DC Resistance (Re)

    3 ohms

    Voice Coil Inductance (Le)

    0.01 mH

    Mechanical Q (Qms)

    3.50

    Electromagnetic Q (Qes)

    0.50

    Total Q (Qts)

    0.44

    Compliance Equivalent Volume (Vas)

    0.0007 ft.³

    BL Product (BL)

    2.8 Tm

    Mechanical Compliance of Suspension (Cms)

    0.23 mm/N

    Diaphragm Mass Inc. Airload (Mms)

    0.4g

    Maximum Linear Excursion (Xmax)

    0.2 mm

    Surface Area of Cone (Sd)

    7 cm2



    Specificaties

    Artikelnummer
    D2904/710003
