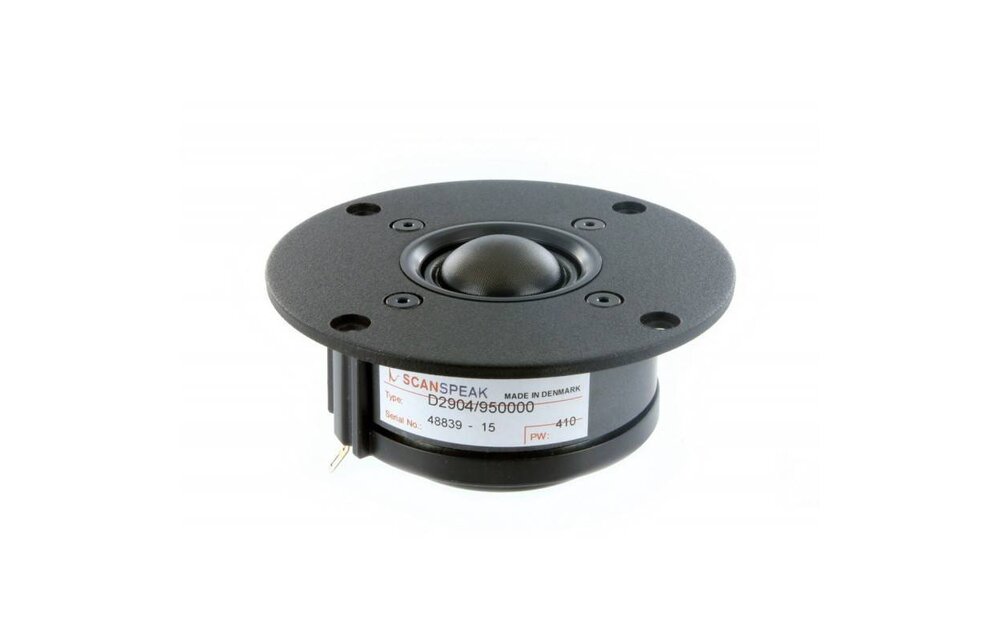

Scan-Speak Classic D2904/950000 1" Textile Dome Tweeter
The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and 9800. Despite their many years on the market still used in many top High-End speakers around the world.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 150 Watts |
Power Handling (max) | 430 Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 91 dB 2.83V/1m |
Voice Coil Diameter | 1.10" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 550 Hz |
DC Resistance (Re) | 3.5 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
Mechanical Q (Qms) | 1.47 |
Electromagnetic Q (Qes) | 0.53 |
Total Q (Qts) | 0.39 |
Compliance Equivalent Volume (Vas) | 0.0007 ft.³ |
BL Product (BL) | 3.2 Tm |
Mechanical Compliance of Suspension (Cms) | 0.19 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.45g |
Maximum Linear Excursion (Xmax) | 0.1 mm |
Surface Area of Cone (Sd) | 9.5 cm2 |
