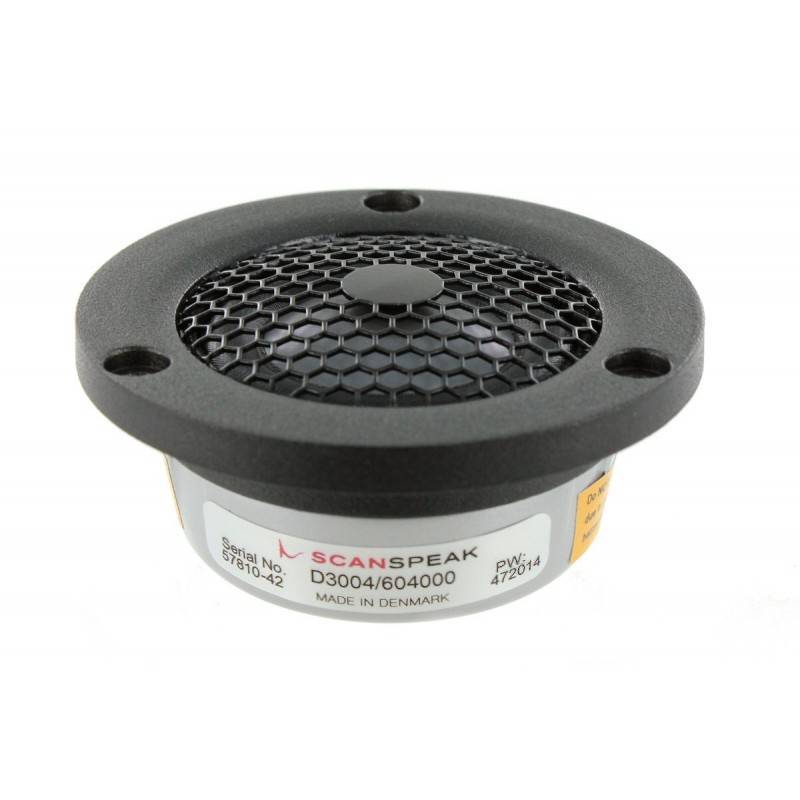

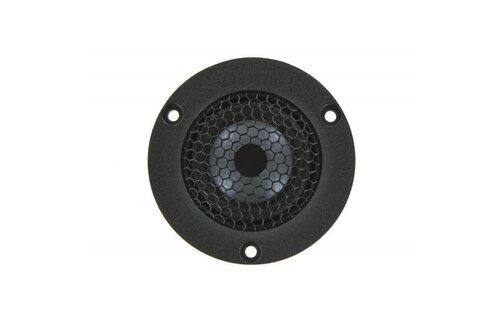

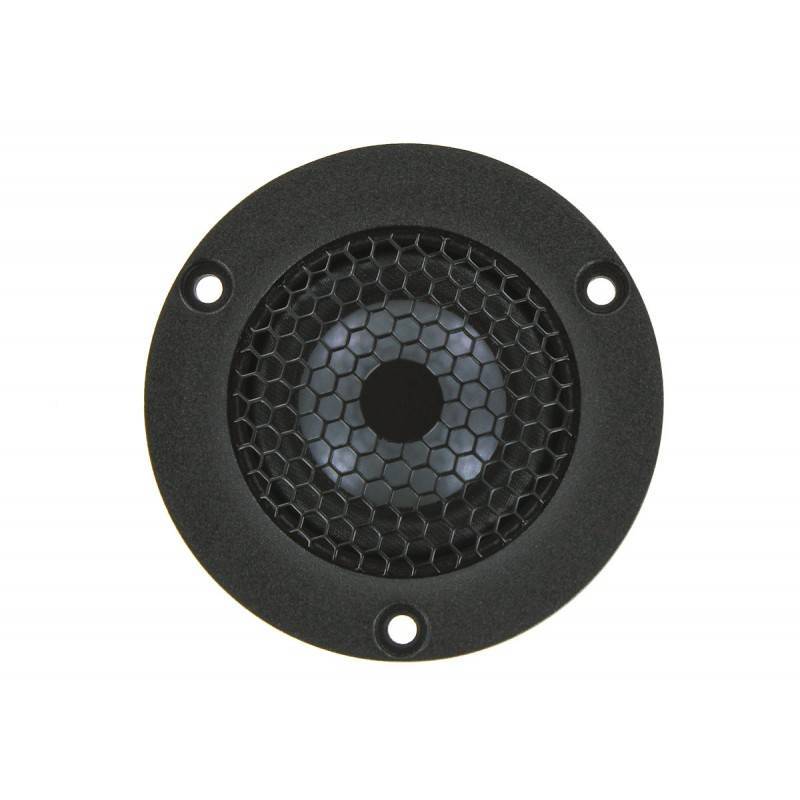

Scan-Speak Illuminator D3004/604000 1" Beryllium Dome Tweeter
This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterized by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound.
Indeed, the D3004/604000 sounds fantastic. It has very low distortion and a distinct clarity that brings out the best in all types of music. Some have described the sound as holographic. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.
The D3004-604000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | - Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 90.9 dB 2.83V/1m |
Voice Coil Diameter | 1.02" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 750 Hz |
DC Resistance (Re) | 2.85 ohms |
Voice Coil Inductance (Le) | 0.03 mH |
Mechanical Q (Qms) | 4.02 |
Electromagnetic Q (Qes) | 2.18 |
Total Q (Qts) | 1.41 |
Compliance Equivalent Volume (Vas) | 0.0003 ft.³ |
BL Product (BL) | 1.20 Tm |
Mechanical Compliance of Suspension (Cms) | 0.19 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.24g |
Maximum Linear Excursion (Xmax) | 0.2 mm |
Surface Area of Cone (Sd) | 7 cm2 |
