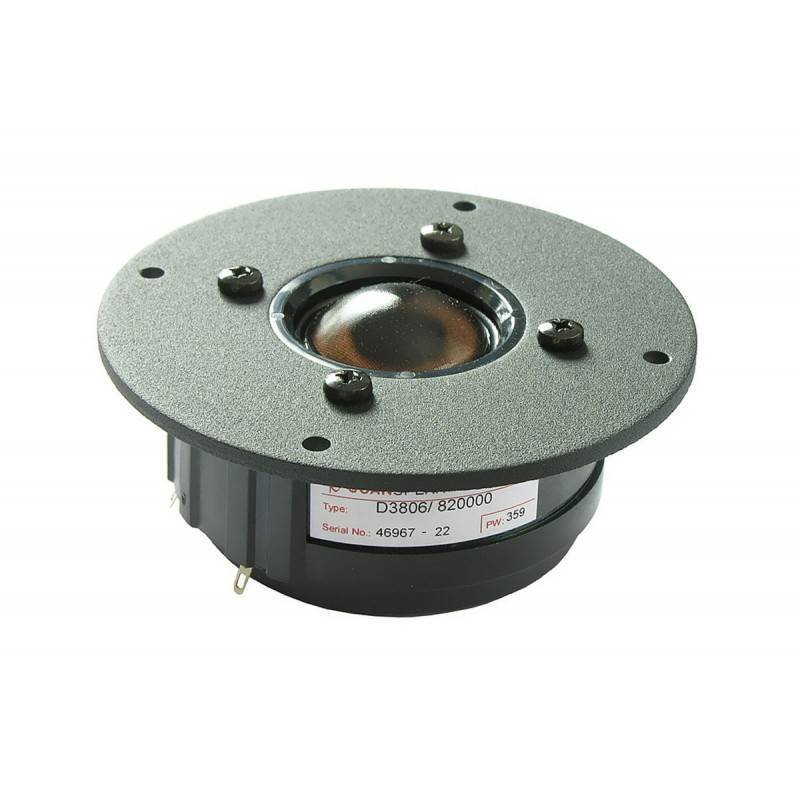

Scan-Speak Classic D3806/820000 1.5" Textile Dome Tweeter
The Classic line consists of all the highly regarded transducers that have been appraised and loved by so many customers over the years. The goal has been to assemble all the diamonds, developed over the years, speakers that fully live up to the heritage of the brand.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1.5" |
Power Handling (RMS) | 100 Watts |
Power Handling (max) | - Watts |
Impedance | 6 ohms |
Frequency Response | - Hz |
Sensitivity | 89 dB 2.83V/1m |
Voice Coil Diameter | 1.49" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 450 Hz |
DC Resistance (Re) | 5.7 ohms |
Voice Coil Inductance (Le) | 0.04 mH |
Mechanical Q (Qms) | 0.93 |
Electromagnetic Q (Qes) | 1.00 |
Total Q (Qts) | 0.48 |
Compliance Equivalent Volume (Vas) | 0.001 ft.³ |
BL Product (BL) | 3.6 Tm |
Mechanical Compliance of Suspension (Cms) | 0.16 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.8g |
Maximum Linear Excursion (Xmax) | 0.4 mm |
Surface Area of Cone (Sd) | 14 cm2 |
