miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.
Hightlights
- 400MHz 32bit Sharc Floating point processor
- Dirac Live technology helps tune your cabin environment
- 32bit DAC/ADC chipsets
- THD+N 0.0007%, 115dB SNR
- Digital and analog inputs (Low/High levels), 12 analog outputs
- Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
- Fully differential balanced inputs
- Windows/Mac compatible GUI
- Remote control or preset/master & sub volume control
Product Specifications

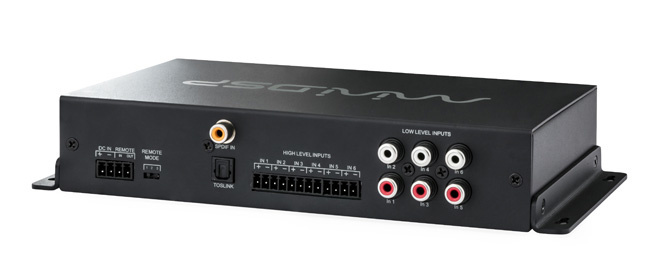

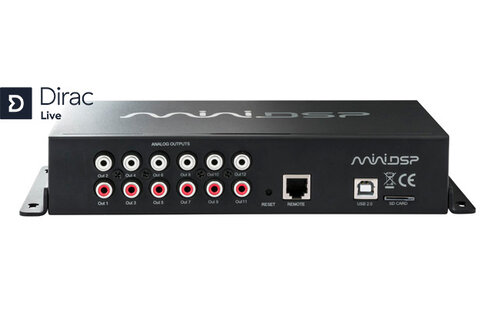

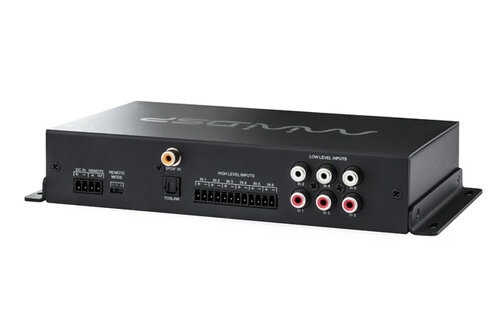

miniDSP C-DSP 8x12 DL in-car digital audio processor
Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.
miniDSP is proud to introduce the new flagship C-DSP 8x12 DL in-car digital audio processor. Dirac Live® room correction, a 400 MHz SHARC floatingpoint processor and 32-bit AKM converters with –107 dB THD+N specification deliver pristine high-resolution audio in any cabin environment. Comprehensive I/O includes six differential low-level analog inputs for low noise pickup, high-level inputs for connection to head units with power amplification, and stereo SPDIF and TOSLINK digital inputs. On the output side, 12 RCA outputs combined with a full eight channels of Dirac Live processing make the C-DSP 8x12 DL adaptable for active crossover systems as well as multichannel/surround installations with subwoofer integration.
Also included is miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete configurations are stored in flash memory for recall with a wired or infrared remote. Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting and a microSD card slot for offline configuration.
What's in the box?
- 1 x C-DSP 8x12 DL processor
- 1 x USB cable
- 1 x remote unit
- 1 x 5m long remote cable
- 1 x Coupon code for miniDSP plugin download and Dirac Live license
- harness for I2S In/Out interfacing
