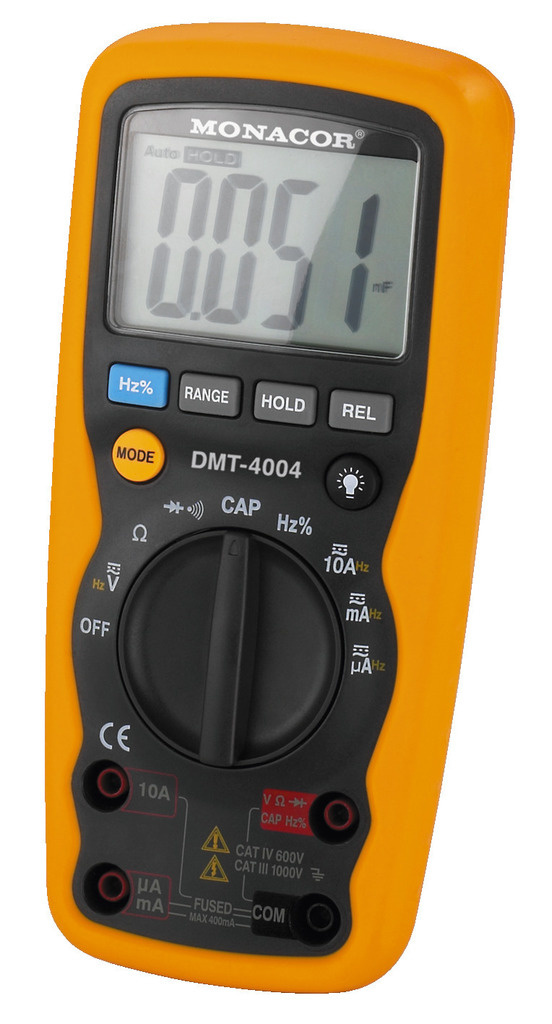

DMT-4004 Digital Multimeter For Pro Applications

Name: Monacor DMT-4004 Digital Multimeter For Pro Applications
Brand: Monacor
Price: 66.45 EUR
Availability: InStock

Toon alle Accessoires

Merk: Monacor

Vergelijk

€ 54,92€ 66,45 1 Op voorraad expected on //doc.soundimports.nl/pdf/brands/Monacor/DMT-4004/pdf_monacor_DMT-4004_2.pdf

Digital multimeter, for professional applications.... Toon meer

Verzending altijd verzekerd en met track & trace
Voor 16u besteld, vandaag verstuurd
Gratis verzending vanaf €99
In-house technische support

Productomschrijving

Highlights

Protected against dust and water according to IP67 when test jacks are covered
Autoranging for faster measurements
Resolution: 4,000 digits, basic accuracy: 0.5%
Voltage measurement: up to DC current /˜ 1,000 V
Current measurement: up to DC current /˜ 10 A
Frequency measurement: up to 10 MHz
Resistance measurement: up to 40 MΩ
Capacitance measurement: up to 200 µF
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Reference value measurements
LCD with selectable backlight
Automatic switch-off
Overload protection
Supplied with test leads and protective bag

Product details

Monacor DMT-4004 Digital Multimeter For Pro Applications

Measuring ranges:

Temperature:	1 range	-20 °C to +760 °C /-4 °F to +1400 °F - type K sensor
Capacitance:	6 ranges	40 nF-200 µF
Frequency:	7 ranges	9,999 Hz-9,999 MHz
Resistance:	6 ranges	400 Ω-40 MΩ
Current:	5 ranges	DC 400 µA-10 A ˜ 400 µA-10 A
Voltage:	5 ranges	DC 400 mV-1,000 V ˜ 400 mV-1,000 V

Special features: diode test and continuity test, hold function, IP67

Specifications: Weight: 490 g • Power supply: 9 V battery (not supplied) • Dimensions: 83 x 180 x 54 mm incl. rubber holster • Admiss. ambient temp.: 0-50 °C • Display: 29 mm LCD, 3 ¾ digits • Range selection automatic/manual
