MRH-300 315 x 315mm Constant Directivity Horn

Name: Monacor MRH-300 315 x 315mm Constant Directivity Horn
Brand: Monacor
Price: 72.95 EUR
Availability: InStock

Toon alle Accessoires

Merk: Monacor

Vergelijk

€ 60,29€ 72,95 2 Op voorraad expected on //doc.soundimports.nl/pdf/brands/Monacor/MRH-300/pdf_monacor_MRH-300_2.pdf

Robust 315 x 315mm constant directivity horn with 25mm throat and 35.6 mm (1.4") flange connection with standard 4-hole screw connection... Toon meer

Verzending altijd verzekerd en met track & trace
Voor 16u besteld, vandaag verstuurd
Gratis verzending vanaf €99
In-house technische support

Productomschrijving

Robust 315 x 315mm constant directivity horn with 25mm throat and 35.6 mm (1.4") flange connection with standard 4-hole screw connection

Highlights

1’’ throat diameter
CD design (constant directivity)
Low-resonance horn design

Product details

Monacor MRH-300 315 x 315mm Constant Directivity Horn

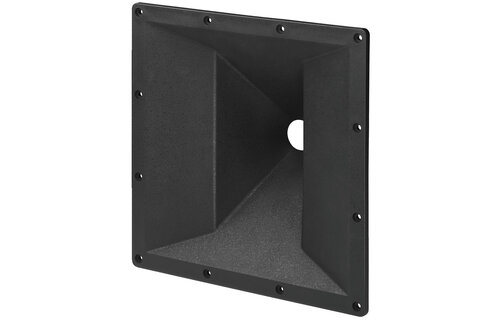

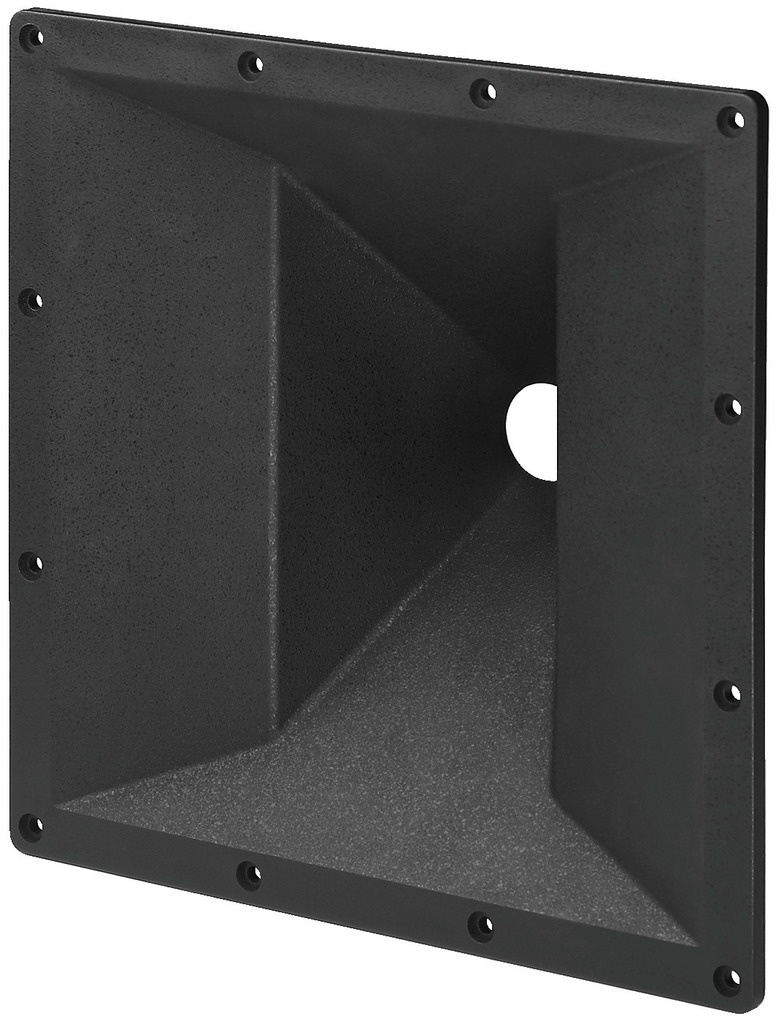

The Monacor MRH-300 is a constant directivity horn made out of 8mm glass fiber reinforced ABS plastic, thus suppressing possible resonances. The square design makes it possible for the horn to be mounted both horizontally and vertically. It has an effective throat diameter of 25mm 35.6 mm (1.4") flange connection with standard 4-hole screw connection (Ø 101.6 mm). Measuring 315 x 315 mm, it provides useful acoustical loading down to 1000Hz.

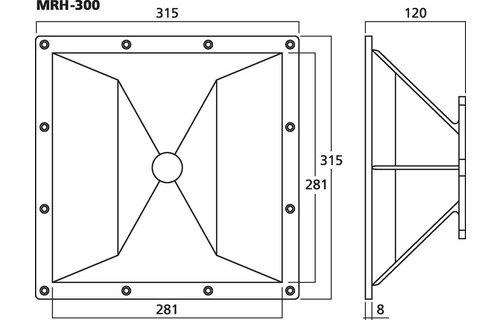

Dimensions: 315 x 315 x 120 mm (W x H x D)

Cutoutdimensions: 281 x 281 (W x H)

Radiationangle: 40°/90°

Recommended minimum crossover frequency: 1 kHz
