Tymphany's OX20SC00-04 tweeter features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate.
Highlights
Product Details

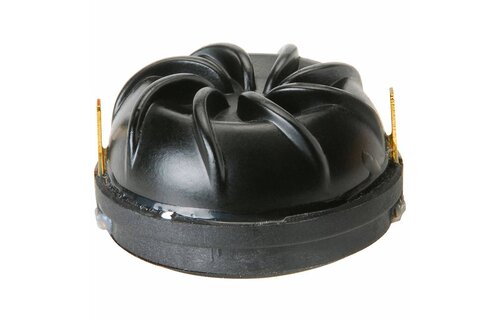

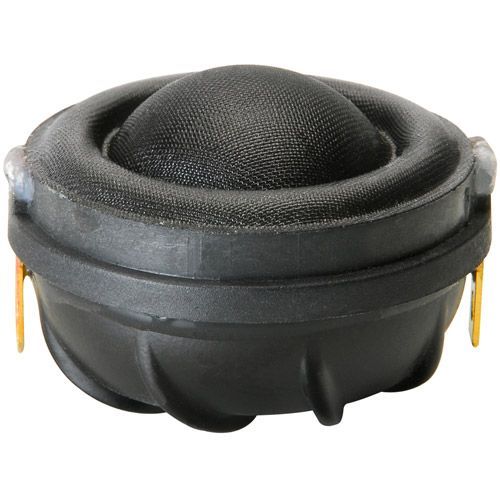

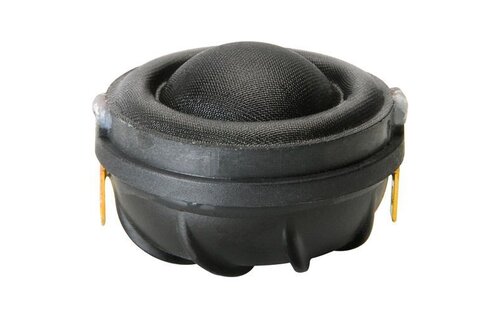

Peerless by Tymphany OX20SC00-04 3/4" Fabric Dome Tweeter
This OX family tweeter features a 19 mm diameter 4 ohm voice coil, a damped silk diaphragm with large surround roll, a neodymium magnet motor to produce a compact motor, and a metal rear chamber to provide both a lower resonant frequency and added heat sinking for power handling capacity. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 3/4" |
Impedance | 4 ohms |
Power Handling (RMS) | 20 Watts |
Frequency Response | 2200 to 28,000 Hz |
Sensitivity | 90 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,060 Hz |
DC Resistance (Re) | 3.20 ohms |
Voice Coil Inductance (Le) | 0.01 mH |
Mechanical Q (Qms) | 7.72 |
Electromagnetic Q (Qes) | 1.70 |
Total Q (Qts) | 1.39 |
MOUNTING INFORMATION
Overall Outside Diameter | 1.31" |
Depth | 0.92" |
