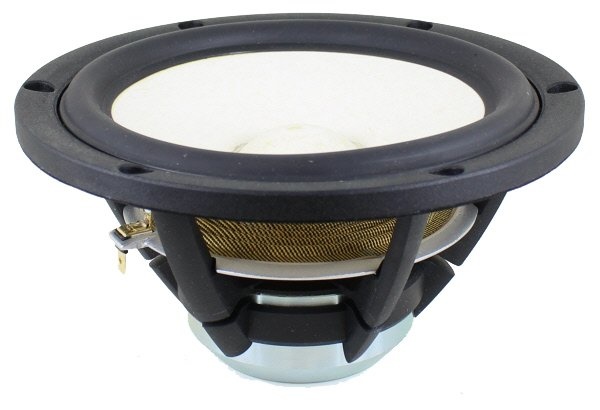

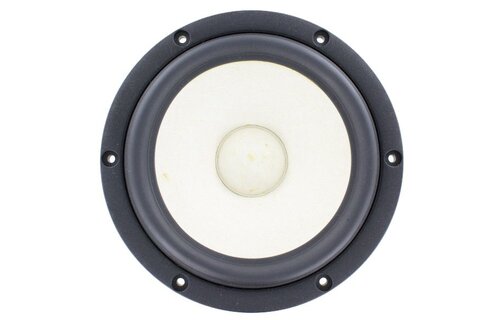

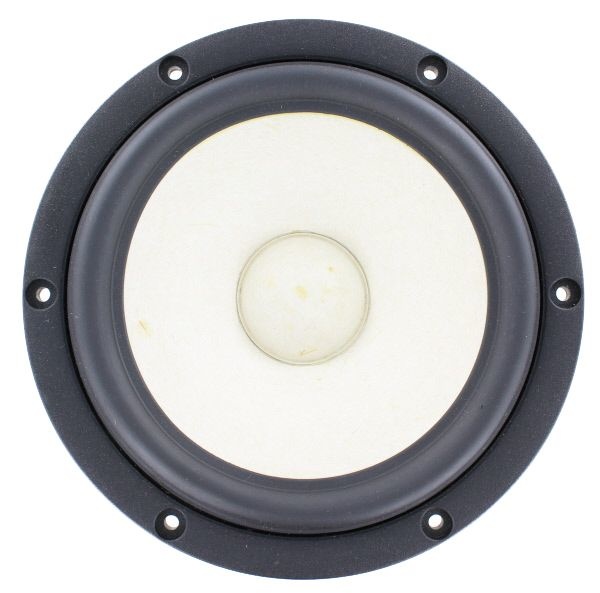

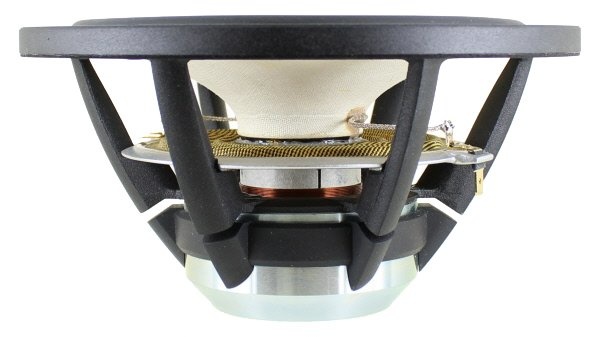

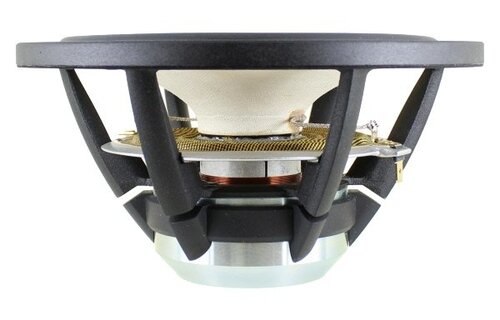

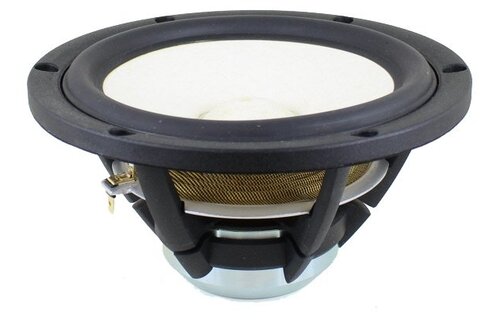

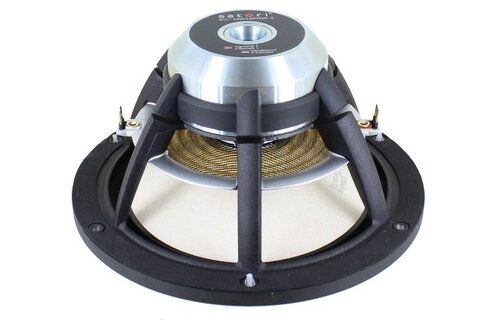

SB Acoustics Satori MW16PNW-4 White Egyptian Reed Cone Woofer
Under the Satori brand are two new 5” and 6.5” midrange drivers, MR13P-4 and MW16PNW-4, respectively, featuring black or natural white cones using Egyptian Papyrus fibers produced in house with a proprietary method, combined with soft low damping rubber surrounds for optimum transient response and low resonance frequency. The cones reveal the natural textures of the papyrus material imported from Egypt, resulting in a distinctive appearance, which will certainly be appreciated for high-end speakers.
For these new Satori drivers, the original ideal was to keep the natural finish of the Papyrus fibers as much as possible, which results in a light brown color. Since Papyrus fibers are not uniform, the cone shows visible spots of different colors which give it a look of a natural “organic” material - but the discussion about potential problems in the market arising from the wrong perception that those were “defects” or signs of an “old” driver, led the design team to also create a black version of the same cone. The fibers are still visible, but for more traditional clients, it might be better accepted.
PRODUCT SPECIFICATIONS
Nominal Diameter | 6" |
Power Handling (RMS) | 60 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 91 dB 2.83V/1m |
Voice Coil Diameter | 1.41" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 28 Hz |
DC Resistance (Re) | 3.4 ohms |
Voice Coil Inductance (Le) | 0.2 mH |
Mechanical Q (Qms) | 4.5 |
Electromagnetic Q (Qes) | 0.29 |
Total Q (Qts) | 0.27 |
Compliance Equivalent Volume (Vas) | 1.82 ft.³ |
BL Product (BL) | 5 Tm |
Mechanical Compliance of Suspension (Cms) | 2.62 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 12.2 g |
Maximum Linear Excursion (Xmax) | 6 mm |
Surface Area of Cone (Sd) | 119 cm2 |
