SB26ADC-C000-4 Aluminum Dome Tweeter
- Verzending altijd verzekerd en met track & trace
- Voor 16u besteld, vandaag verstuurd
- Gratis verzending vanaf €99
- In-house technische support
Highlights
Product Details

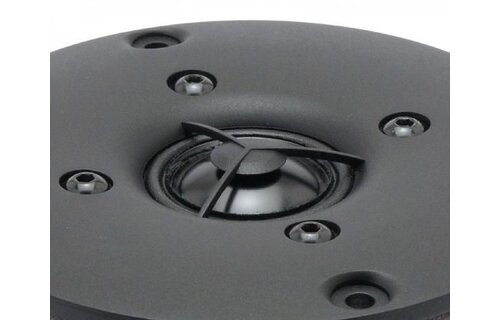

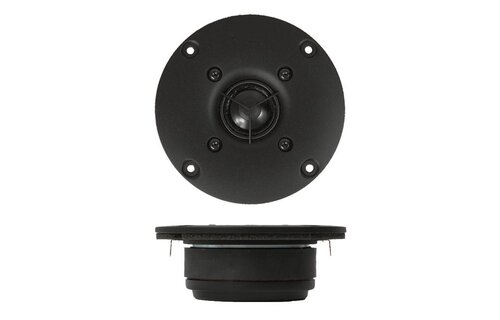

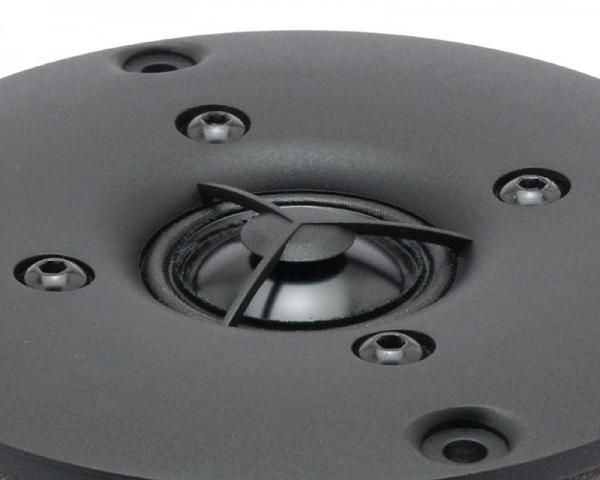

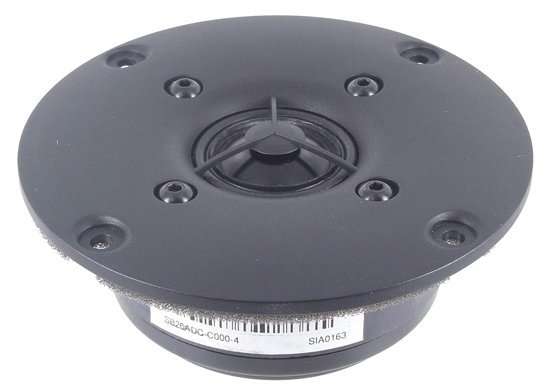

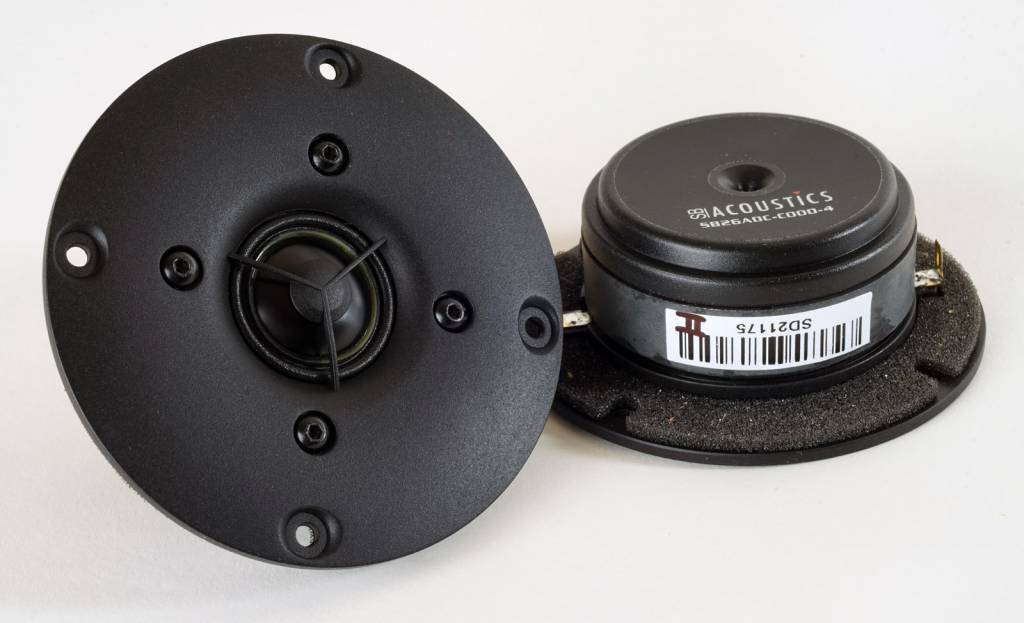

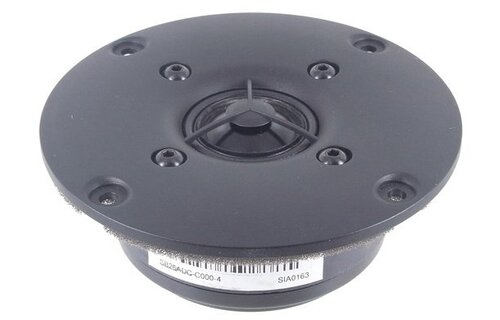

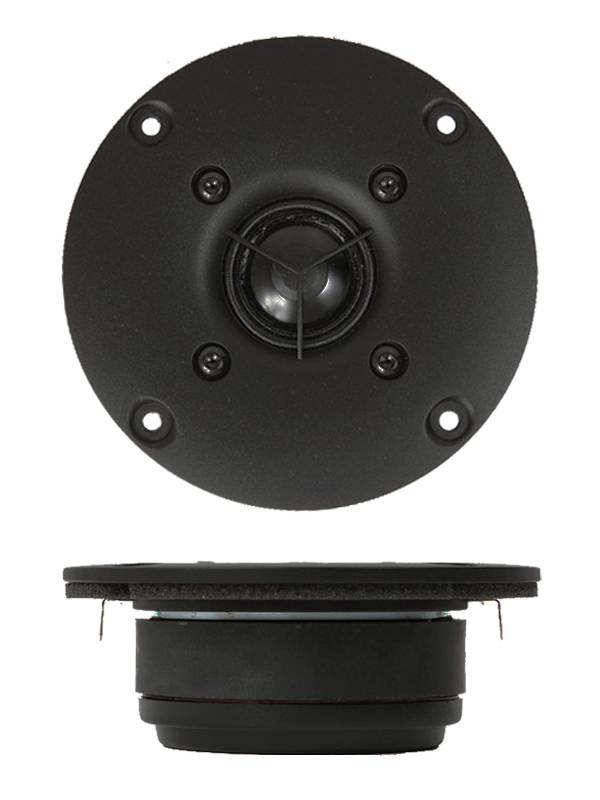

SB Acoustics SB26ADC-C000-4 Aluminum Dome Tweeter
The dome and surround have been designed to push the "break-up" to frequencies beyond the audible range. This tweeter has all the detail that a metal dome provides without the objectionable break-up.
PRODUCT SPECIFICATIONS
Nominal Diameter | -" |
Power Handling (RMS) | 120 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 90 dB 2.83V/1m |
Voice Coil Diameter | 1" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 680 Hz |
DC Resistance (Re) | 3.2 ohms |
Voice Coil Inductance (Le) | 0.04 mH |
Mechanical Q (Qms) | 2.9 |
Electromagnetic Q (Qes) | 2 |
Total Q (Qts) | 1.2 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | 1.6 Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.38g |
Maximum Linear Excursion (Xmax) | 0.6 mm |
Surface Area of Cone (Sd) | 6.2 cm2 |
Er zijn nog geen reviews geschreven over dit product..
