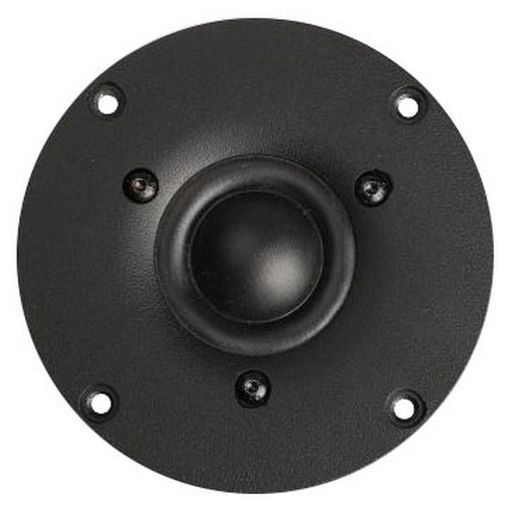

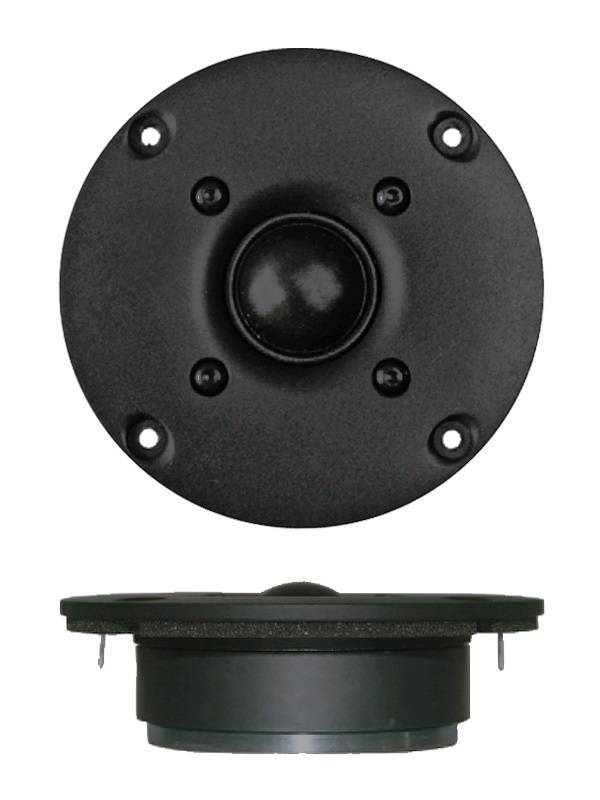

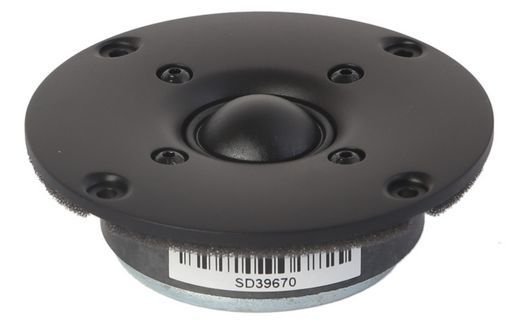

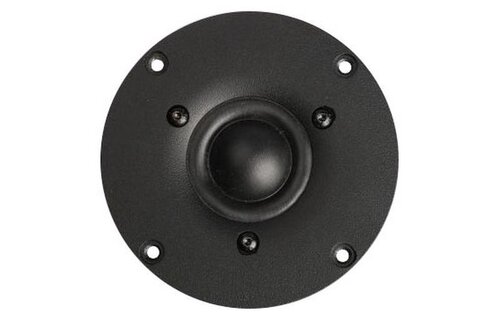

SB Acoustics SB26ST-C000-5 1'' Tweeter
Optimized damping in pole cavity to eliminate internal reflection. Fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 80 Watts |
Power Handling (max) | - Watts |
Impedance | 5 ohms |
Frequency Response | - Hz |
Sensitivity | 91 dB 2.83V/1m |
Voice Coil Diameter | 1" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 870 Hz |
DC Resistance (Re) | 4.4 ohms |
Voice Coil Inductance (Le) | 0.07 mH |
Mechanical Q (Qms) | 5 |
Electromagnetic Q (Qes) | 1.64 |
Total Q (Qts) | 1.24 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | 2.2 Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.33g |
Maximum Linear Excursion (Xmax) | 0.6 mm |
Surface Area of Cone (Sd) | 6.2 cm2 |
