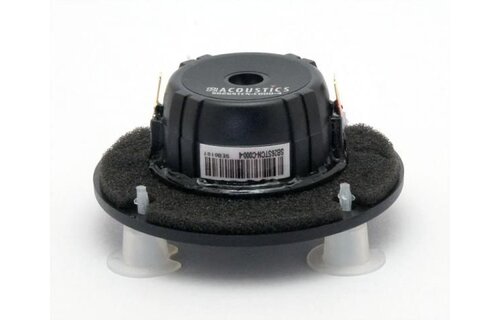

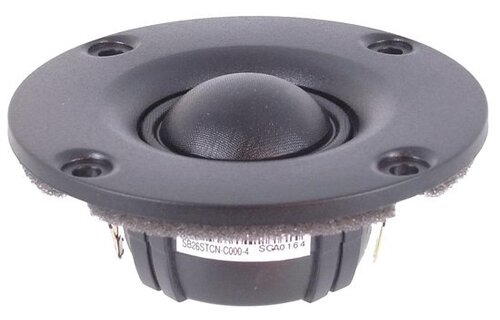

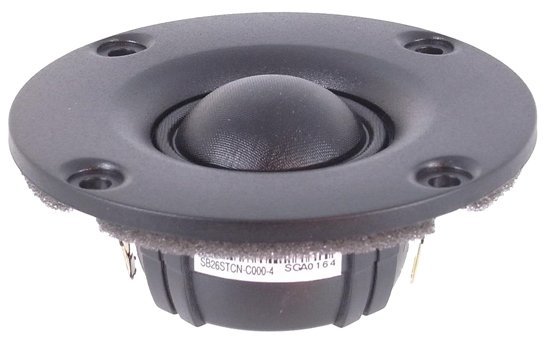

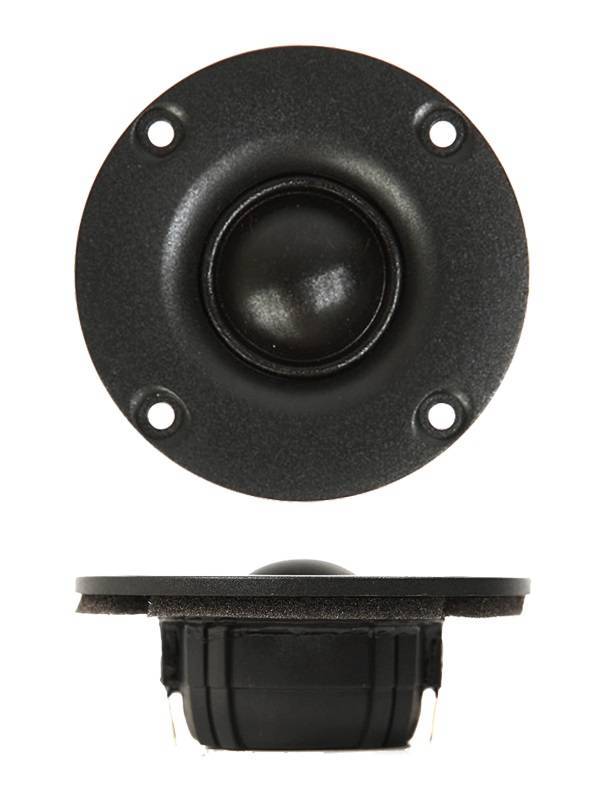

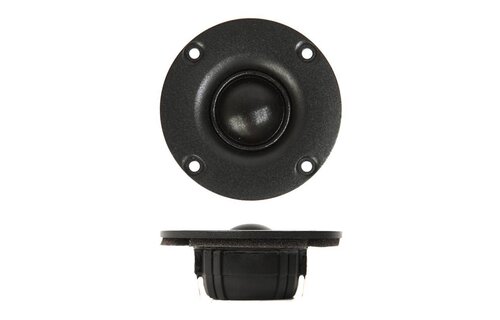

SB Acoustics SB26STCN-C000-4 1'' Tweeter
SB Acoustics SB26STCN-C000-4 Tweeter has a Neodymium magnet (unusual in this price range). Its copper cap pole piece, coated textile dome, 1” voice coil and the small 72mm OD proprietary face plate give it a partially loaded horn profile. Highly linear response. Useful high efficiency output at 92dB sensitivity.
Complete with a rear chamber reducing both Fs (950Hz) and back wave reflections from the dome.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 120 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 92 dB 2.83V/1m |
Voice Coil Diameter | 1" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 950 Hz |
DC Resistance (Re) | 3.2 ohms |
Voice Coil Inductance (Le) | 0.04 mH |
Mechanical Q (Qms) | 1.8 |
Electromagnetic Q (Qes) | 2 |
Total Q (Qts) | 0.9 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | 1.7 Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.3g |
Maximum Linear Excursion (Xmax) | 0.6 mm |
Surface Area of Cone (Sd) | 6.2 cm2 |
