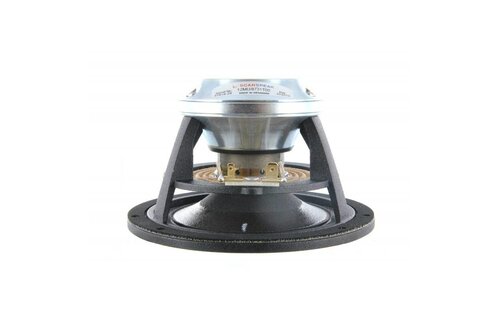

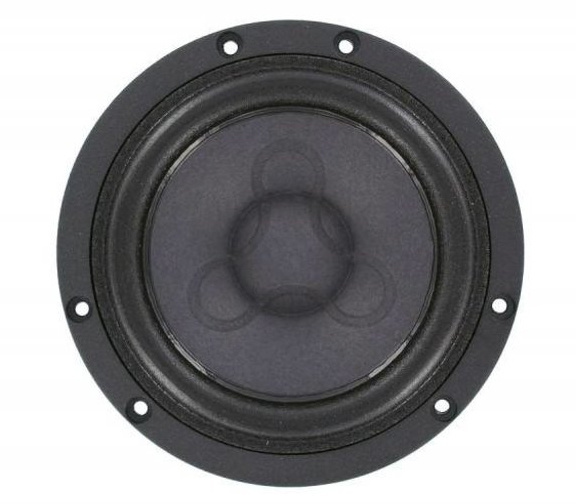

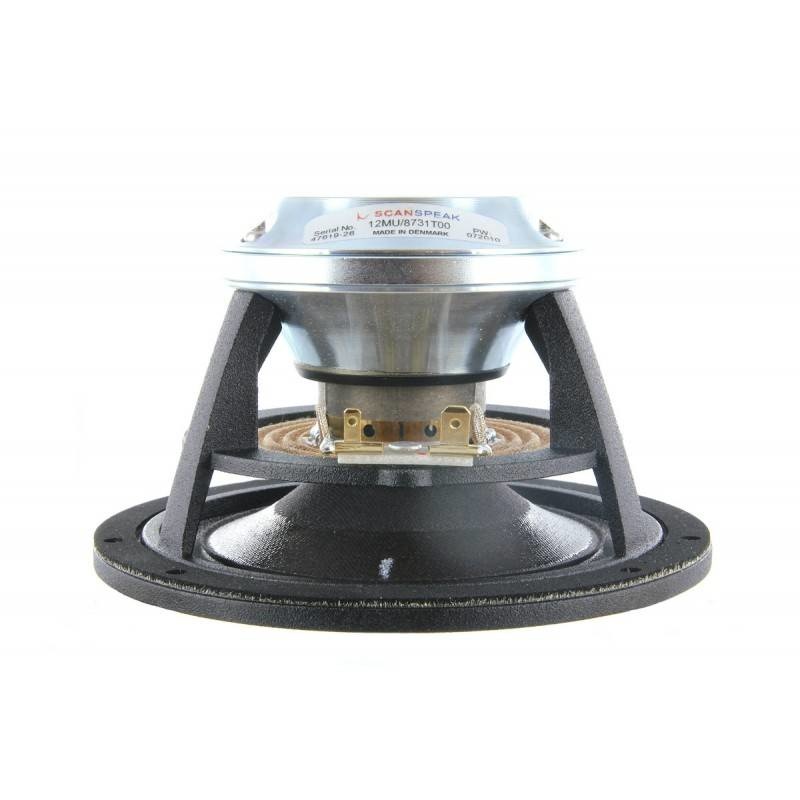

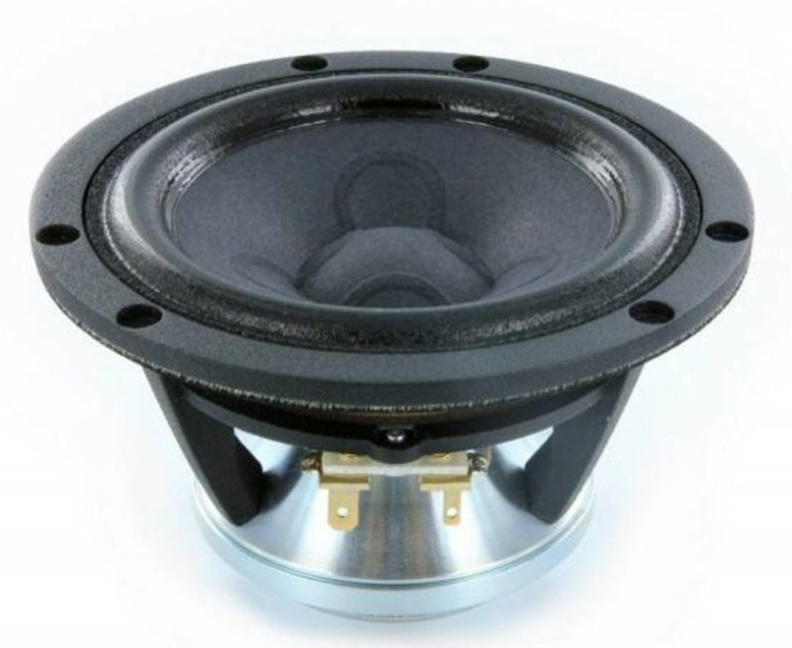

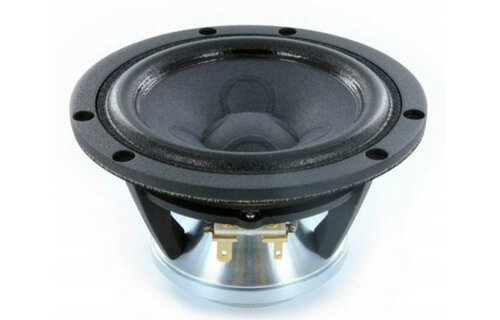

Illuminator 12MU/8731T00 4" Woofer

Name: Scan-Speak Illuminator 12MU/8731T00 4" Woofer
Brand: Scan-Speak
Price: 273.45 EUR
Availability: InStock

Toon alle Audio componenten

Merk: Scan-Speak

Vergelijk

€ 225,99€ 273,45 2 Op voorraad

The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside a... Toon meer

Verzending altijd verzekerd en met track & trace
Voor 16u besteld, vandaag verstuurd
Gratis verzending vanaf €99
In-house technische support

Productomschrijving

Highlights

Neodymium magnet
Under hung motor system
One piece cone and dust cap, full cone technology
Very Wide Frequency Response 100-10KHz
Patented Symmetrical Drive (SD-3)
Low-loss Linear Suspension
Foam surround
High Output 87dB @ 2,83V

Product details

Scan-Speak Illuminator 12MU/8731T00 4" Woofer

The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.
