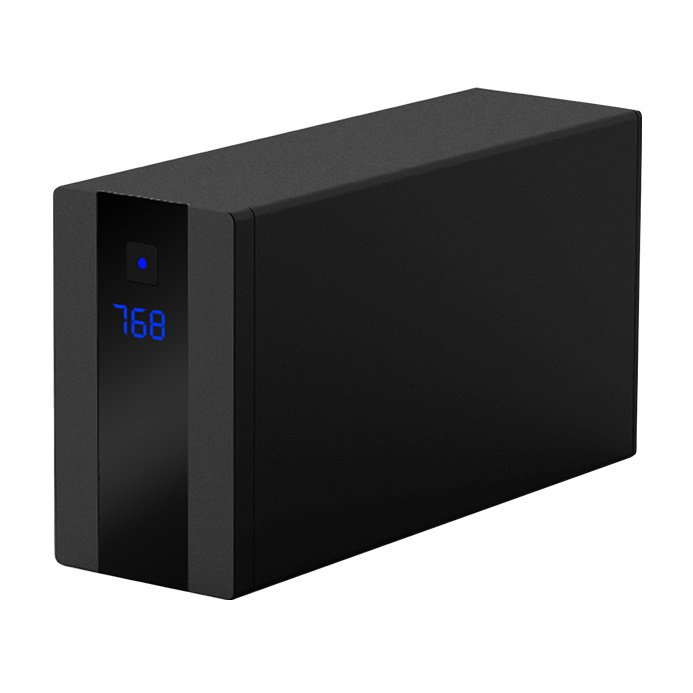

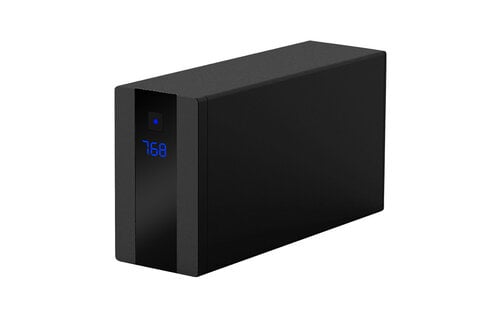

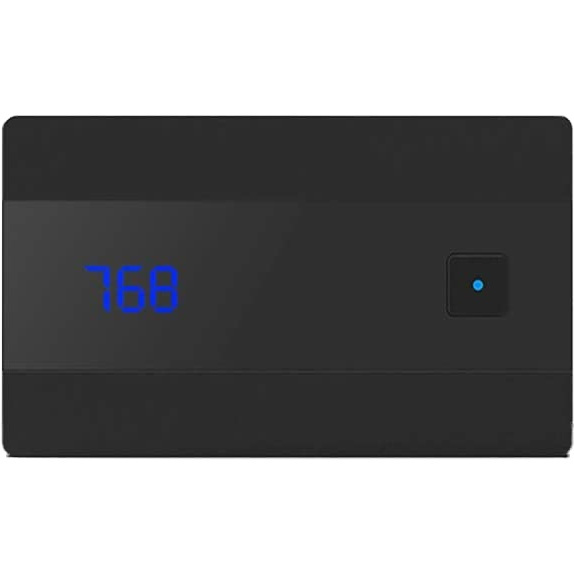

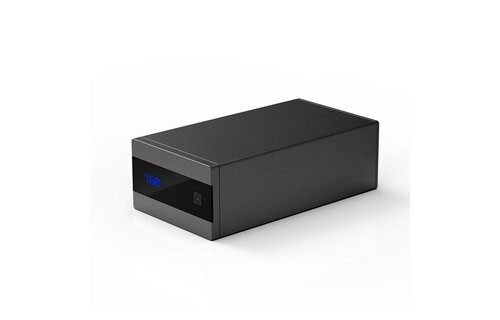

SMSL Sanskrit 10th anniversary edition, high-end DAC within a professional shape design that uses an anodized CNC aluminum alloy housing. This DAC is designed to take up minimal desktop space without compromising on performance. It supports the 'three display mode' through the built-in digital accelerometer so it automatically switches the orientation of the display.

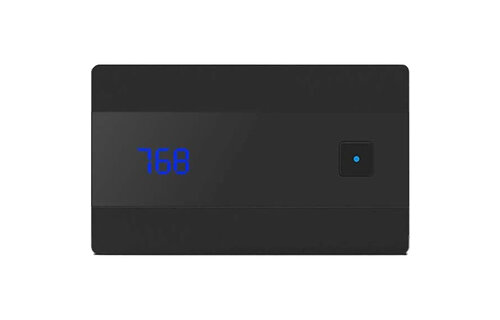

SMSL Sanskrit 10th MKII Small desktop AK4493 Audio DAC
Ultra-tiny shape design and supports a variety of placement ways. The second-generation XMOS solution supports the sampling rate up to 32bit/384KHz and DSD256. The two pieces of Japanese ultra-low phase noise clocks, greatly reducing the system JITTER and the AKM's new AK4493 chip, and carefully adjusted it to an unprecedented 0.0002%. The built-in gravity sensor automatically switches the screen. Built-in high-performance power filtering system, so that it can achieve the best performance using only one USB interface for power supply.
Package Contents
1 x DAC Sanskrit 10th

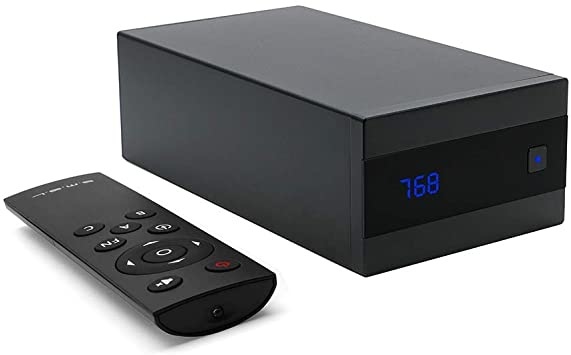

1 x Remote control
1 x USB-A to Micro-USB cable 1.1 m
8 x Silicone feet
Technical Specifications
DAC chip | AKM AK4493 |
THD + N | Unbalanced: 0.0002% |
SNR | Unbalanced: 120dB |
Dynamic range | Line: 118dB |
| USB compatibility | Windows 7, 8, 8.1, 10 Mac OS X10.6 or later Linux |
Line output level | 2Vrms |
Bit depth | USB 1 bit ~ 32 bit Optical/coaxial 16 bit ~ 24 bit |
Sampling rates | USB PCM 44.1 ~ 768 kHz USB DSD 2.28224 ~ 11.2896 MHz Optical/coaxial 32 kHz ~ 192 kHz |

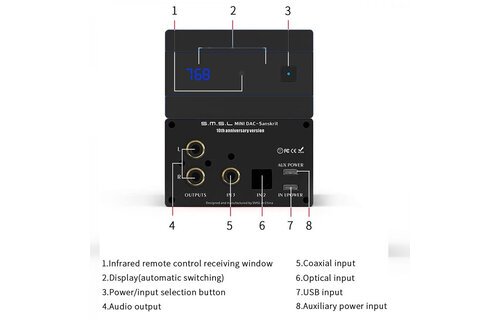

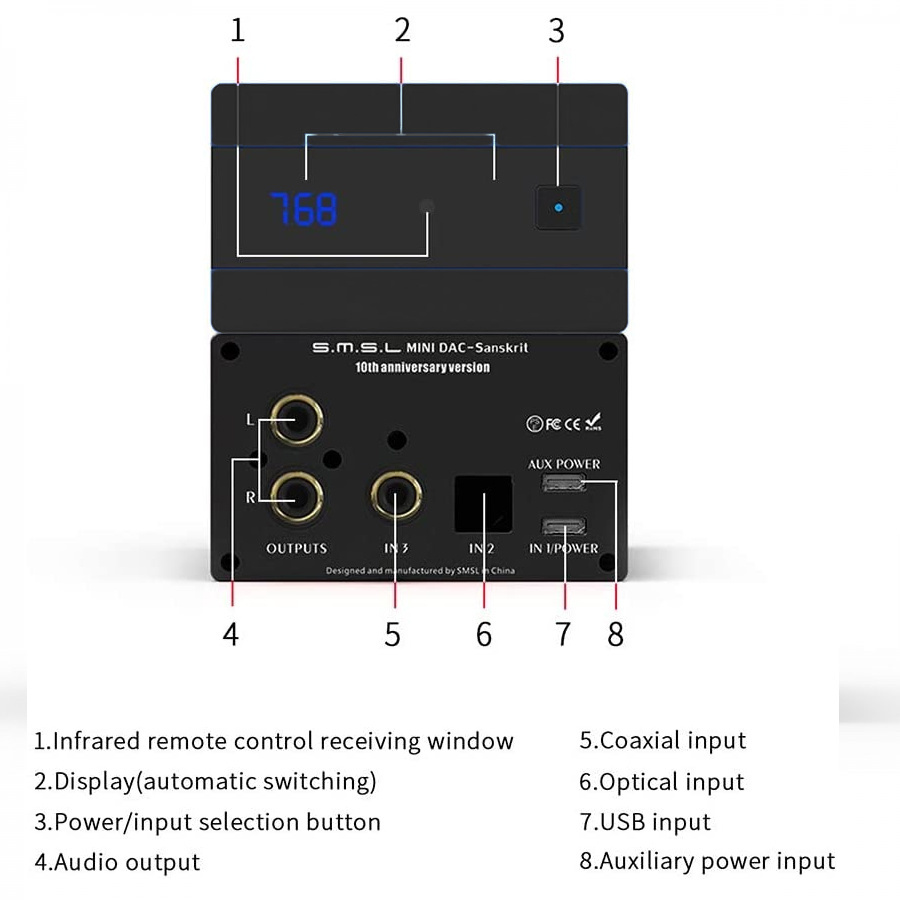

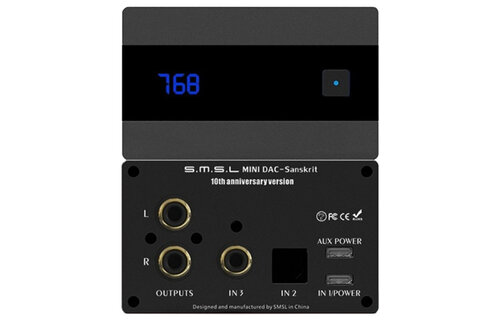

Inputs | USB, Optical, Coaxial |
Outputs | RCA |
Power consumption | 2 W |
Standby power | <0.1 W |
Weight | 320 g |
Size | 75 x 45 x 144 (WxHxD) |
Power supply | Micro-USB 5 VDC (not included) |
