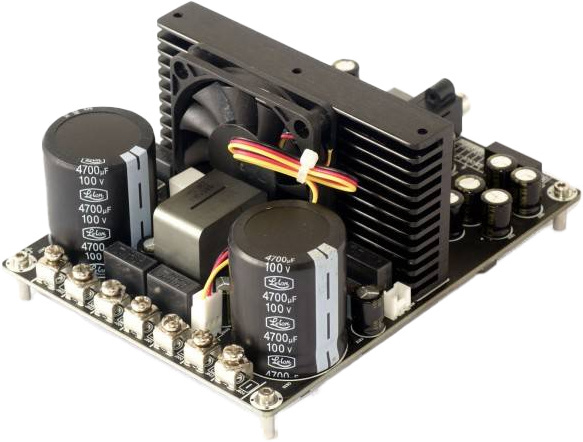

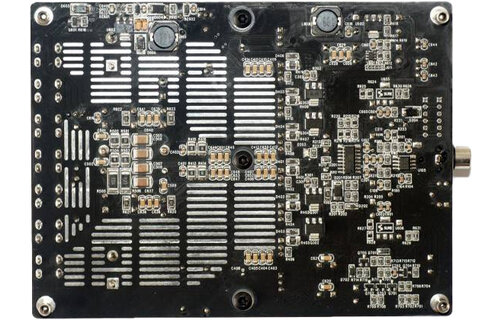

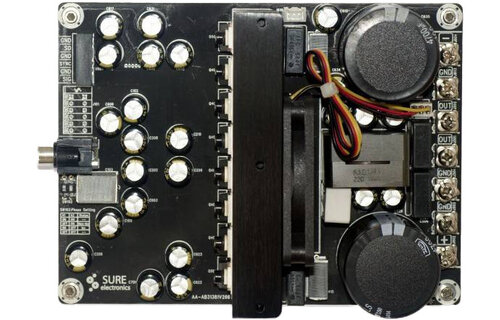

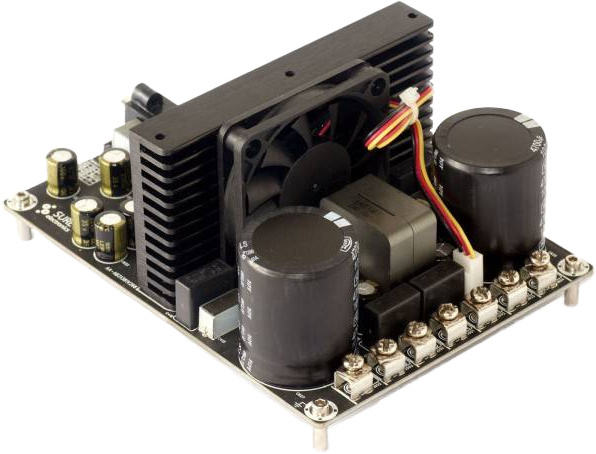

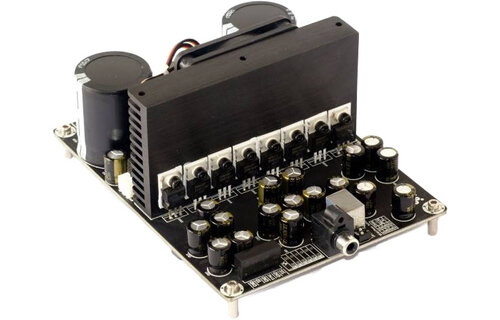

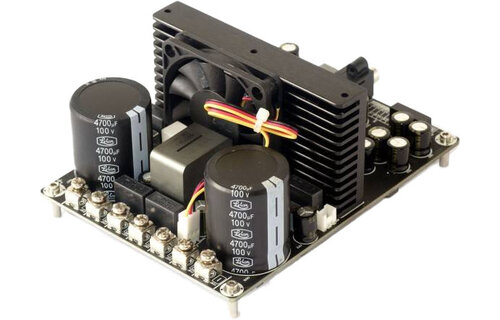

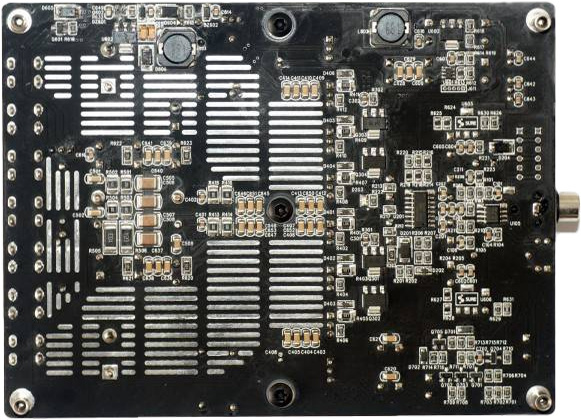

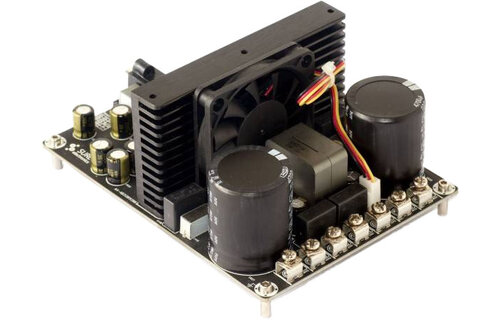

2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.
Highlights
- Self-oscillating half-bridge topology with optional clock synchronization
- Capable of 2000W RMS output @ 2 Ohm continuously
- Requires 55 to 85 VDC power supply
Product Details

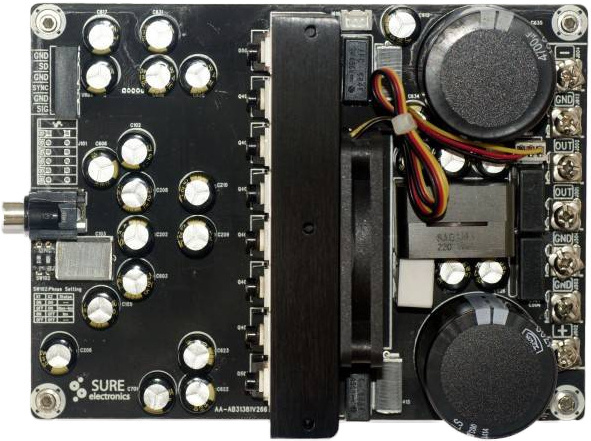

Sure Electronics AA-AB31381 1x2000W Class D Audio Amplifier Board – IRS2092
2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.
Two 55 to 85 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.
Connection:
Typical Performance Graphs:
Frequency response:
Noise Floor:
THD+N VS Frequency:
Thermal Image:
All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.
