HiVi combines a hand treated 1" fabric dome, large non-resonant rear acoustic chamber, and a Ferrofluid cooled voice coil together in the TN25, creating a high performance tweeter with small faceplate for close driver placement.
Highlights
Product Details

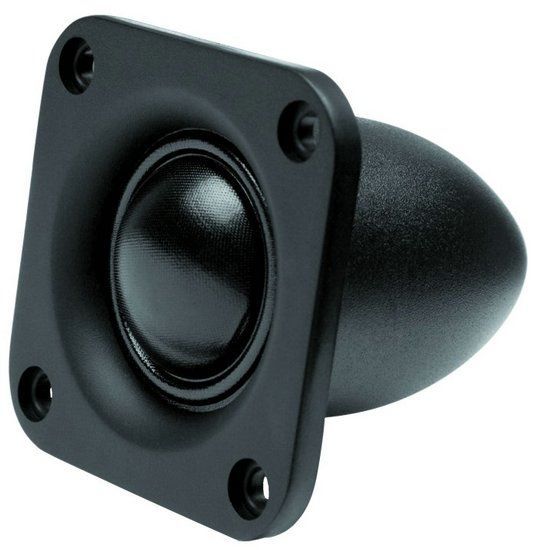

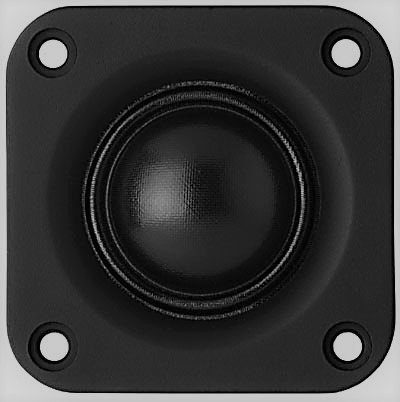

HiVi TN25 Fabric Dome Tweeter
HiVi combines a hand treated 1" fabric dome, large non-resonant rear acoustic chamber, and a Ferrofluid cooled voice coil together in the TN25, creating a high performance tweeter with small faceplate for close driver placement. Self-shielded neodymium motor protects sensitive electronics while focusing the magnetic flux in the gap.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1" |
Impedance | 5 ohms |
Power Handling (RMS) | 20 Watts |
Frequency Response | 2,500 to 22,000 Hz |
Sensitivity | 89 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,500 Hz |
DC Resistance (Re) | 4.60 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 2.13" x 2.13" |
Cutout Diameter | 1.69" |
Depth | 2.50" |
