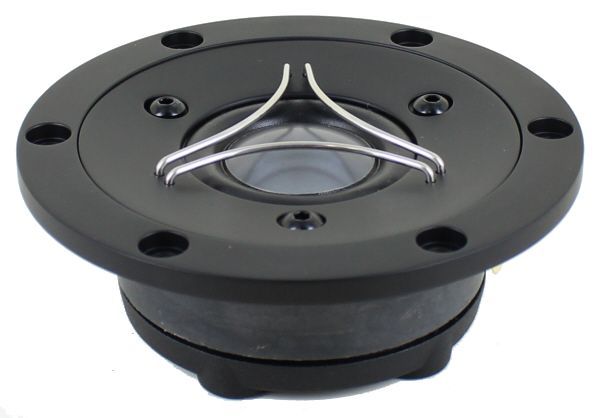

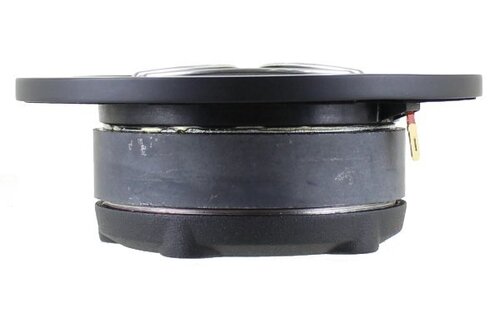

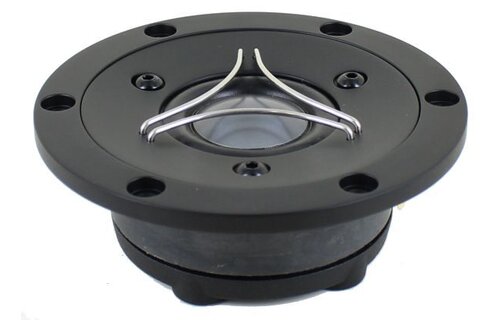

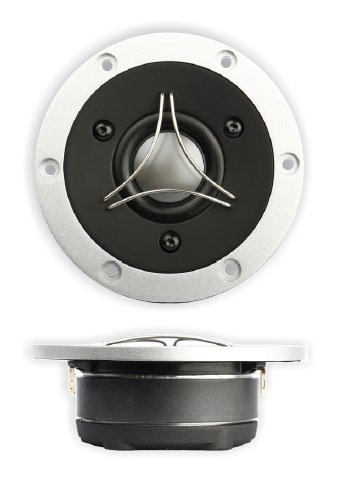

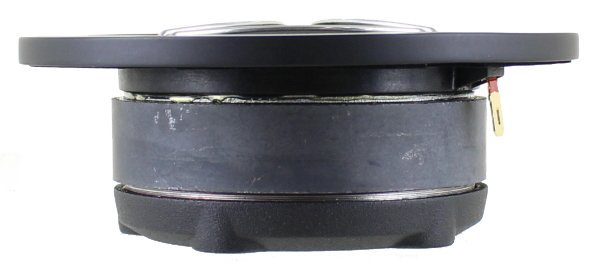

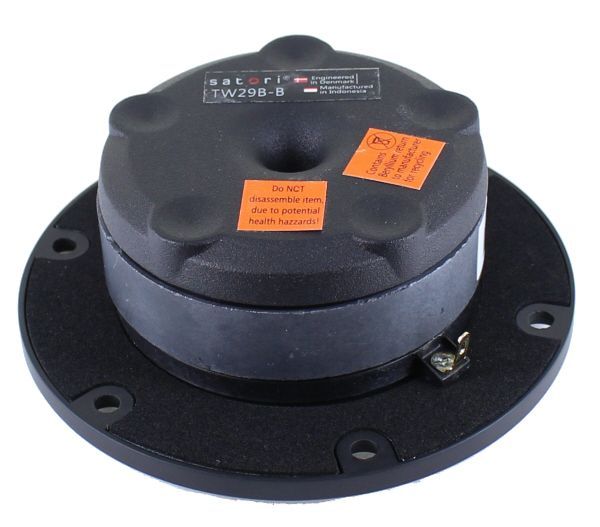

SB Acoustics Satori TW29B Beryllium Dome Tweeter
The new Satori Beryllium dome tweeter with ferrite magnet has arrived! Beryllium is known for its open and spatial sound, often described as holographic. The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing an experience unlike all other dome materials. This new ferrite magnet version has a little less output for a very competitive price.
PRODUCT SPECIFICATIONS
Nominal Diameter | -" |
Power Handling (RMS) | 80 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 92 dB 2.83V/1m |
Voice Coil Diameter | 1.14" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 600 Hz |
DC Resistance (Re) | 3 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 2.9 |
Electromagnetic Q (Qes) | 1.3 |
Total Q (Qts) | 0.9 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | 2 Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.46g |
Maximum Linear Excursion (Xmax) | 0.25 mm |
Surface Area of Cone (Sd) | 9.6 cm2 |
