The AIO4CH from ZOUDIO combines many modern features in one easy to use amplifier module. The integrated DSP provides great audio processing functionality. Due to its high efficiency it puts out a lot more power than its compact size suggests.

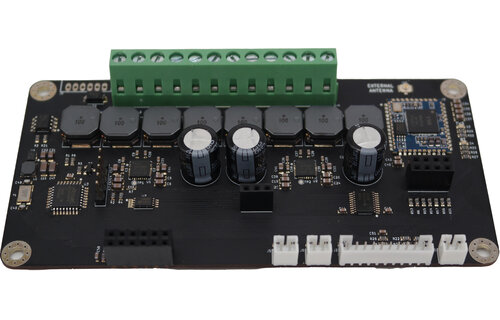

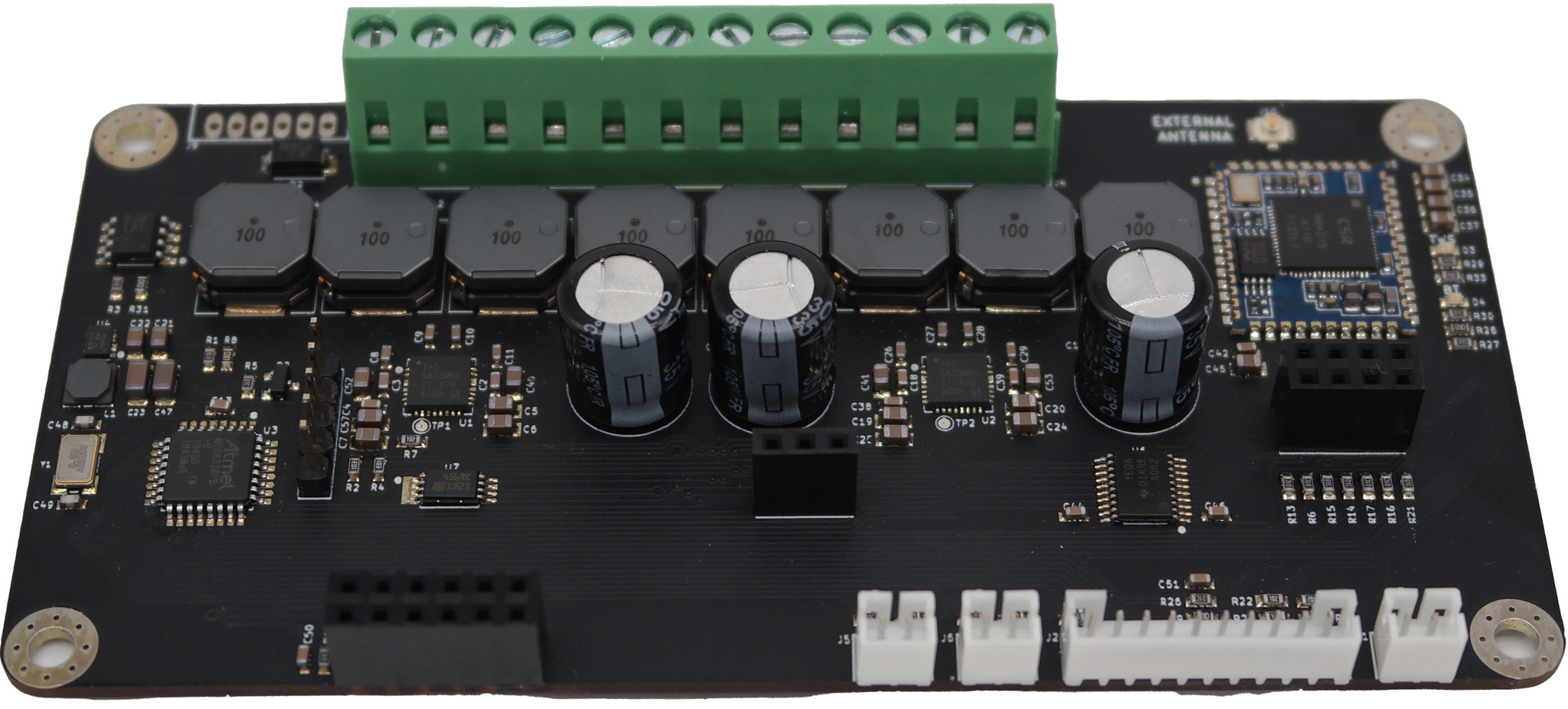

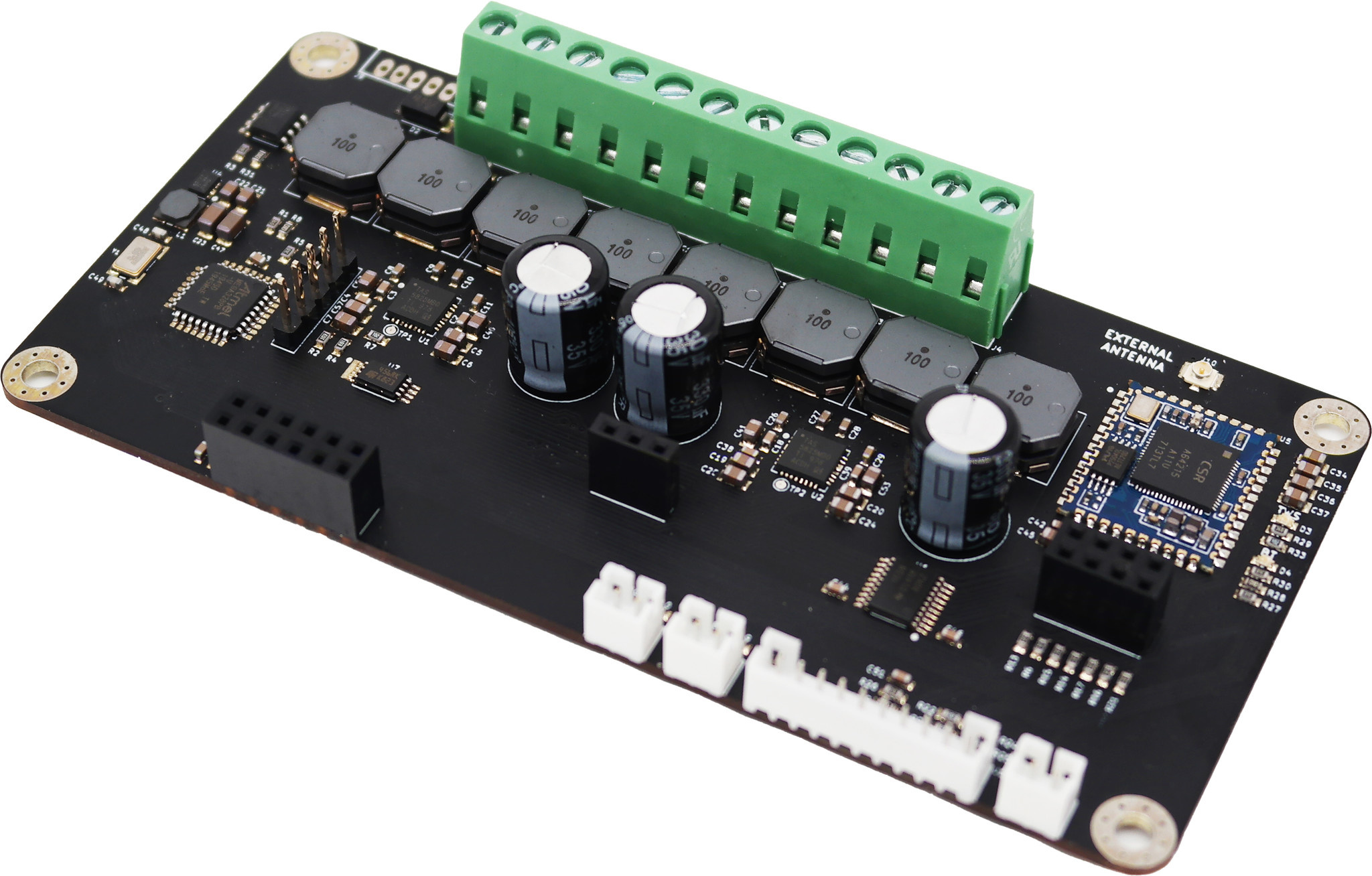

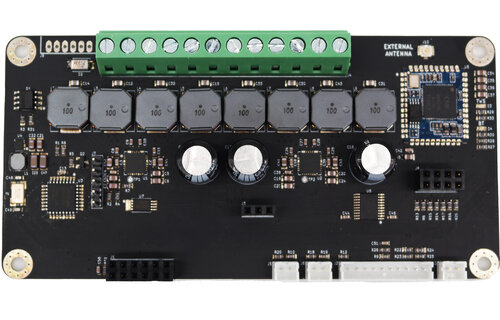

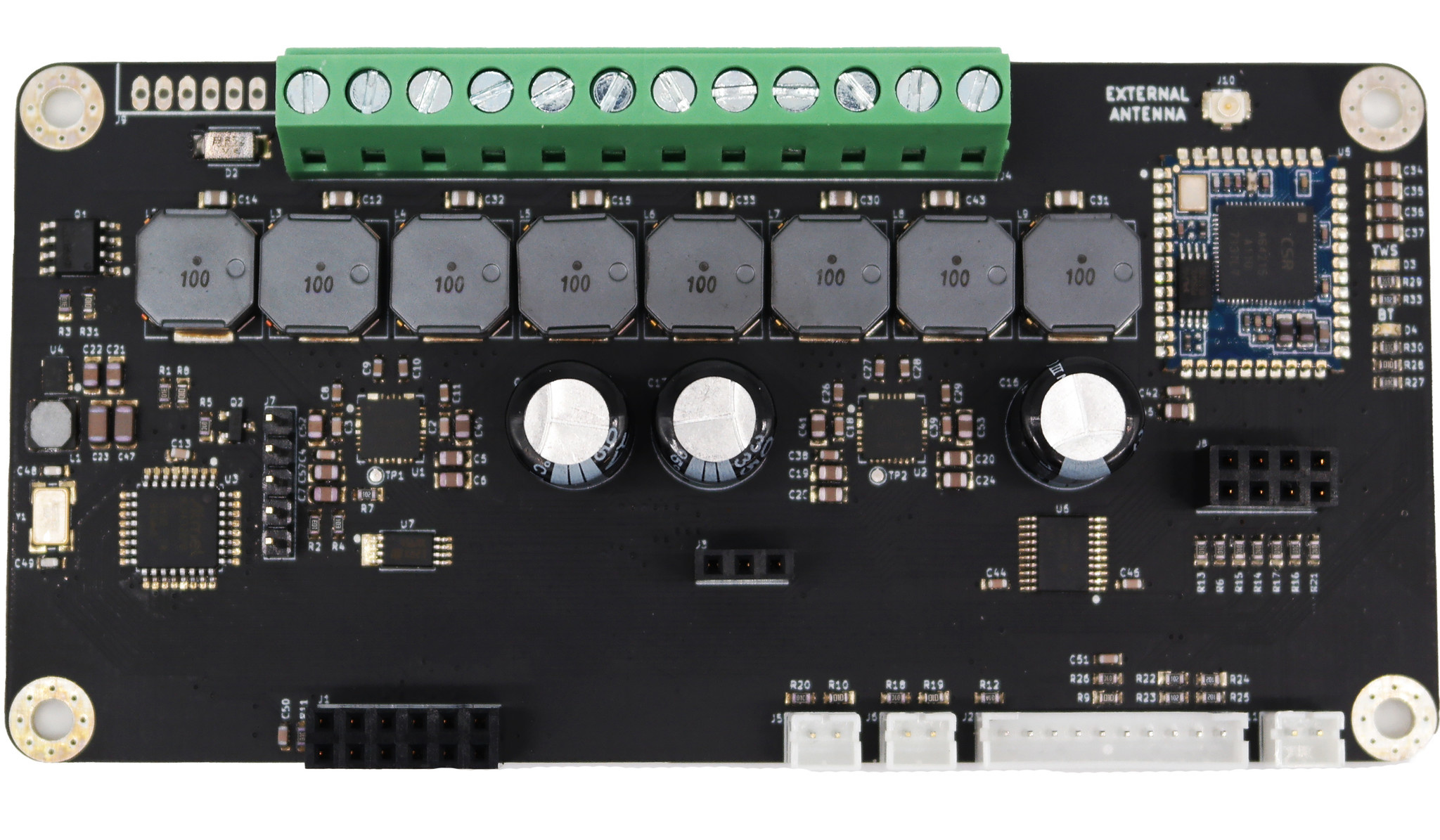

ZOUDIO AIO4CH TAS5825M Amplifier Module
High performance speaker building has never been easier. Modern technology makes a powerful combination of amplification and signal processing possible. The compact form factor allows installation in nearly every speaker. Besides long-range Bluetooth streaming, a wired input is supported. The amplifier accepts a wide range (5 – 24 VDC) of power supply voltages. The low idle power consumption makes it ideal for battery powered applications.

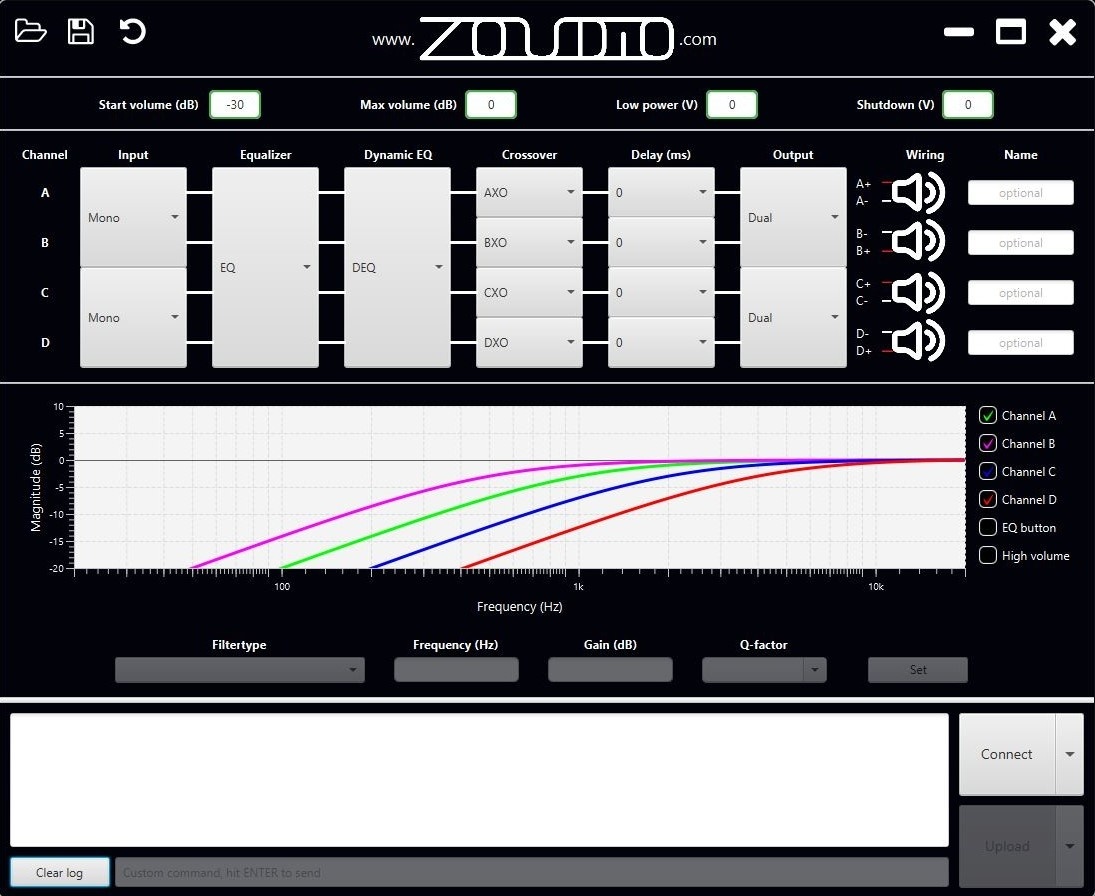

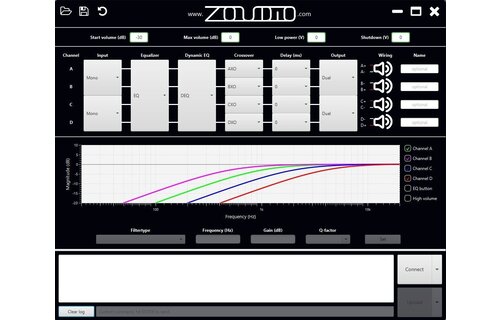

The ZOUDIO AIO4CH delivers high quality sound thanks to two TAS5825M amplifier chips from Texas Instruments. The TAS5825M amplifier chip is the successor of the well-known TPA311x. Modern technology improved performance and adds new useful features. The integrated DSP-core enables audio processing functionality like an input mixer, equalizers, crossover filters and delays. These and more useful settings are accessed and programmed with ZOUDIO AIO4CH Configuration Tool.
Software tool download page here.
Features

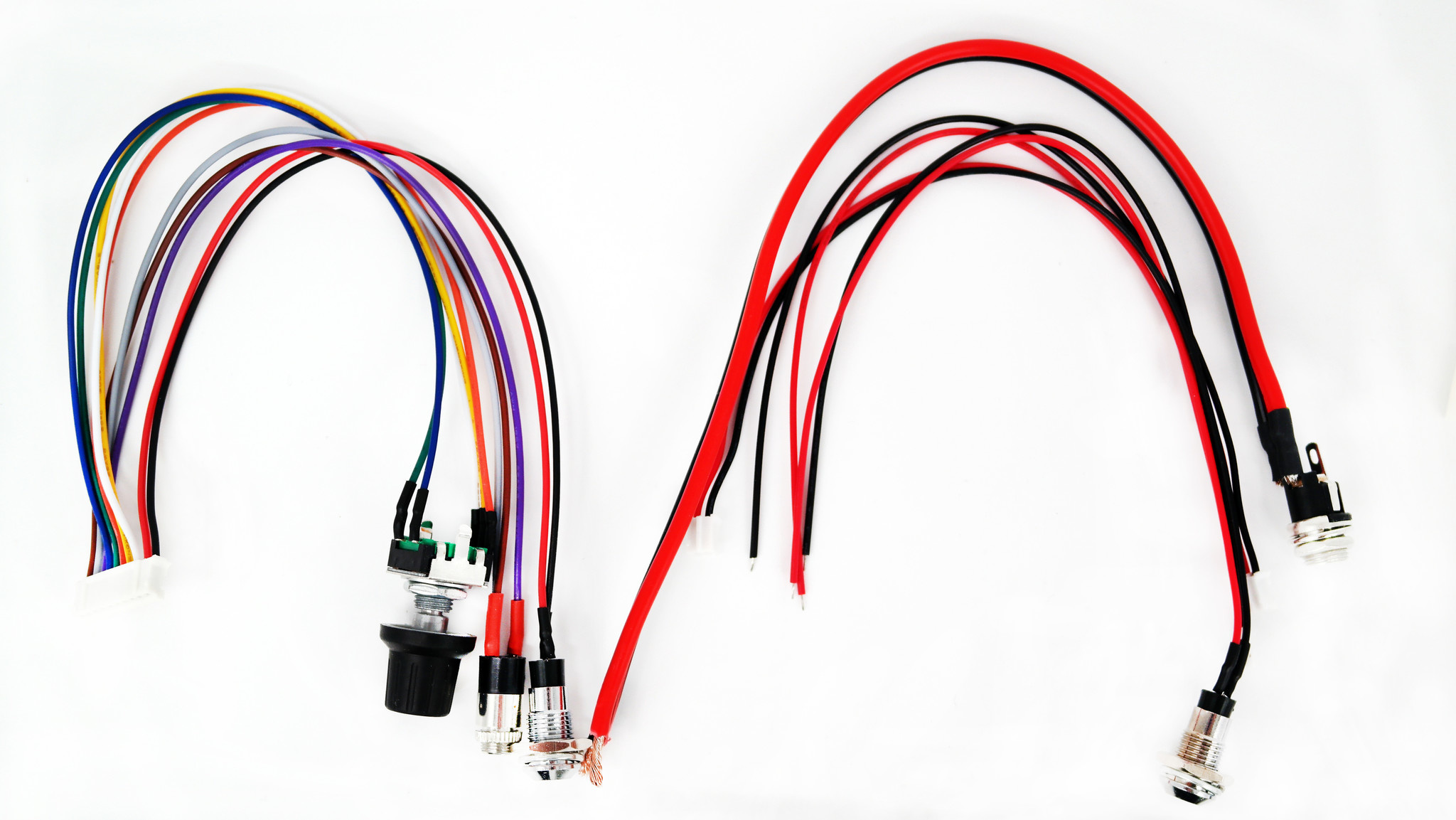

What’s in the box?
