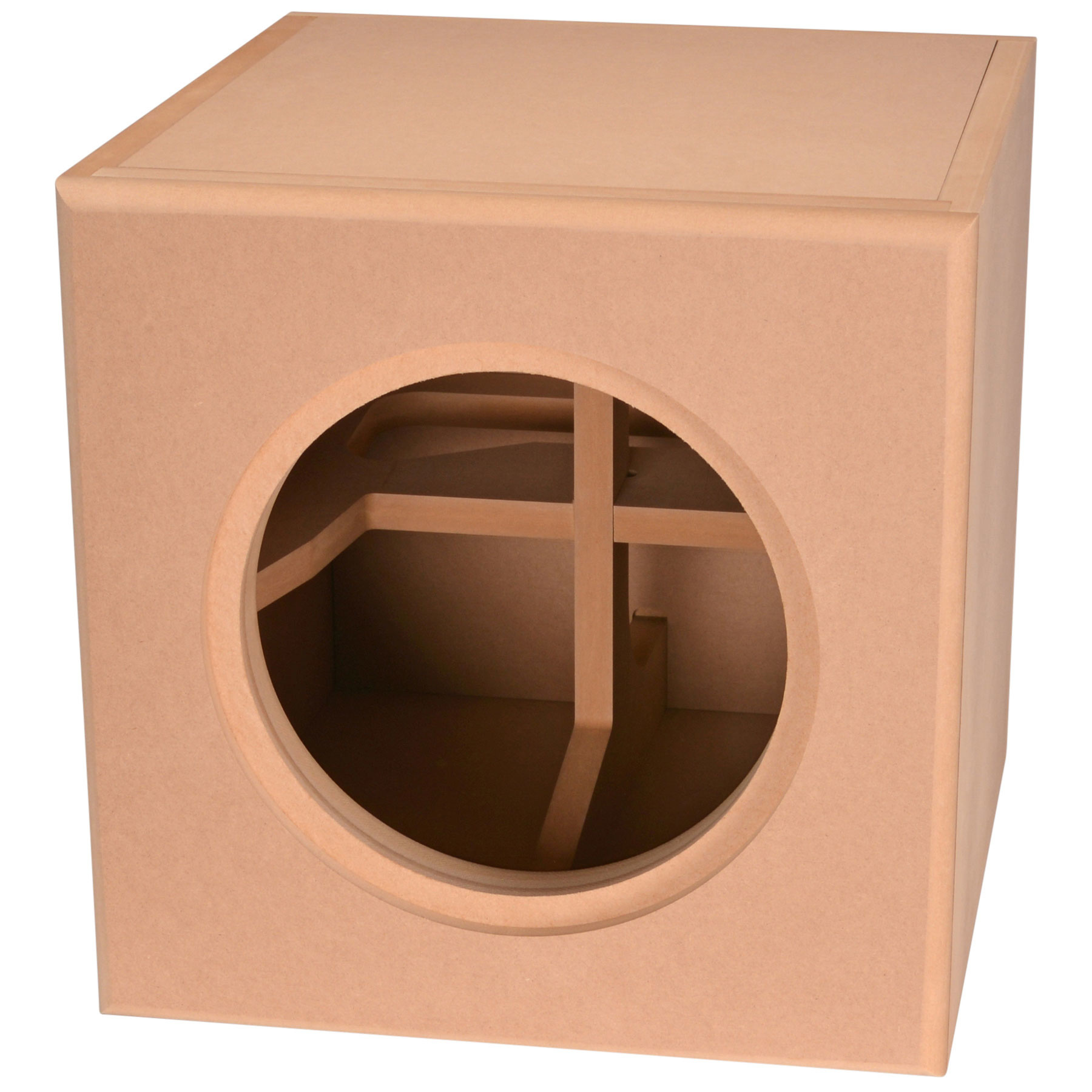

Denovo Audio Knock-Down MDF 1.25 cu. ft. Subwoofer Cabinet for 10" Subwoofers

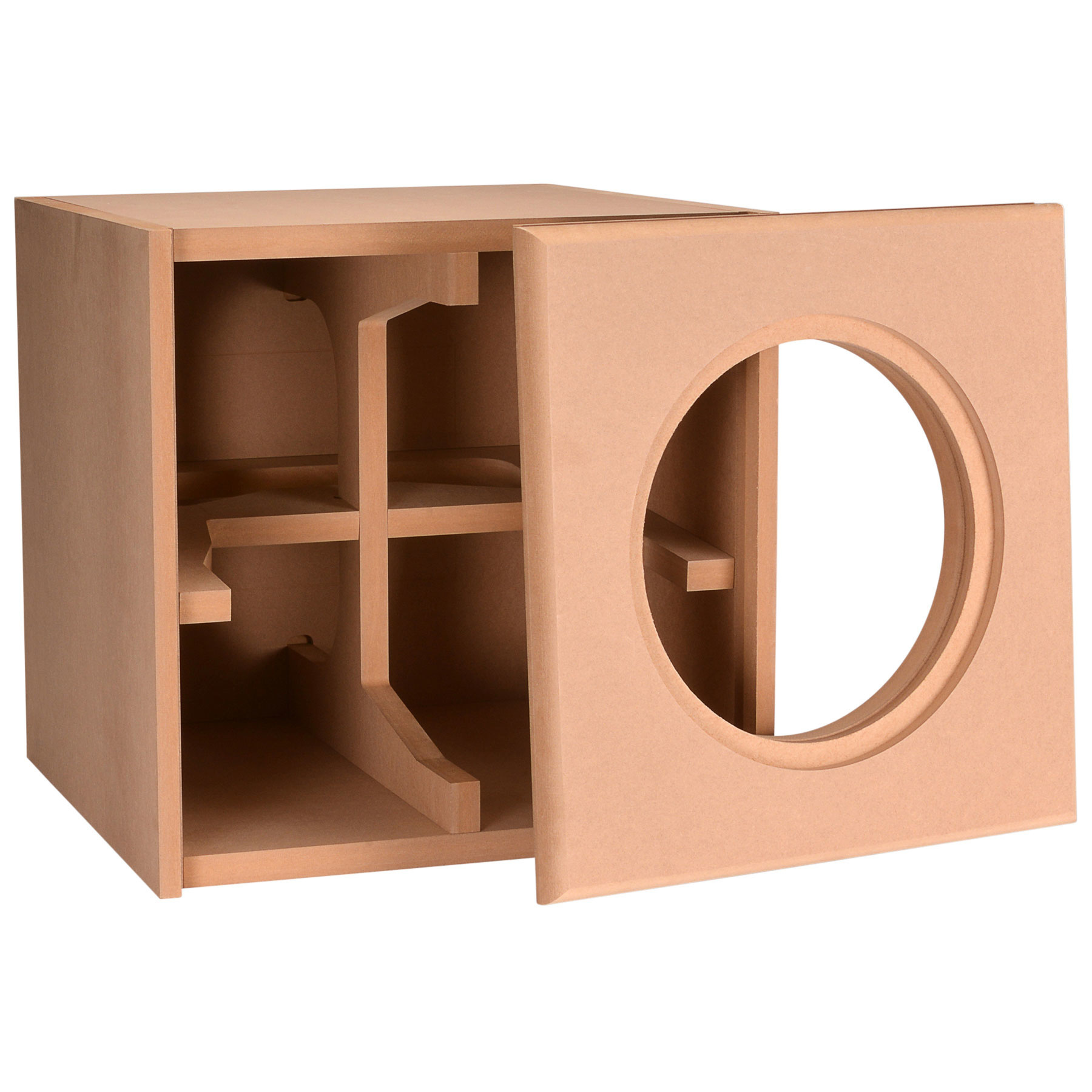

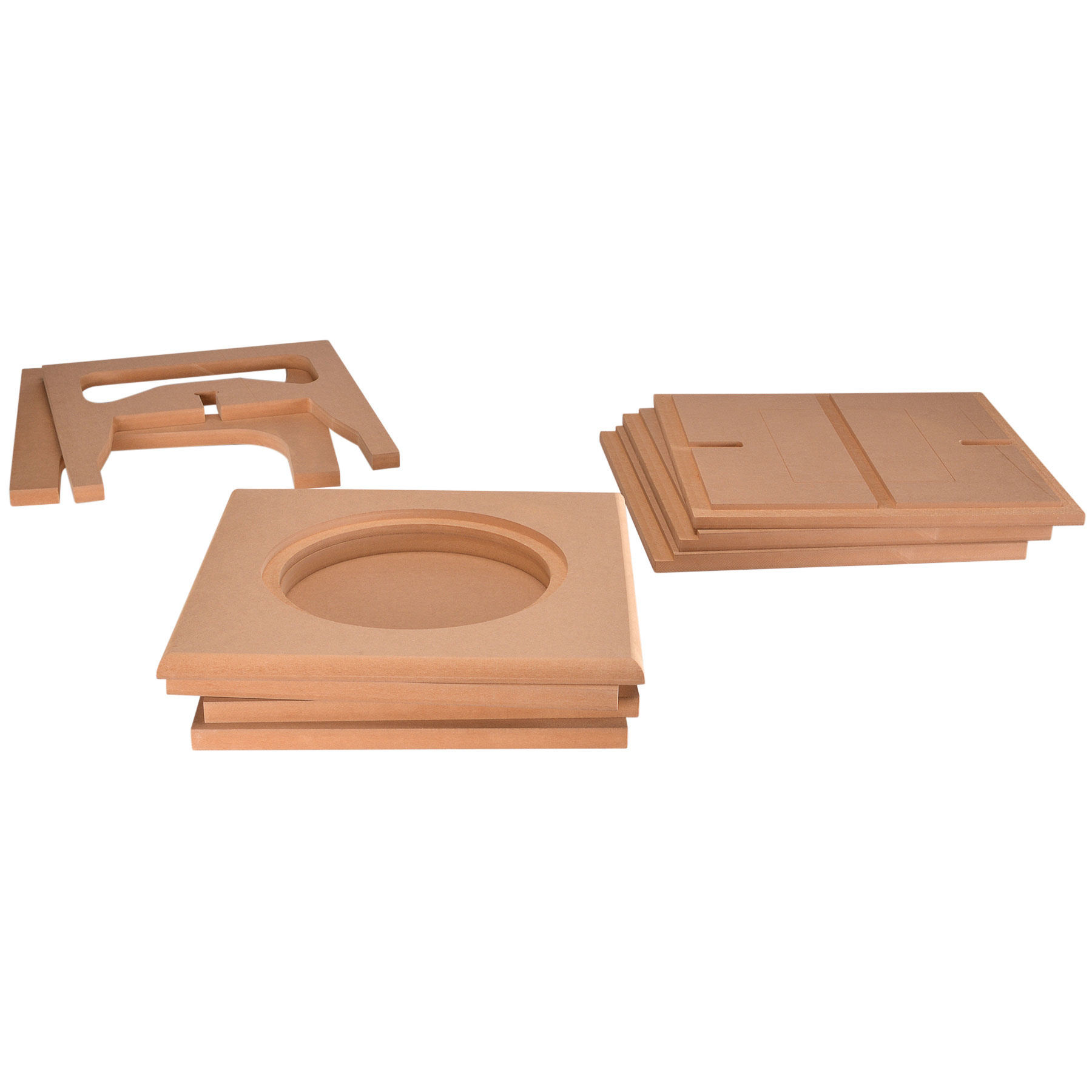

Even the easiest do-it-yourself subwoofer can turn into an arduous project; from uneven cuts, to measuring mistakes. CNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to expensive tools or a woodshop.This particular cabinet is designed to work for most 10" subwoofer drivers with an overall diameter of 10-3/4" through 10-1/4", and a cutout requirement of 9-9/16" or less. During the CNC manufacturing process, rabbets and dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 3/4" rabbeted extensions with rabbeted recesses to perfectly install the first piece of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw and by modifying one of the braces. The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from your 10" subwoofer driver. All that's left to do is finish it to match your décor or paint it to stand out.
Specifications: Panel thickness: 3/4", front baffle is 1-1/2" • Panel material: Medium Density Fiberboard (MDF) • Finished net cabinet volume (subtracting the double thick baffle, bracing, and woofer volume): 1.25 cubic feet • External dimensions: 15.25" H x 15.25" W x 15.25" D • Subwoofer recess: 1/2" • Weight: 35 lbs. • Made in the U.S.A.
