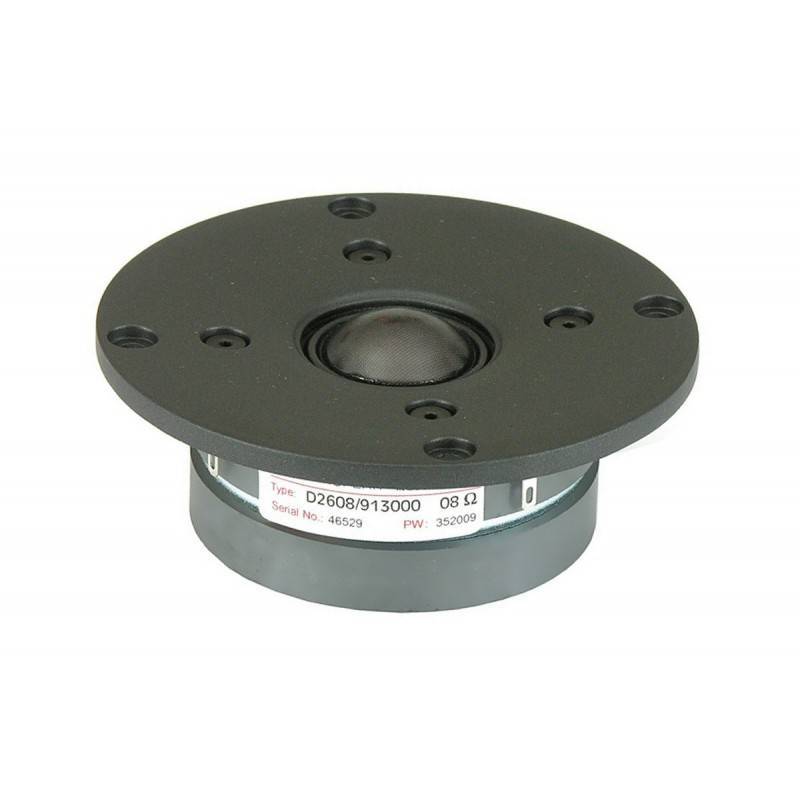

Scan-Speak Discovery D2608/913000 1" Textile Dome Tweeter
The Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the Discovery tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 80 Watts |
Power Handling (max) | 400 Watts |
Impedance | 8 ohms |
Frequency Response | - Hz |
Sensitivity | 91.3 dB 2.83V/1m |
Voice Coil Diameter | 1.02" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 700 Hz |
DC Resistance (Re) | 5.6 ohms |
Voice Coil Inductance (Le) | 0.04 mH |
Mechanical Q (Qms) | 0.51 |
Electromagnetic Q (Qes) | 0.65 |
Total Q (Qts) | 0.29 |
Compliance Equivalent Volume (Vas) | 0.0007 ft.³ |
BL Product (BL) | 2.6 Tm |
Mechanical Compliance of Suspension (Cms) | 0.29 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.18g |
Maximum Linear Excursion (Xmax) | 0.5 mm |
Surface Area of Cone (Sd) | 7 cm2 |
